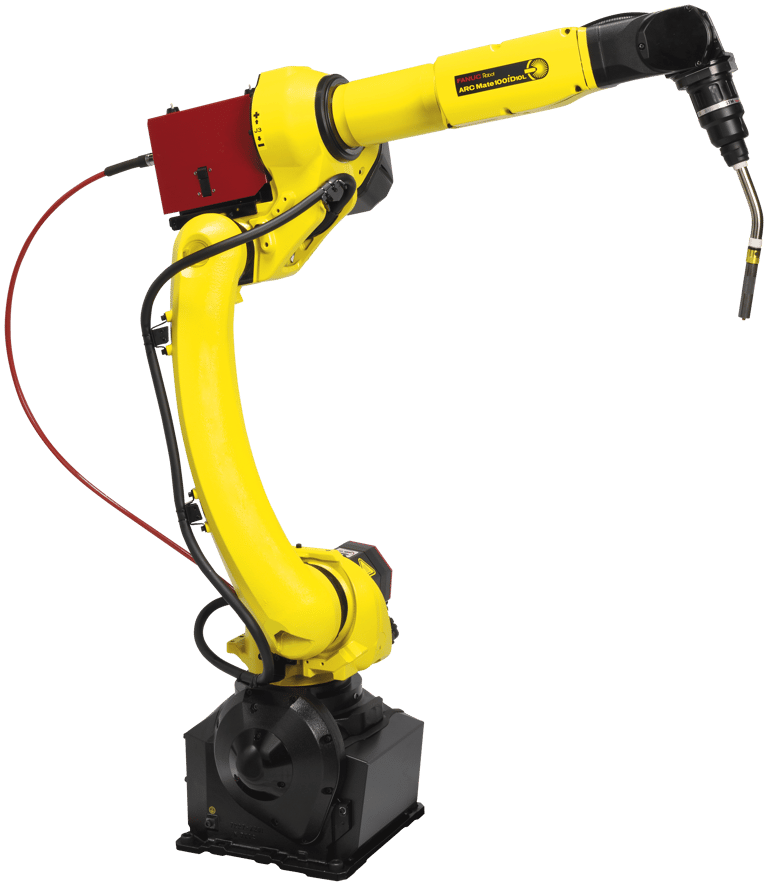

FANUCARC Mate 100iD/10L
El FANUC ARC Mate 100iD/10L es el modelo de brazo largo de la serie ARC Mate 100iD, que ofrece una velocidad de ejes excepcional y la máxima precisión con…
TECHNICAL OVERVIEW
Integration specifications.
- Brand
- FANUC
- Model
- ARC Mate 100iD/10L
- Robot Type
- Welding Robot
- Payload
- 10 kg
- Reach
- 1636 mm
- Axes
- 6
- Repeatability
- ±0.03 mm
- Mounting Method
- Contact us for detailed specification
- Controller
- R-30iB Plus
- Protection Rating
- Contact us for detailed specification
- Application
- Welding
Additional Specification
Controller Series: R-30iB Plus Axes: 6 Max Payload: 10 kg Mounting Method: Floor / Angle / Inverted Repeatability: ±0.03 mm Reach: 1636 mm Mechanical Weight: 150 kg Average Power Consumption: 1 kW J1 Motion Range: 340° J2 Motion Range: 235° J3 Motion Range: 455° J4 Motion Range: 380° J5 Motion Range: 360° J6 Motion Range: 900° J1 Speed: 260°/s J2 Speed: 240°/s J3 Speed: 260°/s J4 Speed: 430°/s J5 Speed: 450°/s J6 Speed: 720°/s J4 Moment / Inertia: 22/.65 J5 Moment / Inertia: 22/.65 J6 Moment / Inertia: 9.8/.17 Body Standard / Optional: IP54 / IP55 Wrist & J3 Arm: IP67
BEST FOR
Recommended integration applications.
Welding
Selection note
Final robot selection depends on process, payload, reach, cycle time, environment, tooling and safety requirements. Product brands shown are selectable integration platforms.
