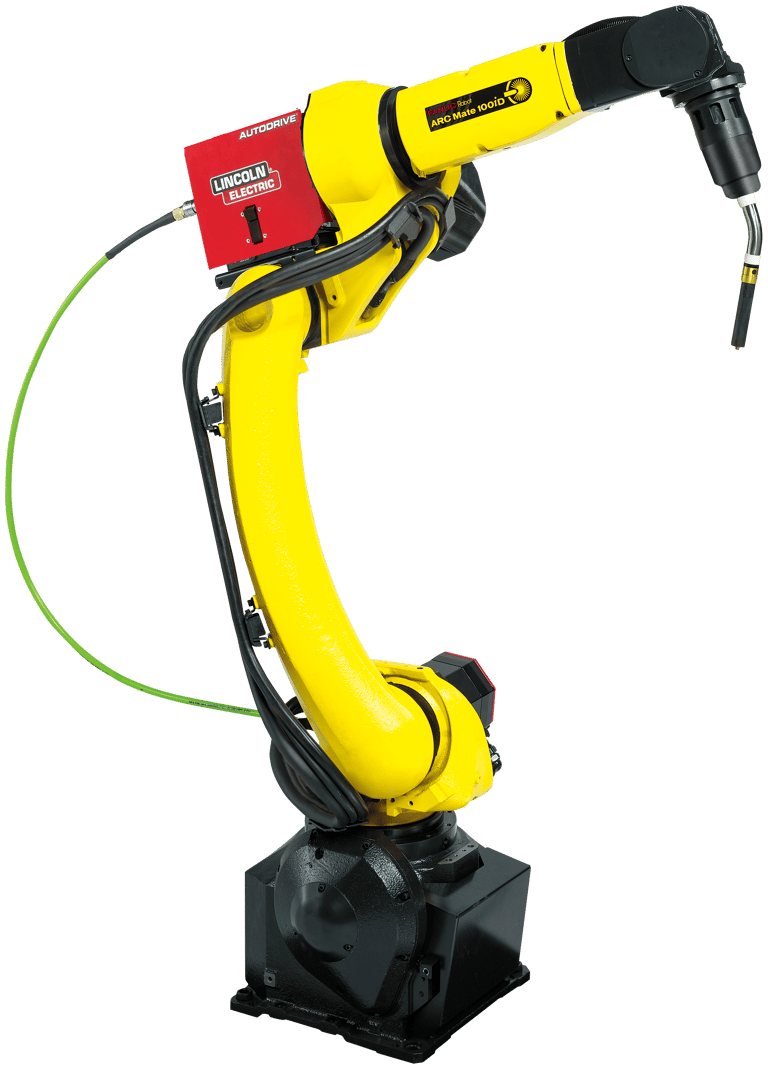

FANUCARC Mate 100iD
El FANUC ARC Mate 100iD es un robot de soldadura por arco compacto de 6 ejes que destaca por sus avances en productividad y sus rápidos tiempos de…
TECHNICAL OVERVIEW
Integration specifications.
- Brand
- FANUC
- Model
- ARC Mate 100iD
- Robot Type
- Welding Robot
- Payload
- 12 kg
- Reach
- 1441 mm
- Axes
- 6
- Repeatability
- ±0.02 mm
- Mounting Method
- Contact us for detailed specification
- Controller
- R-30iB Plus
- Protection Rating
- Contact us for detailed specification
- Application
- Welding
Additional Specification
Controller Series: R-30iB Plus Axes: 6 Max Payload: 12 kg Mounting Method: Floor / Angle / Inverted Repeatability: ±0.02 mm Reach: 1441 mm Footprint: 343 mm x 343 mm Mechanical Weight: 130 kg Average Power Consumption: 1 kW J1 Motion Range: 340° J2 Motion Range: 235° J3 Motion Range: 450° J4 Motion Range: 380° J5 Motion Range: 380° J6 Motion Range: 900° J1 Speed: 240°/s J2 Speed: 240°/s J3 Speed: 230°/s J4 Speed: 430°/s J5 Speed: 430°/s J6 Speed: 650°/s J4 Moment / Inertia: 26/.9 J5 Moment / Inertia: 26/.9 J6 Moment / Inertia: 11/.3 Body Standard / Optional: IP54 / IP55 Wrist & J3 Arm: IP67
BEST FOR
Recommended integration applications.
Welding
Selection note
Final robot selection depends on process, payload, reach, cycle time, environment, tooling and safety requirements. Product brands shown are selectable integration platforms.
