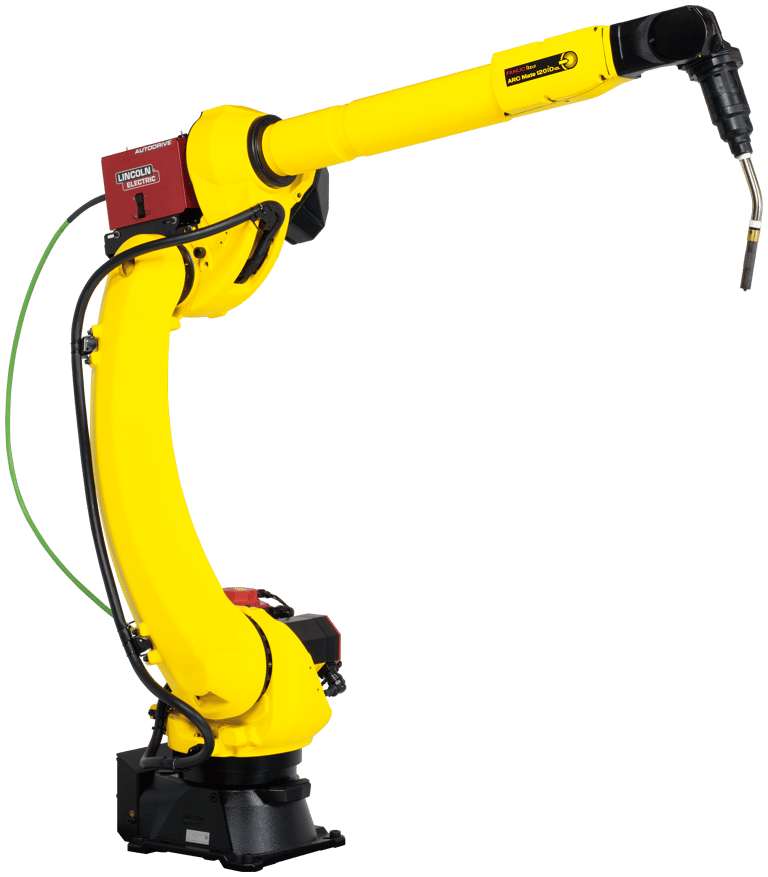

FANUCARC Mate 120iD/12L
The FANUC ARC Mate 100iD/12L is the long arm model of the ARC Mate 100iD series featuring outstanding axes speed and ultimate precision with extra reach.
TECHNICAL OVERVIEW
Integration specifications.
- Brand
- FANUC
- Model
- ARC Mate 120iD/12L
- Robot Type
- Welding Robot
- Payload
- 12 kg
- Reach
- 2272 mm
- Axes
- 6
- Repeatability
- ±0.03 mm
- Mounting Method
- Contact us for detailed specification
- Controller
- R-30iB Plus
- Protection Rating
- Contact us for detailed specification
- Application
- Welding
Additional Specification
Controller Series: R-30iB Plus Axes: 6 Max Payload: 12 kg Mounting Method: Floor / Angle / Inverted Repeatability: ±0.03 mm Reach: 2272 mm Mechanical Weight: 250 kg Average Power Consumption: 1 kW J1 Motion Range: 340° J2 Motion Range: 260° J3 Motion Range: 475° J4 Motion Range: 400° J5 Motion Range: 360° J6 Motion Range: 900° J1 Speed: 210°/s J2 Speed: 210°/s J3 Speed: 265°/s J4 Speed: 420°/s J5 Speed: 450°/s J6 Speed: 720°/s J4 Moment / Inertia: 22/.65 J5 Moment / Inertia: 22/.65 J6 Moment / Inertia: 9.8/.17 Body Standard / Optional: IP54 / IP55 Wrist & J3 Arm: IP67
BEST FOR
Recommended integration applications.
Welding
Selection note
Final robot selection depends on process, payload, reach, cycle time, environment, tooling and safety requirements. Product brands shown are selectable integration platforms.
