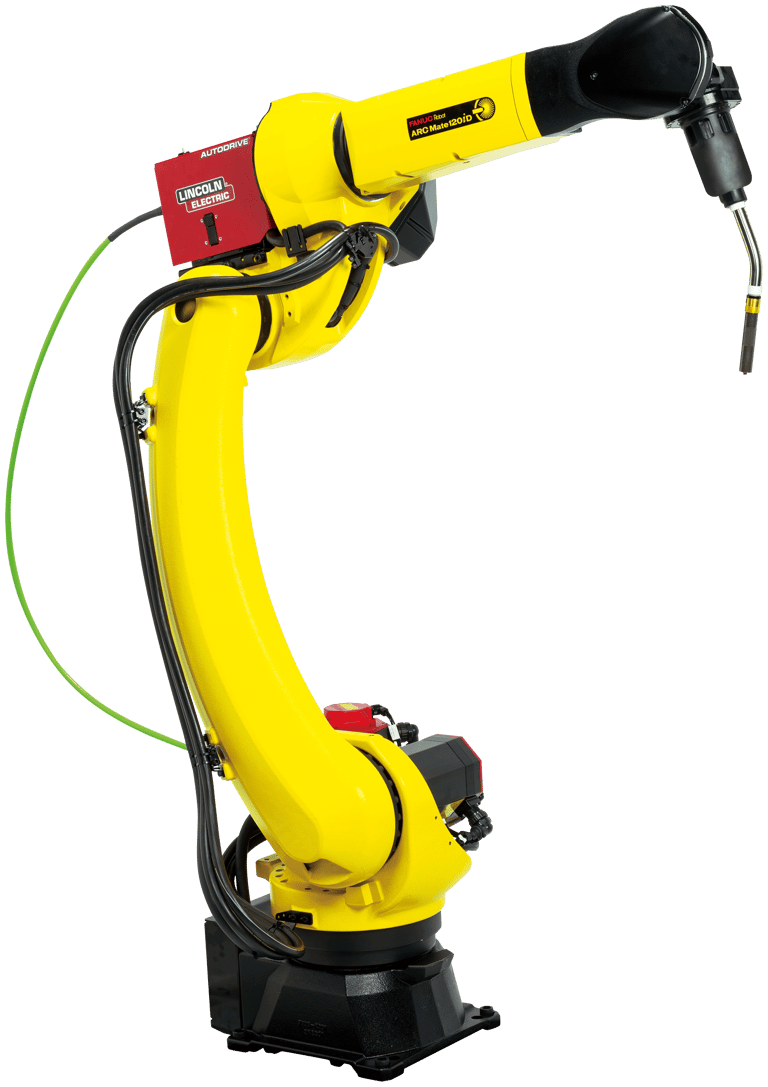

FANUCARC Mate 120iD
The FANUC ARC Mate 120iD is an ideal all-round welding robot that maximizes productivity and enhances your profitability. Operating costs are low, and…
TECHNICAL OVERVIEW
Integration specifications.
- Brand
- FANUC
- Model
- ARC Mate 120iD
- Robot Type
- Welding Robot
- Payload
- 25 kg
- Reach
- 1831 mm
- Axes
- 6
- Repeatability
- ±0.02 mm
- Mounting Method
- Contact us for detailed specification
- Controller
- R-30iB Plus
- Protection Rating
- Contact us for detailed specification
- Application
- Welding
Additional Specification
Controller Series: R-30iB Plus Axes: 6 Max Payload: 25 kg Mounting Method: Floor / Angle / Inverted Repeatability: ±0.02 mm Reach: 1831 mm Mechanical Weight: 250 kg Average Power Consumption: 1 kW J1 Motion Range: 340° J2 Motion Range: 260° J3 Motion Range: 458° J4 Motion Range: 400° J5 Motion Range: 360° J6 Motion Range: 900° J1 Speed: 210°/s J2 Speed: 210°/s J3 Speed: 265°/s J4 Speed: 420°/s J5 Speed: 420°/s J6 Speed: 720°/s J4 Moment / Inertia: 52/2.4 J5 Moment / Inertia: 52/2.4 J6 Moment / Inertia: 32/1.2 Body Standard / Optional: IP54 Wrist & J3 Arm: IP67
BEST FOR
Recommended integration applications.
Welding
Selection note
Final robot selection depends on process, payload, reach, cycle time, environment, tooling and safety requirements. Product brands shown are selectable integration platforms.
