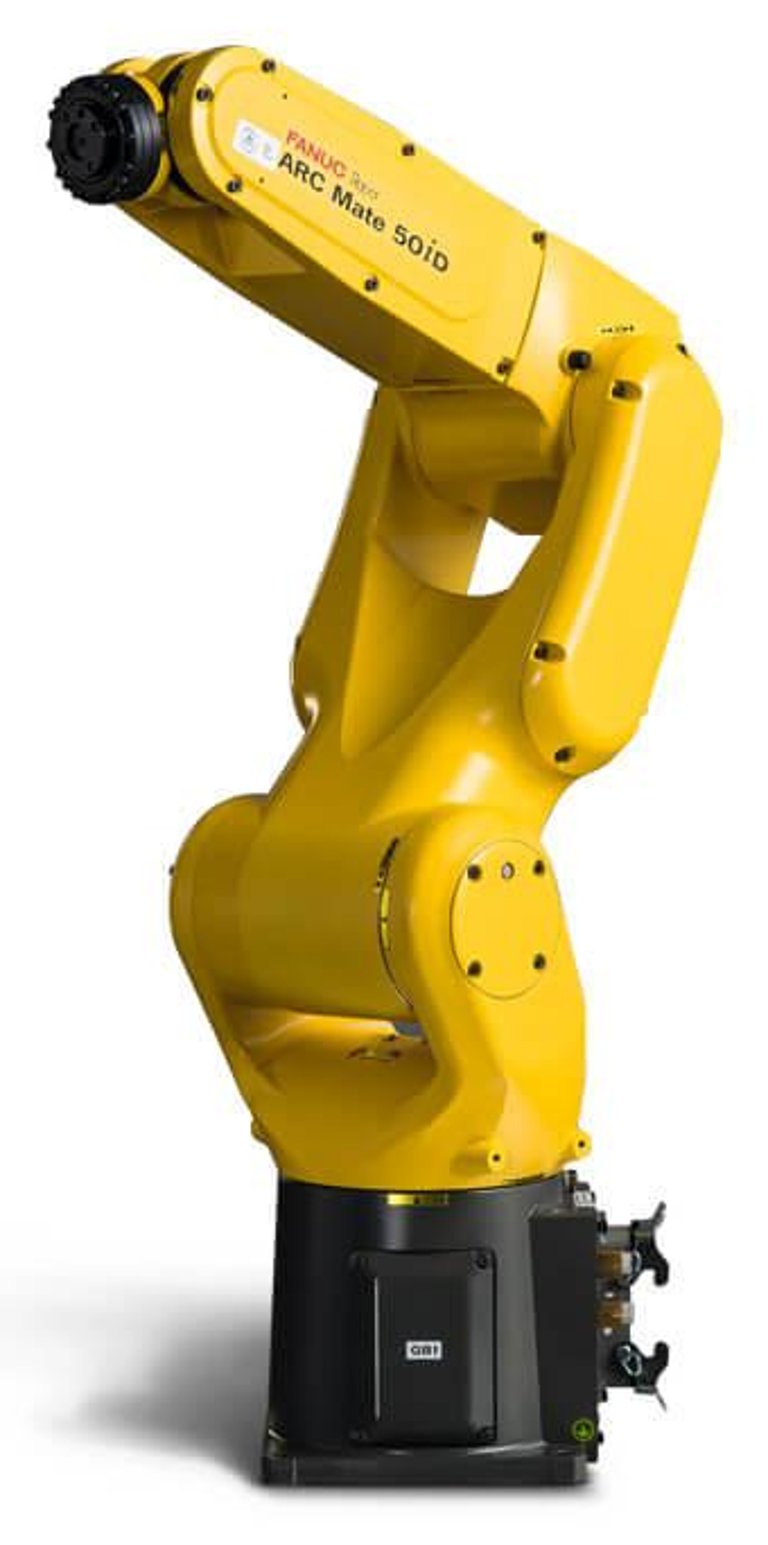

FANUCARC Mate 50iD
FANUC ARC Mate 50iD is a compact, high-speed arc welding robot with a 7 kg payload and 911 mm reach, ideal for precise welding in tight workspaces.
TECHNICAL OVERVIEW
Integration specifications.
- Brand
- FANUC
- Model
- ARC Mate 50iD
- Robot Type
- Welding Robot
- Payload
- 7 kg
- Reach
- 717 mm
- Axes
- 6
- Repeatability
- ±0.018 mm
- Mounting Method
- Contact us for detailed specification
- Controller
- R-30iB Plus
- Protection Rating
- Contact us for detailed specification
- Application
- Welding
Additional Specification
Controller Series: R-30iB Plus Axes: 6 Max Payload: 7 kg Mounting Method: Floor / Angle / Inverted Repeatability: ±0.018 mm Reach: 717 mm Mechanical Weight: 25 kg Average Power Consumption: 1 kW J1 Motion Range: 360° J2 Motion Range: 245° J3 Motion Range: 420° J4 Motion Range: 380° J5 Motion Range: 250° J6 Motion Range: 720° J1 Speed: 450°/s J2 Speed: 380°/s J3 Speed: 520°/s J4 Speed: 550°/s J5 Speed: 545°/s J6 Speed: 1000°/s J4 Moment / Inertia: 16.6/0.47 J5 Moment / Inertia: 16.6/0.47 J6 Moment / Inertia: 9.4/0.15 Body Standard / Optional: IP67 / IP69K Wrist & J3 Arm: IP67 / IP69K
BEST FOR
Recommended integration applications.
Welding
Selection note
Final robot selection depends on process, payload, reach, cycle time, environment, tooling and safety requirements. Product brands shown are selectable integration platforms.
