CR-4iA

Compact 6-axis collaborative robot with 4kg payload, ideal for tight spaces, safe human interaction, and efficient task automation.

Request Integration Quote Official Product Link

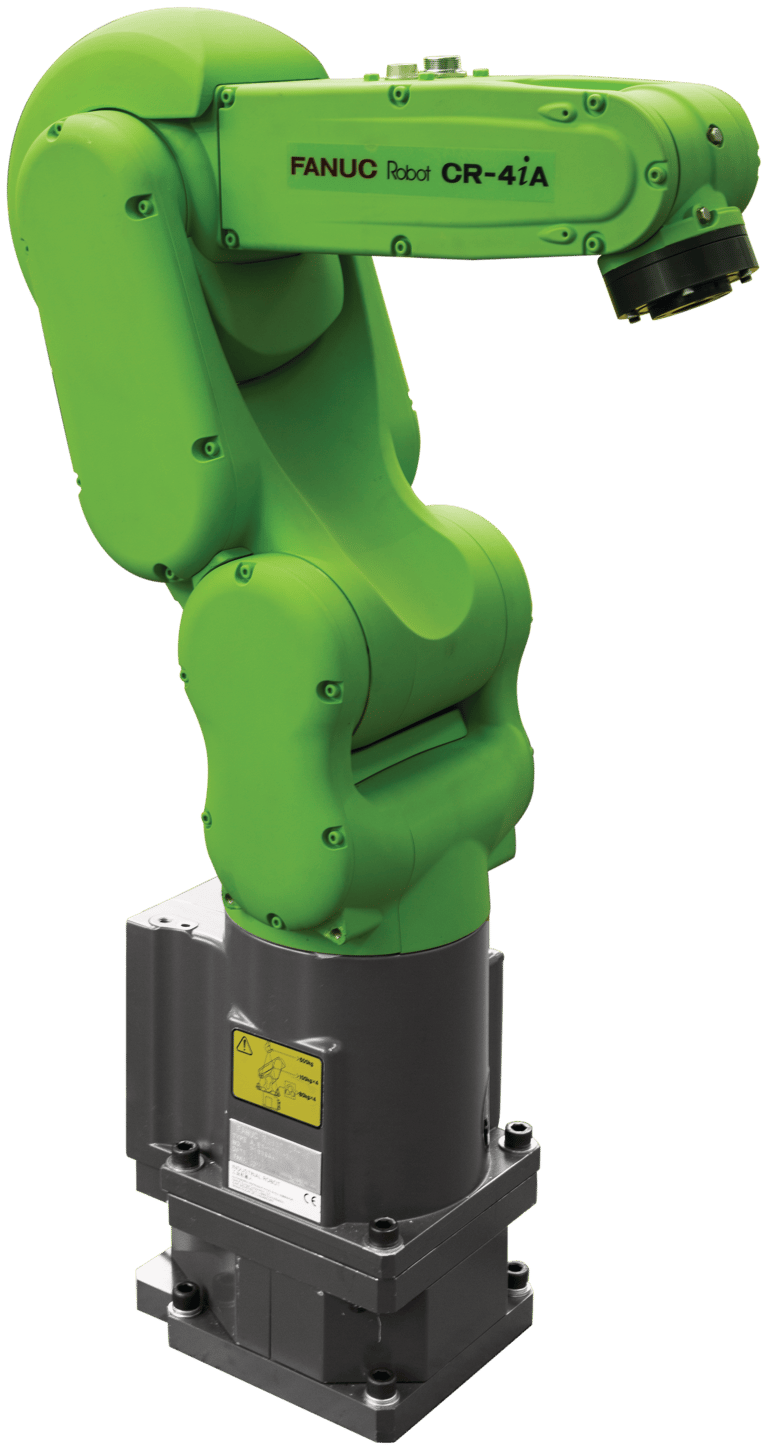

FANUC CR-4iA robot for automation integration

Image source

TECHNICAL OVERVIEW

Integration specifications.

Brand: FANUC
Model: CR-4iA
Robot Type: Articulated Robot
Payload: 4 kg
Reach: 550 mm
Axes: 6
Repeatability: ±0.01 mm
Mounting Method: Contact us for detailed specification
Controller: R-30iB Plus
Protection Rating: Contact us for detailed specification
Application: Handling, Machine Tending

Additional Specification

Controller Series: R-30iB Plus
Axes: 6
Max Payload: 4 kg
Mounting Method: Floor / Angle / Inverted
Repeatability: ±0.01 mm
Reach: 550 mm
Mechanical Weight: 48 kg
Average Power Consumption: 1 kW
J1 Motion Range: 340°
J2 Motion Range: 150°
J3 Motion Range: 354°
J4 Motion Range: 380°
J5 Motion Range: 180°
J6 Motion Range: 720°
J1 Speed: 250°/s
J2 Speed: 250°/s
J3 Speed: 250°/s
J4 Speed: 250°/s
J5 Speed: 250°/s
J6 Speed: 250°/s
J4 Moment / Inertia: 8.86/2
J5 Moment / Inertia: 8.86/2
J6 Moment / Inertia: 4.9/.67
Body Standard / Optional: IP67
Wrist & J3 Arm: IP67

BEST FOR

Recommended integration applications.

Handling, Machine Tending

Selection note

Final robot selection depends on process, payload, reach, cycle time, environment, tooling and safety requirements. Product brands shown are selectable integration platforms.
