CR-7iA

CR-7iA collaborative robot handles up to 7 kg, ideal for tight spaces, machine tending, and safe, efficient material handling.

Request Integration Quote Official Product Link

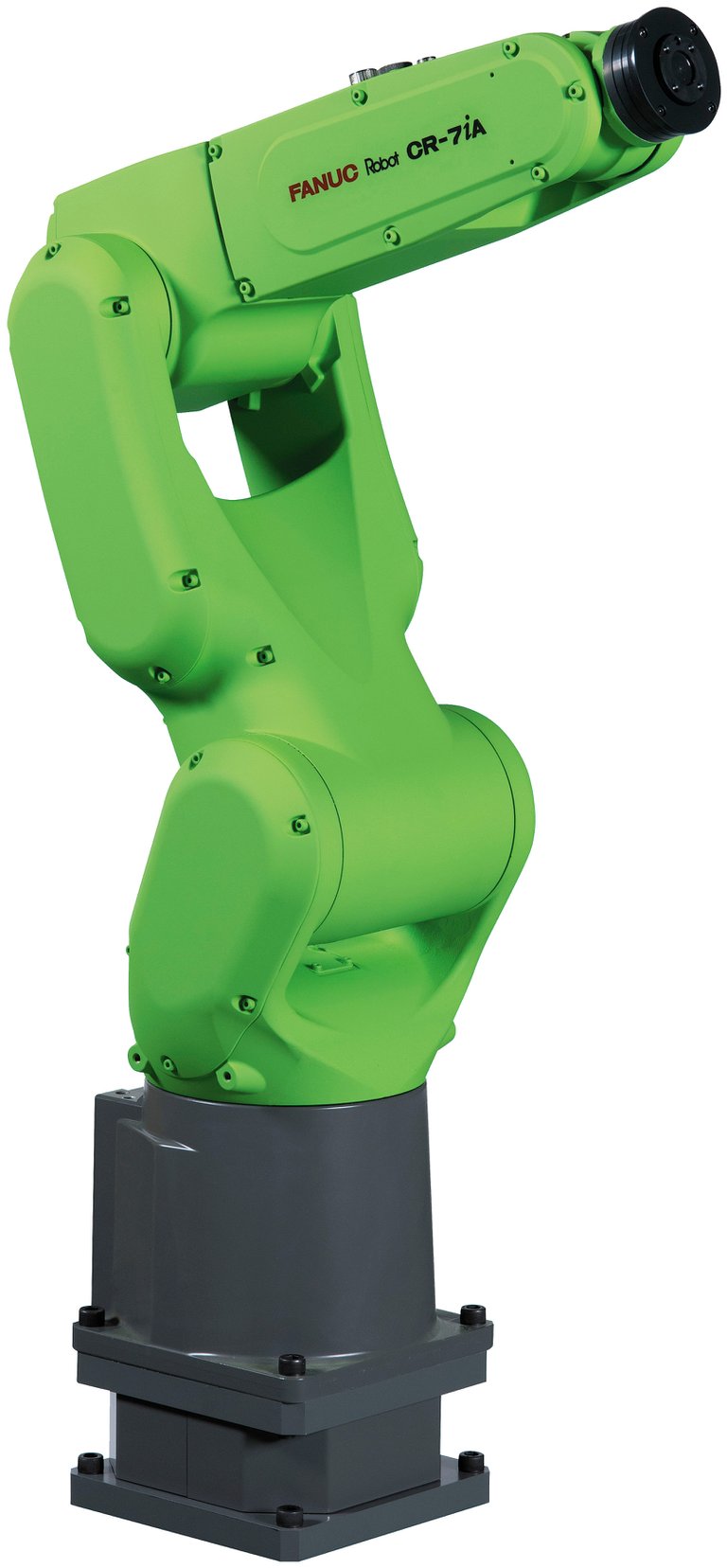

FANUC CR-7iA robot for automation integration

Image source

TECHNICAL OVERVIEW

Integration specifications.

Brand: FANUC
Model: CR-7iA
Robot Type: Articulated Robot
Payload: 7 kg
Reach: 717 mm
Axes: 6
Repeatability: ±0.01 mm
Mounting Method: Contact us for detailed specification
Controller: R-30iB Plus
Protection Rating: Contact us for detailed specification
Application: Handling, Machine Tending

Additional Specification

Controller Series: R-30iB Plus
Axes: 6
Max Payload: 7 kg
Mounting Method: Floor / Angle / Inverted
Repeatability: ±0.01 mm
Reach: 717 mm
Mechanical Weight: 53 kg
Average Power Consumption: 1 kW
J1 Motion Range: 340°
J2 Motion Range: 166°
J3 Motion Range: 373°
J4 Motion Range: 380°
J5 Motion Range: 180°
J6 Motion Range: 720°
J1 Speed: 250°/s
J2 Speed: 250°/s
J3 Speed: 250°/s
J4 Speed: 250°/s
J5 Speed: 250°/s
J6 Speed: 250°/s
J4 Moment / Inertia: 16.6/.47
J5 Moment / Inertia: 16.6/.47
J6 Moment / Inertia: 9.4/.15
Body Standard / Optional: IP67
Wrist & J3 Arm: IP67

BEST FOR

Recommended integration applications.

Handling, Machine Tending

Selection note

Final robot selection depends on process, payload, reach, cycle time, environment, tooling and safety requirements. Product brands shown are selectable integration platforms.
