CRX-10iA

CRX-10iA Cobot offers 10kg payload, easy programming, zero maintenance, and safe operation—ideal for welding, palletizing, and assembly.

Request Integration Quote Official Product Link

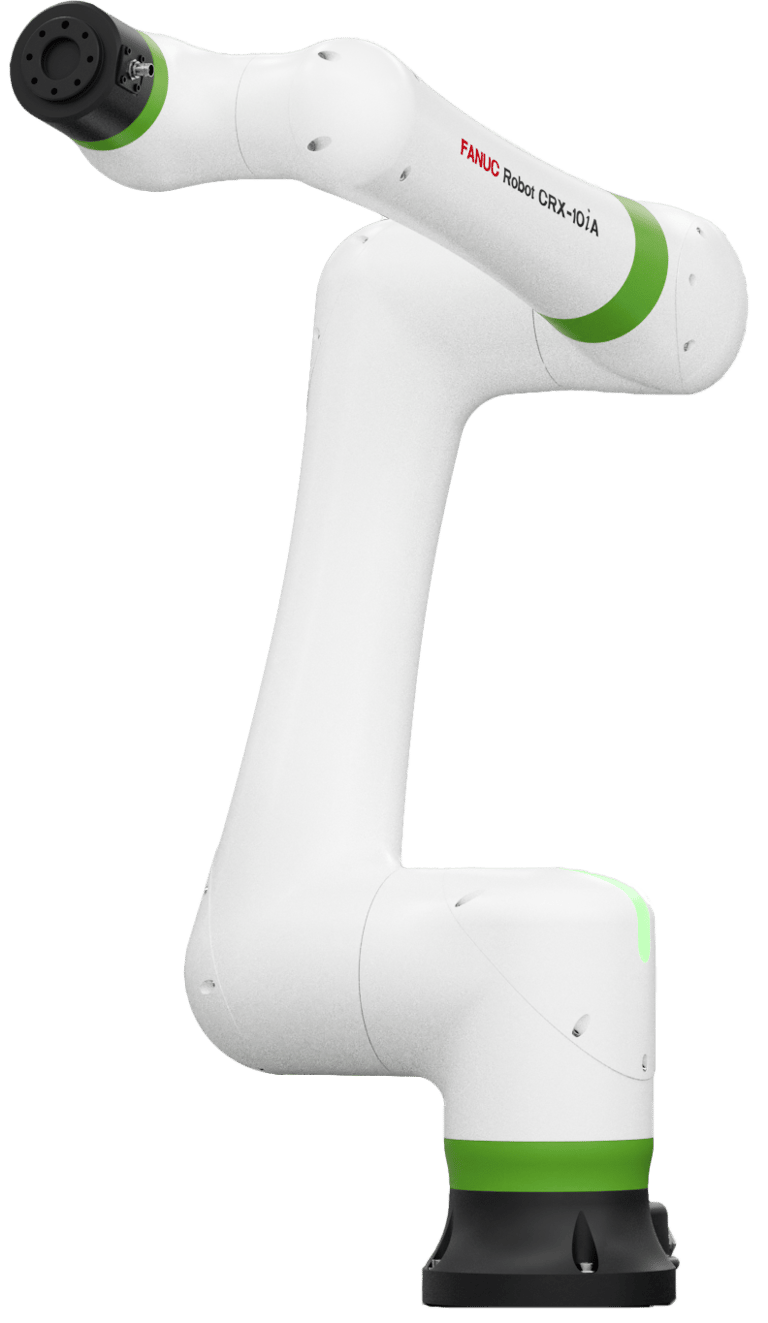

FANUC CRX-10iA robot for automation integration

Image source

TECHNICAL OVERVIEW

Integration specifications.

Brand: FANUC
Model: CRX-10iA
Robot Type: Collaborative Robot
Payload: 10 kg
Reach: 1249 mm
Axes: 6
Repeatability: ±0.05 mm
Mounting Method: Contact us for detailed specification
Controller: R-30iB Plus
Protection Rating: Contact us for detailed specification
Application: Assembly, Handling, Machine Tending

Additional Specification

Controller Series: R-30iB Plus
Axes: 6
Max Payload: 10 kg
Mounting Method: Floor / Angle / Inverted
Repeatability: ±0.05 mm
Reach: 1249 mm
Mechanical Weight: 39 kg
J1 Motion Range: 380°
J2 Motion Range: 360°
J3 Motion Range: 570°
J4 Motion Range: 380°
J5 Motion Range: 360°
J6 Motion Range: 380°
J1 Speed: 120°/s
J2 Speed: 120°/s
J3 Speed: 180°/s
J4 Speed: 180°/s
J5 Speed: 180°/s
J6 Speed: 180°/s
J4 Moment / Inertia: 34.8/1.28
J5 Moment / Inertia: 26/0.9
J6 Moment / Inertia: 11/0.3
Body Standard / Optional: IP67
Wrist & J3 Arm: IP67

BEST FOR

Recommended integration applications.

Assembly, Handling, Machine Tending

Selection note

Final robot selection depends on process, payload, reach, cycle time, environment, tooling and safety requirements. Product brands shown are selectable integration platforms.
