CRX-30iA

The FANUC CRX-30iA is a heavy-lifting cobot with a 30kg payload, featuring wrist buttons for direct, simple teaching and customization.

Request Integration Quote Official Product Link

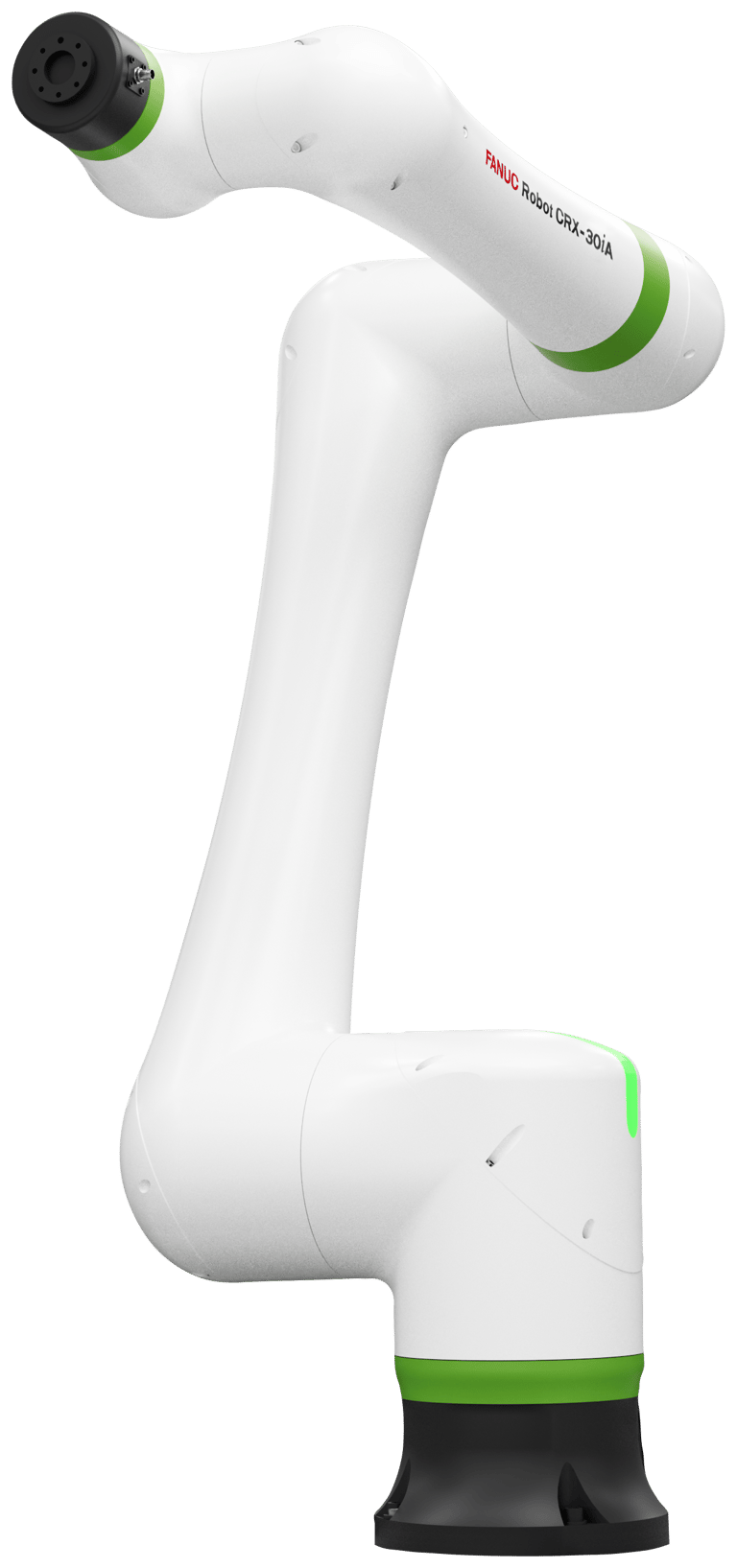

FANUC CRX-30iA robot for automation integration

Image source

TECHNICAL OVERVIEW

Integration specifications.

Brand: FANUC
Model: CRX-30iA
Robot Type: Collaborative Robot
Payload: 30 kg
Reach: 1889 mm
Axes: 6
Repeatability: ±0.05 mm
Mounting Method: Contact us for detailed specification
Controller: R-30iB Plus
Protection Rating: Contact us for detailed specification
Application: Assembly, Handling, Machine Tending

Additional Specification

Controller Series: R-30iB Plus
Axes: 6
Max Payload: 30 kg
Mounting Method: Floor / Angle / Inverted
Repeatability: ±0.05 mm
Reach: 1889 mm
Mechanical Weight: 135 kg
J1 Motion Range: 360°
J2 Motion Range: 360°
J3 Motion Range: 540°
J4 Motion Range: 380°
J5 Motion Range: 360°
J6 Motion Range: 450°
J1 Speed: 1000°/s
J2 Speed: 2000°/s
J4 Moment / Inertia: 100.0/4.7
J5 Moment / Inertia: 74.0/4.00
J6 Moment / Inertia: 32.0/2.00
Body Standard / Optional: IP67
Wrist & J3 Arm: IP67

BEST FOR

Recommended integration applications.

Assembly, Handling, Machine Tending

Selection note

Final robot selection depends on process, payload, reach, cycle time, environment, tooling and safety requirements. Product brands shown are selectable integration platforms.
