CRX-3iA

Ultra-lightweight collaborative robot weighing 11 kg with 692 mm reach, designed for fast, flexible welding, assembly, and installation in tight spaces.

Request Integration Quote Official Product Link

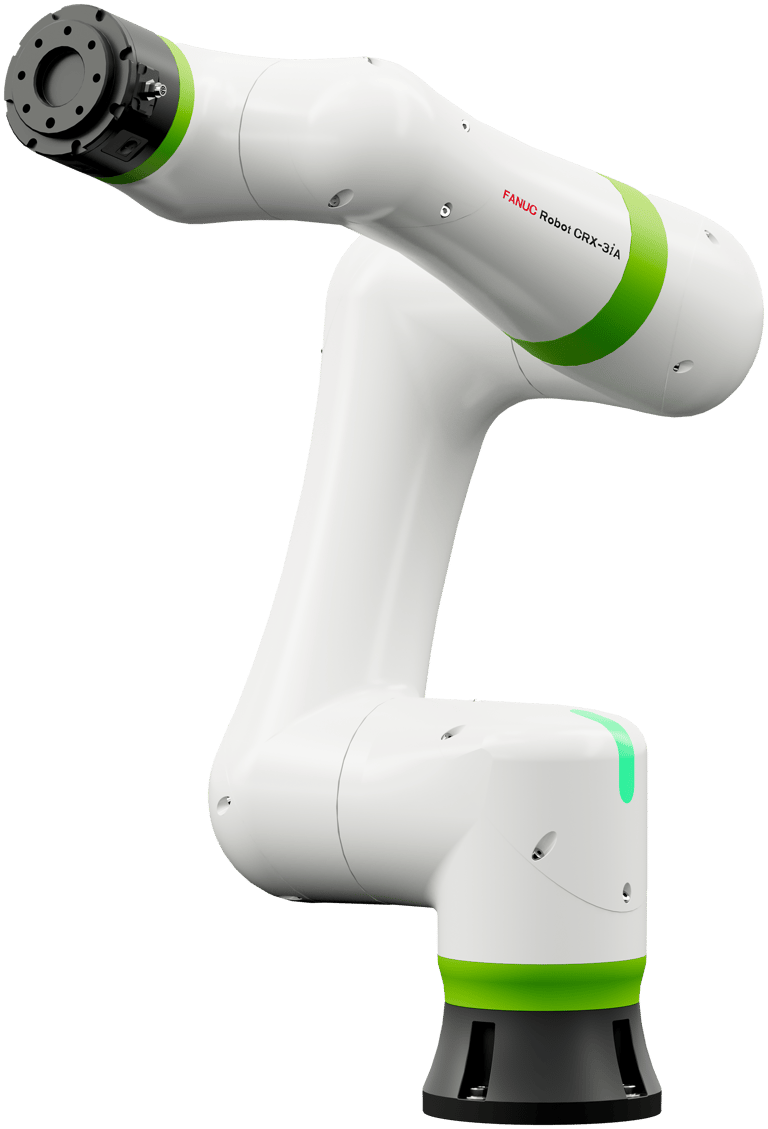

FANUC CRX-3iA robot for automation integration

Image source

TECHNICAL OVERVIEW

Integration specifications.

Brand: FANUC
Model: CRX-3iA
Robot Type: Collaborative Robot
Payload: 3 kg
Reach: 692 mm
Axes: 6
Repeatability: ±0.02 mm
Mounting Method: Contact us for detailed specification
Controller: R-30iB Plus
Protection Rating: Contact us for detailed specification
Application: Assembly, Handling, Machine Tending

Additional Specification

Controller Series: R-30iB Plus
Axes: 6
Max Payload: 3 kg
Mounting Method: Floor / Ceiling / Angle / Wall
Repeatability: ±0.02 mm
Reach: 692 mm
Mechanical Weight: 11 kg
J1 Motion Range: 400°
J2 Motion Range: 360°
J3 Motion Range: 592°
J4 Motion Range: 380°
J5 Motion Range: 360°
J6 Motion Range: 450°
J4 Moment / Inertia: 8.5/0.32
J5 Moment / Inertia: 6.5/0.24
J6 Moment / Inertia: 4/0.08
Body Standard / Optional: IP67
Wrist & J3 Arm: IP67

BEST FOR

Recommended integration applications.

Assembly, Handling, Machine Tending

Selection note

Final robot selection depends on process, payload, reach, cycle time, environment, tooling and safety requirements. Product brands shown are selectable integration platforms.
