CRX-5iA/FOOD-GRADE

CRX-5iA food-grade Cobot offers hygienic automation with 5kg payload, 994mm reach, and safe, easy operation for food and beverage industries.

Request Integration Quote Official Product Link

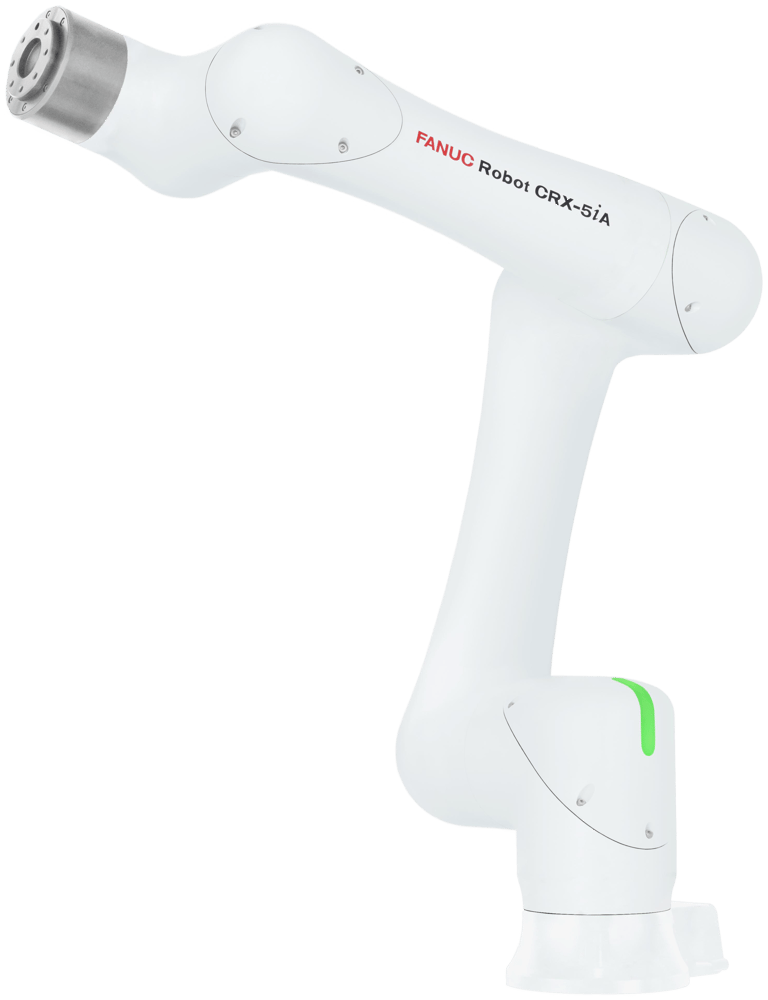

FANUC CRX-5iA/FOOD-GRADE robot for automation integration

Image source

TECHNICAL OVERVIEW

Integration specifications.

Brand: FANUC
Model: CRX-5iA/FOOD-GRADE
Robot Type: Collaborative Robot
Payload: 5 kg
Reach: 994 mm
Axes: 6
Repeatability: ±0.03 mm
Mounting Method: Contact us for detailed specification
Controller: R-30iB Plus
Protection Rating: Contact us for detailed specification
Application: Assembly, Handling, Machine Tending

Additional Specification

Controller Series: R-30iB Plus
Axes: 6
Max Payload: 5 kg
Mounting Method: Floor / Angle / Inverted
Repeatability: ±0.03 mm
Reach: 994 mm
Mechanical Weight: 25 kg
J1 Motion Range: 400°
J2 Motion Range: 360°
J3 Motion Range: 635°
J4 Motion Range: 380°
J5 Motion Range: 360°
J6 Motion Range: 450°
J1 Speed: 1000°/s
J2 Speed: 2000°/s
J4 Moment / Inertia: 19/0.77
J5 Moment / Inertia: 15.4/0.5
J6 Moment / Inertia: 6.7/0.1
Body Standard / Optional: IP67
Wrist & J3 Arm: IP67

BEST FOR

Recommended integration applications.

Assembly, Handling, Machine Tending

Selection note

Final robot selection depends on process, payload, reach, cycle time, environment, tooling and safety requirements. Product brands shown are selectable integration platforms.
