DR-3iB-6-STAINLESS

DR-3iB/6 STAINLESS delta robot offers IP69K-rated, hygienic automation for food handling with high speed, payload, and sanitation standards.

Request Integration Quote Official Product Link

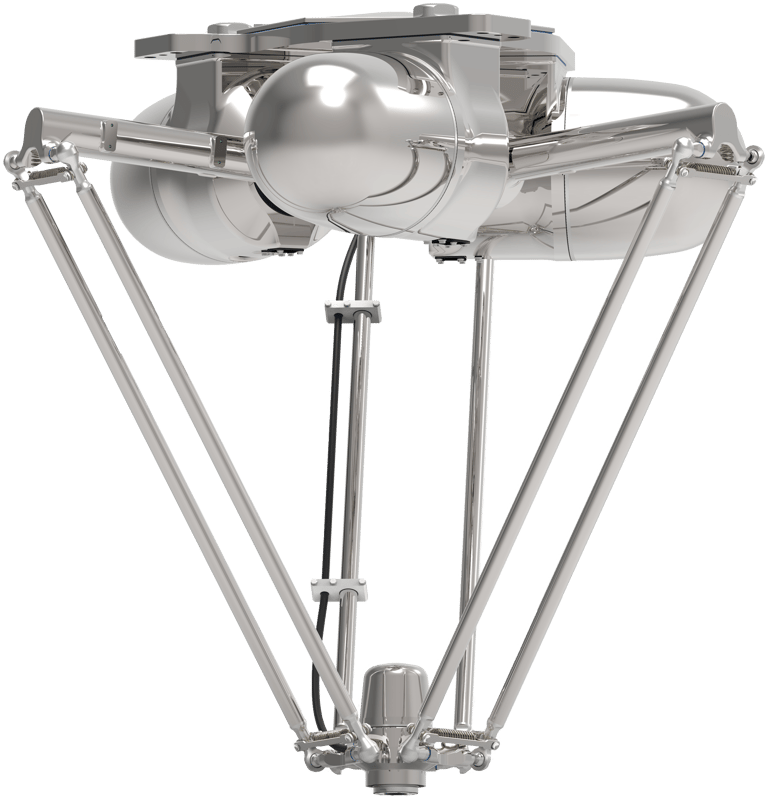

FANUC DR-3iB-6-STAINLESS robot for automation integration

Image source

TECHNICAL OVERVIEW

Integration specifications.

Brand: FANUC
Model: DR-3iB-6-STAINLESS
Robot Type: Delta Robot
Payload: 6 kg
Reach: 1200 mm
Axes: 4
Repeatability: ±0.03 mm
Mounting Method: Contact us for detailed specification
Controller: R-30iB Plus
Protection Rating: Contact us for detailed specification
Application: Assembly, Handling

Additional Specification

Controller Series: R-30iB Plus
Axes: 4
Max Payload: 6 kg
Mounting Method: Ceiling
Repeatability: ±0.03 mm
Reach: 1200 mm
Mechanical Weight: 250 kg
Average Power Consumption: 3 kW
J1 Motion Range: 0°
J2 Motion Range: 0°
J3 Motion Range: 0°
J4 Motion Range: 720°
J4 Speed: 1714°/s
Body Standard / Optional: IP69K
Wrist & J3 Arm: IP69K

BEST FOR

Recommended integration applications.

Assembly, Handling

Selection note

Final robot selection depends on process, payload, reach, cycle time, environment, tooling and safety requirements. Product brands shown are selectable integration platforms.
