LR Mate 10-11A-FOOD-CLEAN

Compact 6‑axis food‑safe robot with 10 kg payload and 1101 mm reach, IP67, ISO 4 cleanroom rated for hygienic food, pharma, and medical automation.

Request Integration Quote Official Product Link

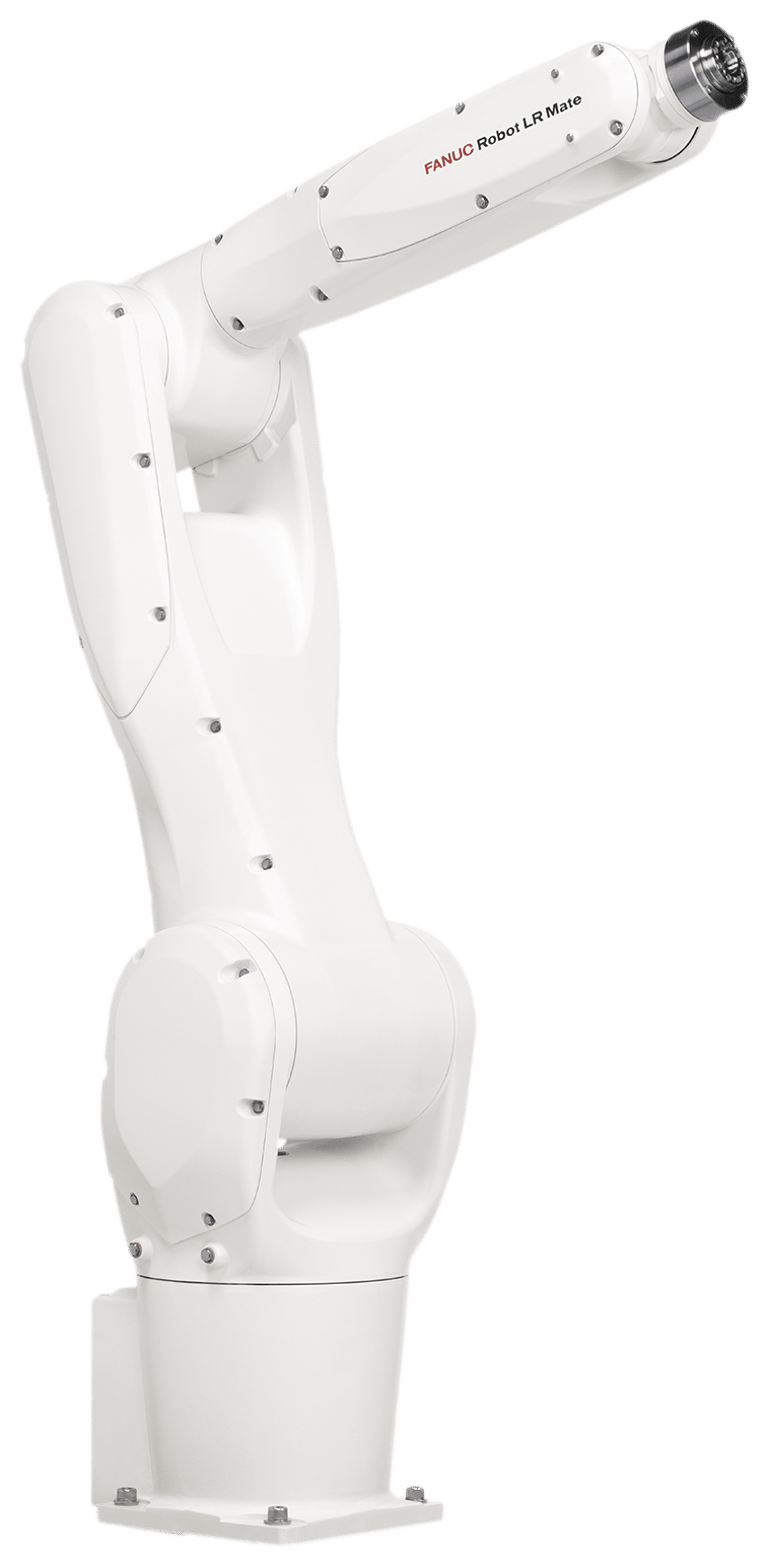

FANUC LR Mate 10-11A-FOOD-CLEAN robot for automation integration

Image source

TECHNICAL OVERVIEW

Integration specifications.

Brand: FANUC
Model: LR Mate 10-11A-FOOD-CLEAN
Robot Type: Articulated Robot
Payload: 10 kg
Reach: 1101 mm
Axes: 6
Repeatability: ±0.01 mm
Mounting Method: Contact us for detailed specification
Controller: R-50iA
Protection Rating: Contact us for detailed specification
Application: Handling, Machine Tending

Additional Specification

Controller Series: R-50iA
Axes: 6
Max Payload: 10 (up to 13) kg
Mounting Method: Floor / Angle / Inverted
Repeatability: ±0.01 mm
Reach: 1101 mm
Mechanical Weight: 46 kg
Average Power Consumption: 0.5 kW
J1 Motion Range: 370°
J2 Motion Range: 235°
J3 Motion Range: 421°
J4 Motion Range: 380°
J5 Motion Range: 250°
J6 Motion Range: 720°
J1 Speed: 300°/s
J2 Speed: 230°/s
J3 Speed: 340°/s
J4 Speed: 500°/s
J5 Speed: 400°/s
J6 Speed: 800°/s
J4 Moment / Inertia: 21/.77
J5 Moment / Inertia: 21/.77
J6 Moment / Inertia: 10/0.28
Body Standard / Optional: IP67
Wrist & J3 Arm: IP67

BEST FOR

Recommended integration applications.

Handling, Machine Tending

Selection note

Final robot selection depends on process, payload, reach, cycle time, environment, tooling and safety requirements. Product brands shown are selectable integration platforms.
