LR Mate 14-7D

Compact 6‑axis robot with 14 kg payload, 717 mm reach, IP67 protection, and high speed for precise, demanding industrial automation.

Request Integration Quote Official Product Link

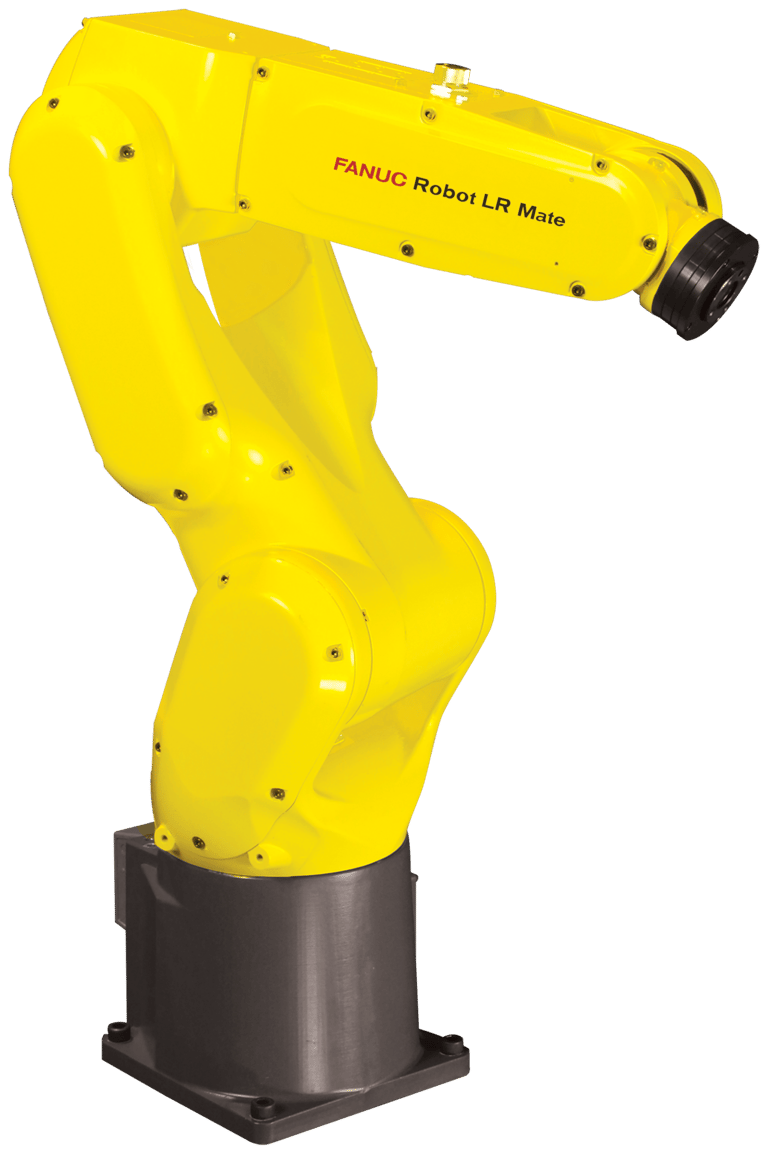

FANUC LR Mate 14-7D robot for automation integration

Image source

TECHNICAL OVERVIEW

Integration specifications.

Brand: FANUC
Model: LR Mate 14-7D
Robot Type: Articulated Robot
Payload: 14 kg
Reach: 717 mm
Axes: 6
Repeatability: ±0.01 mm
Mounting Method: Contact us for detailed specification
Controller: R-50iA
Protection Rating: Contact us for detailed specification
Application: Handling, Machine Tending

Additional Specification

Controller Series: R-50iA
Axes: 6
Max Payload: 14 kg
Mounting Method: Floor / Angle / Inverted
Repeatability: ±0.01 mm
Reach: 717 mm
Mechanical Weight: 25 kg
Average Power Consumption: 0.5 kW
J1 Motion Range: 360°
J2 Motion Range: 245°
J3 Motion Range: 420°
J4 Motion Range: 380°
J5 Motion Range: 250°
J6 Motion Range: 720°
J1 Speed: 290°/s
J2 Speed: 230°/s
J3 Speed: 520°/s
J4 Speed: 400°/s
J5 Speed: 240°/s
J6 Speed: 400°/s
J4 Moment / Inertia: 31/.66
J5 Moment / Inertia: 31/.66
J6 Moment / Inertia: 13.4/.30
Body Standard / Optional: IP67 / IP69K
Wrist & J3 Arm: IP67 / IP69K

BEST FOR

Recommended integration applications.

Handling, Machine Tending

Selection note

Final robot selection depends on process, payload, reach, cycle time, environment, tooling and safety requirements. Product brands shown are selectable integration platforms.
