LR Mate 200iD-7L

Fast at handling small payloads, the FANUC LR Mate 200iD/7L compact multi-purpose robot offers an enhanced reach at 911mm and payloads of up to 7 kg.

Request Integration Quote Official Product Link

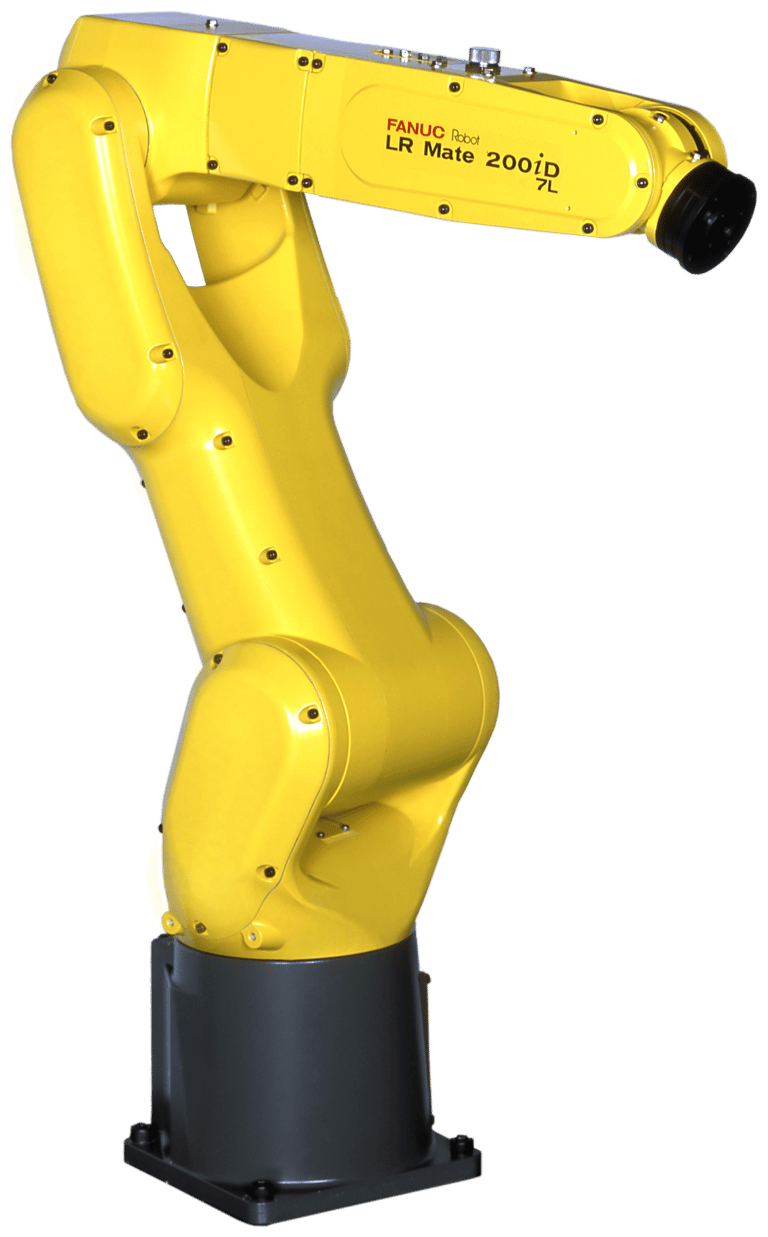

FANUC LR Mate 200iD-7L robot for automation integration

Image source

TECHNICAL OVERVIEW

Integration specifications.

Brand: FANUC
Model: LR Mate 200iD-7L
Robot Type: Articulated Robot
Payload: 7 kg
Reach: 911 mm
Axes: 6
Repeatability: ±0.01 mm
Mounting Method: Contact us for detailed specification
Controller: R-30iB Plus
Protection Rating: Contact us for detailed specification
Application: Handling, Machine Tending

Additional Specification

Controller Series: R-30iB Plus
Axes: 6
Max Payload: 7 kg
Mounting Method: Floor / Angle / Inverted
Repeatability: ±0.01 mm
Reach: 911 mm
Mechanical Weight: 27 kg
Average Power Consumption: 0.5 kW
J1 Motion Range: 340°
J2 Motion Range: 245°
J3 Motion Range: 430°
J4 Motion Range: 380°
J5 Motion Range: 250°
J6 Motion Range: 720°
J1 Speed: 370°/s
J2 Speed: 310°/s
J3 Speed: 410°/s
J4 Speed: 550°/s
J5 Speed: 545°/s
J6 Speed: 1000°/s
J4 Moment / Inertia: 16.6/.47
J5 Moment / Inertia: 16.6/.47
J6 Moment / Inertia: 9.4/.15
Body Standard / Optional: IP67 / IP69K
Wrist & J3 Arm: IP67 / IP69K

BEST FOR

Recommended integration applications.

Handling, Machine Tending

Selection note

Final robot selection depends on process, payload, reach, cycle time, environment, tooling and safety requirements. Product brands shown are selectable integration platforms.
