LR Mate 200iD-7WP

The LR Mate 200iD/7WP Washproof robot is built to get wet, this compact 6-axis washdown (washproof) robot is ideal for wet environments.

Request Integration Quote Official Product Link

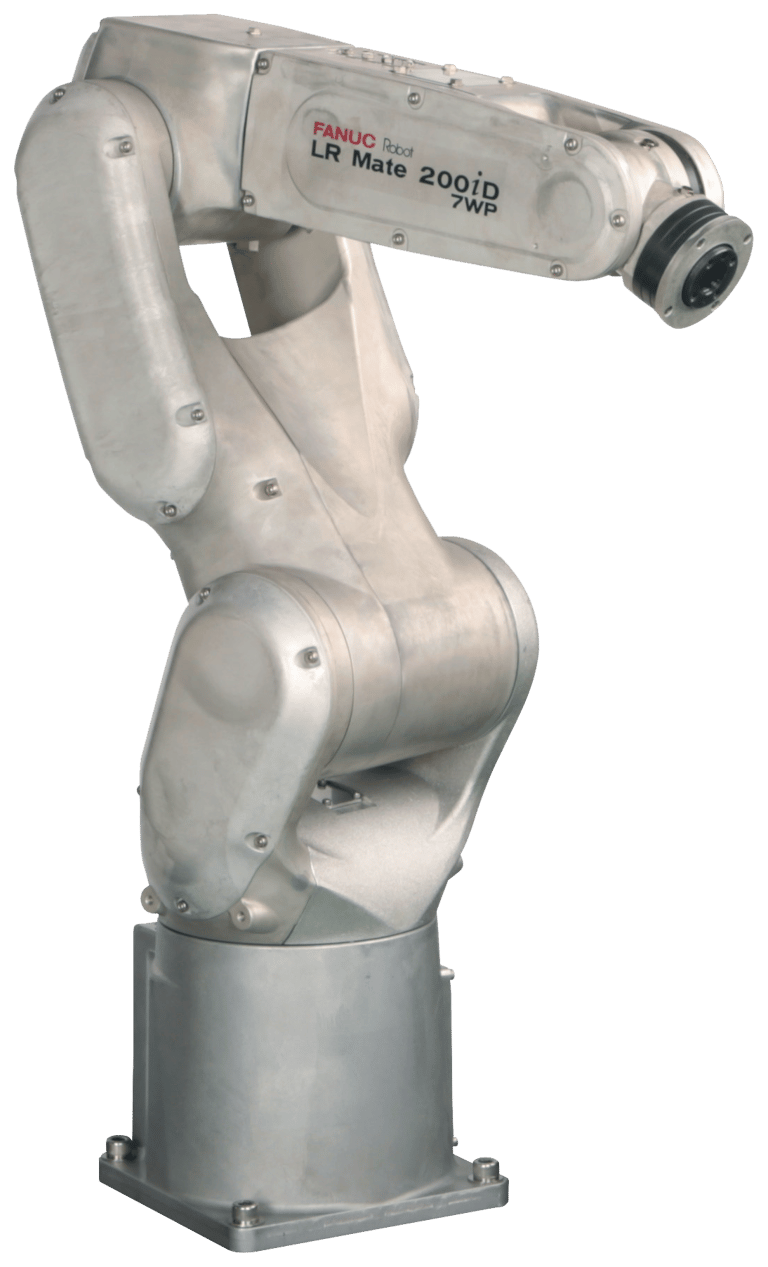

FANUC LR Mate 200iD-7WP robot for automation integration

Image source

TECHNICAL OVERVIEW

Integration specifications.

Brand: FANUC
Model: LR Mate 200iD-7WP
Robot Type: Articulated Robot
Payload: 7 kg
Reach: 717 mm
Axes: 6
Repeatability: ±0.01 mm
Mounting Method: Contact us for detailed specification
Controller: R-30iB Plus
Protection Rating: Contact us for detailed specification
Application: Handling, Machine Tending

Additional Specification

Controller Series: R-30iB Plus
Axes: 6
Max Payload: 7 kg
Mounting Method: Floor / Angle / Inverted
Repeatability: ±0.01 mm
Reach: 717 mm
Mechanical Weight: 25 kg
Average Power Consumption: 0.5 kW
J1 Motion Range: 340°
J2 Motion Range: 245°
J3 Motion Range: 420°
J4 Motion Range: 380°
J5 Motion Range: 250°
J6 Motion Range: 720°
J1 Speed: 450°/s
J2 Speed: 380°/s
J3 Speed: 520°/s
J4 Speed: 550°/s
J5 Speed: 545°/s
J6 Speed: 1000°/s
J4 Moment / Inertia: 16.6/.47
J5 Moment / Inertia: 16.6/.47
J6 Moment / Inertia: 9.4/.15
Body Standard / Optional: IP67 / IP69K
Wrist & J3 Arm: IP67 / IP69K

BEST FOR

Recommended integration applications.

Handling, Machine Tending

Selection note

Final robot selection depends on process, payload, reach, cycle time, environment, tooling and safety requirements. Product brands shown are selectable integration platforms.
