M-10iA/12S

Compact, ultra‑fast 6‑axis robot with 12 kg payload and 1098 mm reach, delivering highest wrist inertia, excellent repeatability, and high‑speed handling.

Request Integration Quote Official Product Link

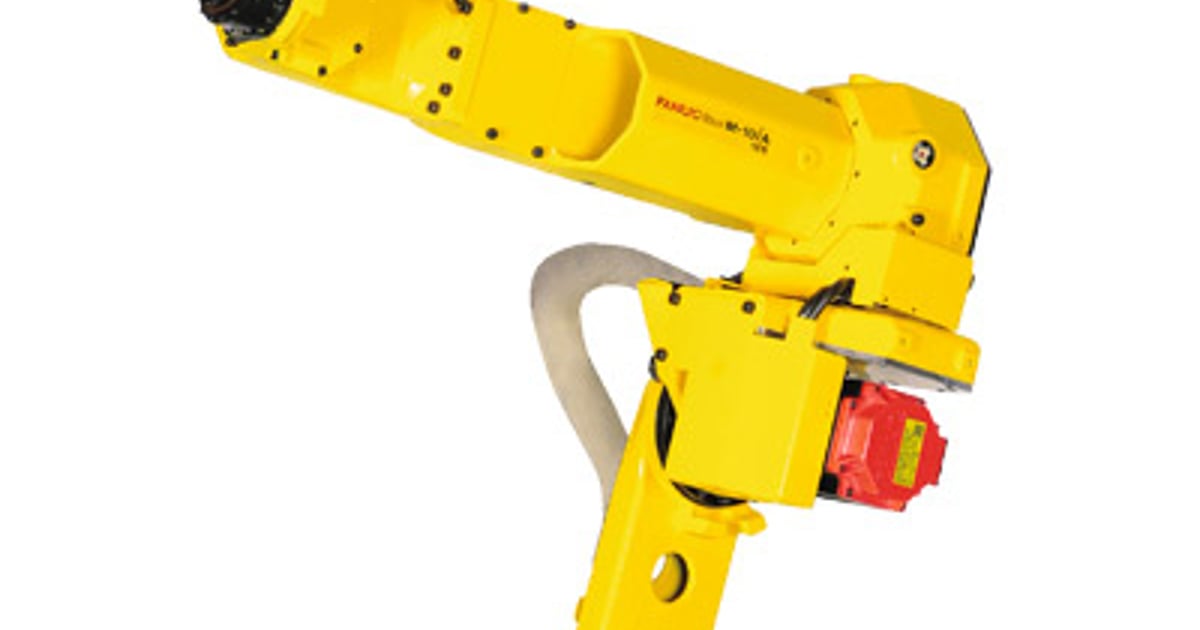

FANUC M-10iA/12S robot for automation integration

Image source

TECHNICAL OVERVIEW

Integration specifications.

Brand: FANUC
Model: M-10iA/12S
Robot Type: Articulated Robot
Payload: 12 kg
Reach: 1098 mm
Axes: 6
Repeatability: ±0.05 mm
Mounting Method: Contact us for detailed specification
Controller: Contact us for detailed specification
Protection Rating: Contact us for detailed specification
Application: Handling, Machine Tending

Additional Specification

Axes: 6
Max Payload: 12 kg
Mounting Method: Floor / Ceiling / Angle
Repeatability: ±0.05 mm
Reach: 1098 mm
Mechanical Weight: 130 kg
J1 Motion Range: 340°
J2 Motion Range: 250°
J3 Motion Range: 340°
J4 Motion Range: 380°
J5 Motion Range: 380°
J6 Motion Range: 720°
J1 Speed: 260°/s
J2 Speed: 280°/s
J3 Speed: 315°/s
J4 Speed: 430°/s
J5 Speed: 430°/s
J6 Speed: 630°/s

BEST FOR

Recommended integration applications.

Handling, Machine Tending

Selection note

Final robot selection depends on process, payload, reach, cycle time, environment, tooling and safety requirements. Product brands shown are selectable integration platforms.
