M-10iD/10L

The FANUC M-10iD/10L is a long arm 6 axis robot model of the M-10 series that features an outstanding axes speed and ultimate precision within its class.

Request Integration Quote Official Product Link

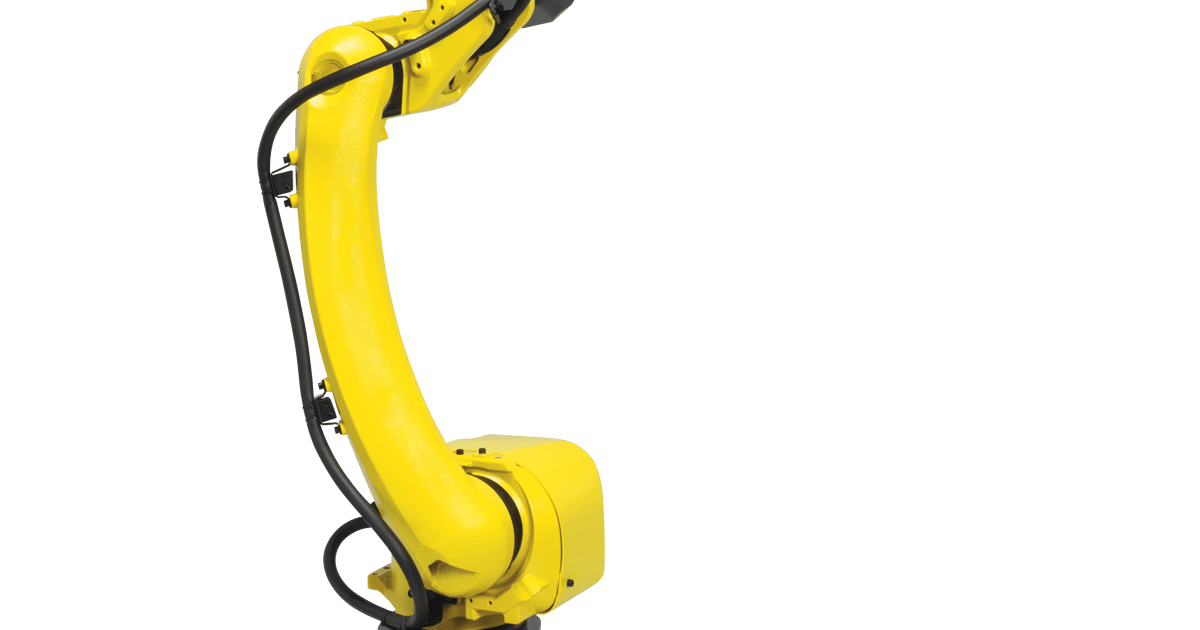

FANUC M-10iD/10L robot for automation integration

Image source

TECHNICAL OVERVIEW

Integration specifications.

Brand: FANUC
Model: M-10iD/10L
Robot Type: Articulated Robot
Payload: 10 kg
Reach: 1636 mm
Axes: 6
Repeatability: ±0.03 mm
Mounting Method: Contact us for detailed specification
Controller: R-30iB Plus
Protection Rating: Contact us for detailed specification
Application: Handling, Machine Tending

Additional Specification

Controller Series: R-30iB Plus
Axes: 6
Max Payload: 10 kg
Mounting Method: Floor / Angle / Inverted
Repeatability: ±0.03 mm
Reach: 1636 mm
Mechanical Weight: 150 kg
Average Power Consumption: 1 kW
J1 Motion Range: 340°
J2 Motion Range: 235°
J3 Motion Range: 455°
J4 Motion Range: 380°
J5 Motion Range: 360°
J6 Motion Range: 900°
J1 Speed: 260°/s
J2 Speed: 240°/s
J3 Speed: 260°/s
J4 Speed: 430°/s
J5 Speed: 450°/s
J6 Speed: 720°/s
J4 Moment / Inertia: 22/.65
J5 Moment / Inertia: 22/.65
J6 Moment / Inertia: 9.8/.17
Body Standard / Optional: IP54 / IP65
Wrist & J3 Arm: IP67

BEST FOR

Recommended integration applications.

Handling, Machine Tending

Selection note

Final robot selection depends on process, payload, reach, cycle time, environment, tooling and safety requirements. Product brands shown are selectable integration platforms.
