M-10iD/12

The FANUC M-10iD/12 is a compact 6 axis robot that reaches the highest axis speed and precision in its class.

Request Integration Quote Official Product Link

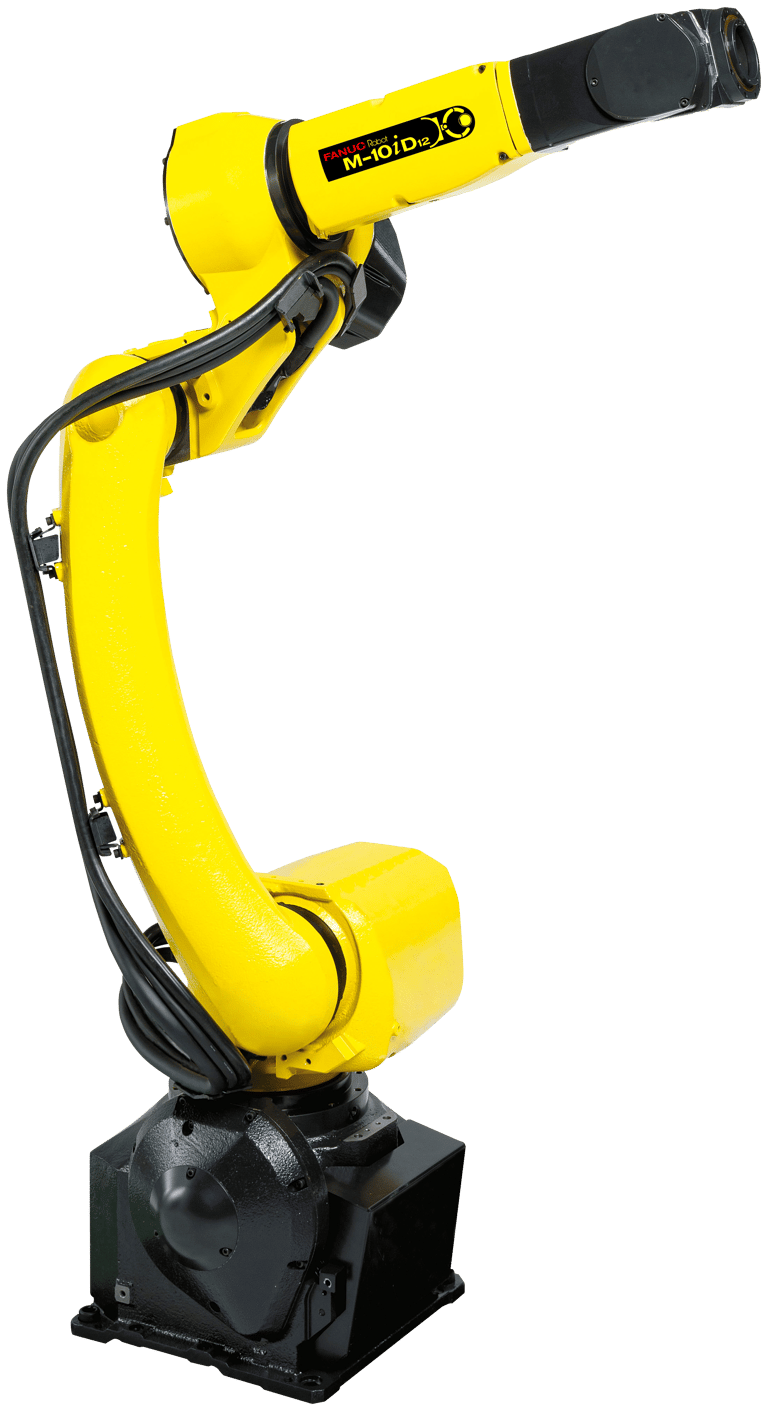

FANUC M-10iD/12 robot for automation integration

Image source

TECHNICAL OVERVIEW

Integration specifications.

Brand: FANUC
Model: M-10iD/12
Robot Type: Articulated Robot
Payload: 12 kg
Reach: 1441 mm
Axes: 6
Repeatability: ±0.02 mm
Mounting Method: Contact us for detailed specification
Controller: R-30iB Plus
Protection Rating: Contact us for detailed specification
Application: Handling, Machine Tending

Additional Specification

Controller Series: R-30iB Plus
Axes: 6
Max Payload: 12 kg
Mounting Method: Floor / Angle / Inverted
Repeatability: ±0.02 mm
Reach: 1441 mm
Mechanical Weight: 145 kg
Average Power Consumption: 1 kW
J1 Motion Range: 340°
J2 Motion Range: 235°
J3 Motion Range: 455°
J4 Motion Range: 380°
J5 Motion Range: 360°
J6 Motion Range: 900°
J1 Speed: 260°/s
J2 Speed: 240°/s
J3 Speed: 260°/s
J4 Speed: 430°/s
J5 Speed: 450°/s
J6 Speed: 720°/s
J4 Moment / Inertia: 26/.9
J5 Moment / Inertia: 26/.9
J6 Moment / Inertia: 11/.3
Body Standard / Optional: IP54 / IP65
Wrist & J3 Arm: IP67

BEST FOR

Recommended integration applications.

Handling, Machine Tending

Selection note

Final robot selection depends on process, payload, reach, cycle time, environment, tooling and safety requirements. Product brands shown are selectable integration platforms.
