M-1iA/0-5AL

Compact 6 axis long arm delta robot with excellent repeatability offers huge flexibility across a wide range of intricate applications.

Request Integration Quote Official Product Link

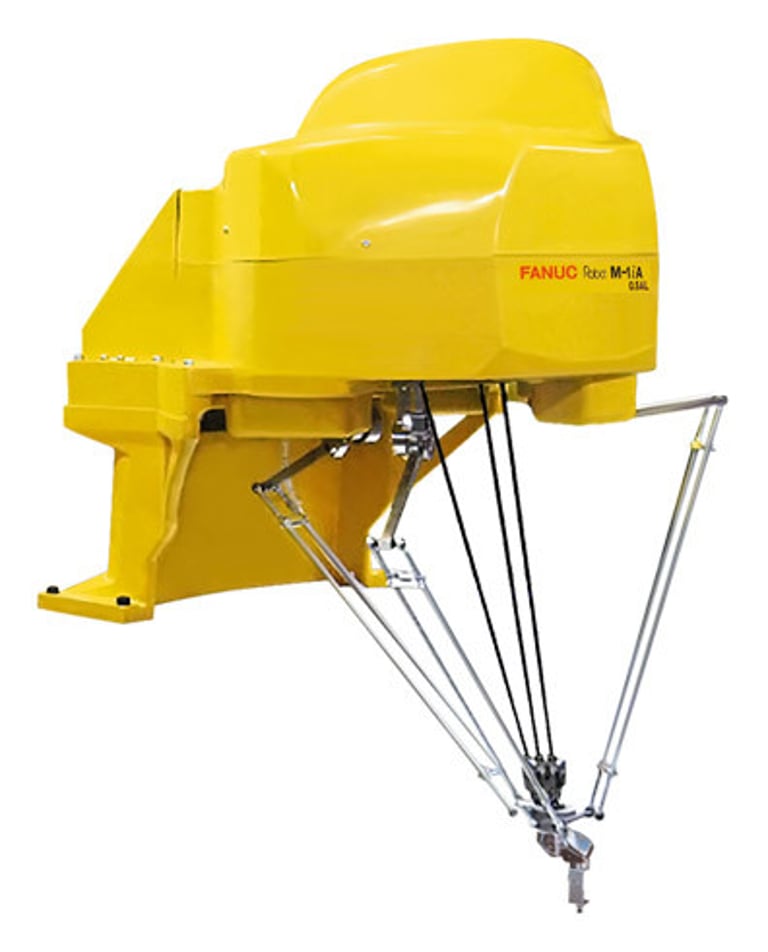

FANUC M-1iA/0-5AL robot for automation integration

Image source

TECHNICAL OVERVIEW

Integration specifications.

Brand: FANUC
Model: M-1iA/0-5AL
Robot Type: Delta Robot
Payload: 0.5 kg
Reach: 420 mm
Axes: 6
Repeatability: ±0.03 mm
Mounting Method: Contact us for detailed specification
Controller: R-30iB Plus
Protection Rating: Contact us for detailed specification
Application: Assembly, Handling

Additional Specification

Controller Series: R-30iB Plus
Axes: 6
Max Payload: 0.5 kg
Mounting Method: Floor / Angle / Inverted
Repeatability: ±0.03 mm
Reach: 420 mm
Mechanical Weight: 26 kg
J4 Motion Range: 720°
J5 Motion Range: 300°
J6 Motion Range: 720°
J4 Speed: 1440°/s
J5 Speed: 1440°/s
J6 Speed: 1440°/s
Body Standard / Optional: IP20
Wrist & J3 Arm: IP20

BEST FOR

Recommended integration applications.

Assembly, Handling

Selection note

Final robot selection depends on process, payload, reach, cycle time, environment, tooling and safety requirements. Product brands shown are selectable integration platforms.
