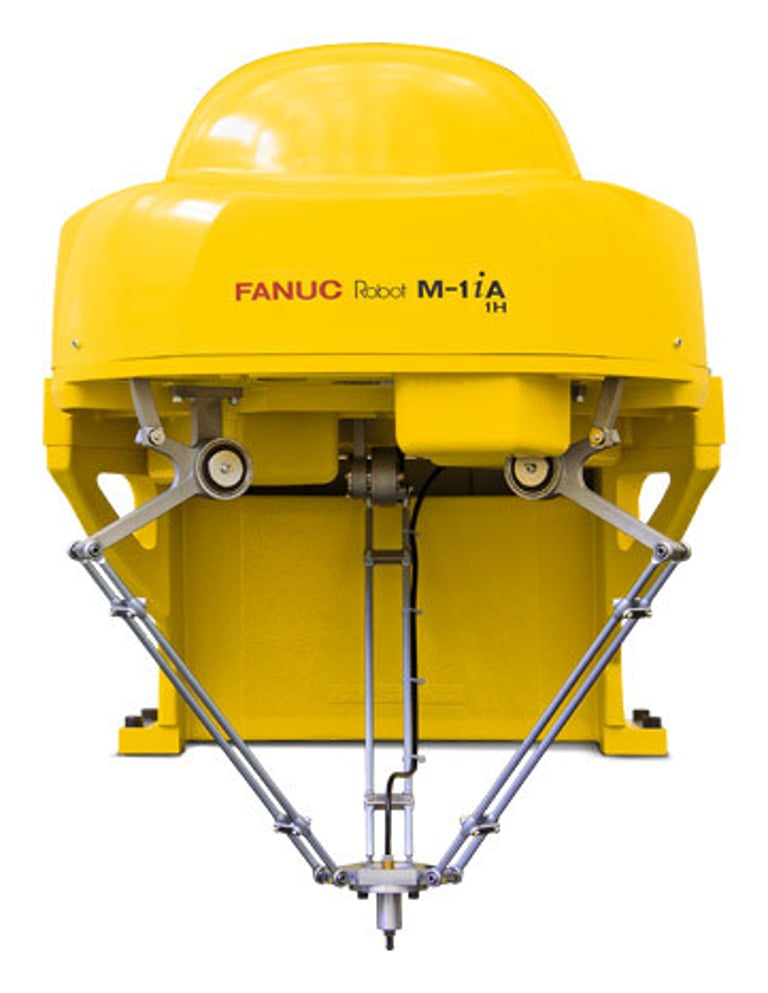

FANUCM-1iA/1H
The FANUC M-1iA/1H is a compact 3-axis delta robot with a broad envelope that makes it ideal for line transfer operations involving low payloads.
TECHNICAL OVERVIEW
Integration specifications.
- Brand
- FANUC
- Model
- M-1iA/1H
- Robot Type
- Delta Robot
- Payload
- 1 kg
- Reach
- 280 mm
- Axes
- 3
- Repeatability
- ±0.02 mm
- Mounting Method
- Contact us for detailed specification
- Controller
- R-30iB Plus
- Protection Rating
- Contact us for detailed specification
- Application
- Assembly, Handling
Additional Specification
Controller Series: R-30iB Plus Axes: 3 Max Payload: 1 kg Mounting Method: Floor / Ceiling Repeatability: ±0.02 mm Reach: 280 mm Mechanical Weight: 18 kg Average Power Consumption: 0 kW J1 Motion Range: 280° J2 Motion Range: 280° J3 Motion Range: 100° J5 Motion Range: 0° J6 Motion Range: 0° J5 Speed: 0°/s J6 Speed: 0°/s Body Standard / Optional: IP20 Wrist & J3 Arm: IP20
BEST FOR
Recommended integration applications.
Assembly, Handling
Selection note
Final robot selection depends on process, payload, reach, cycle time, environment, tooling and safety requirements. Product brands shown are selectable integration platforms.
