M-2000iA/1200

The FANUC M-2000iA/1200 is a 6 axis robot boasting an outstanding vertical lifting stroke and a payload capacity of 1200 kg.

Request Integration Quote Official Product Link

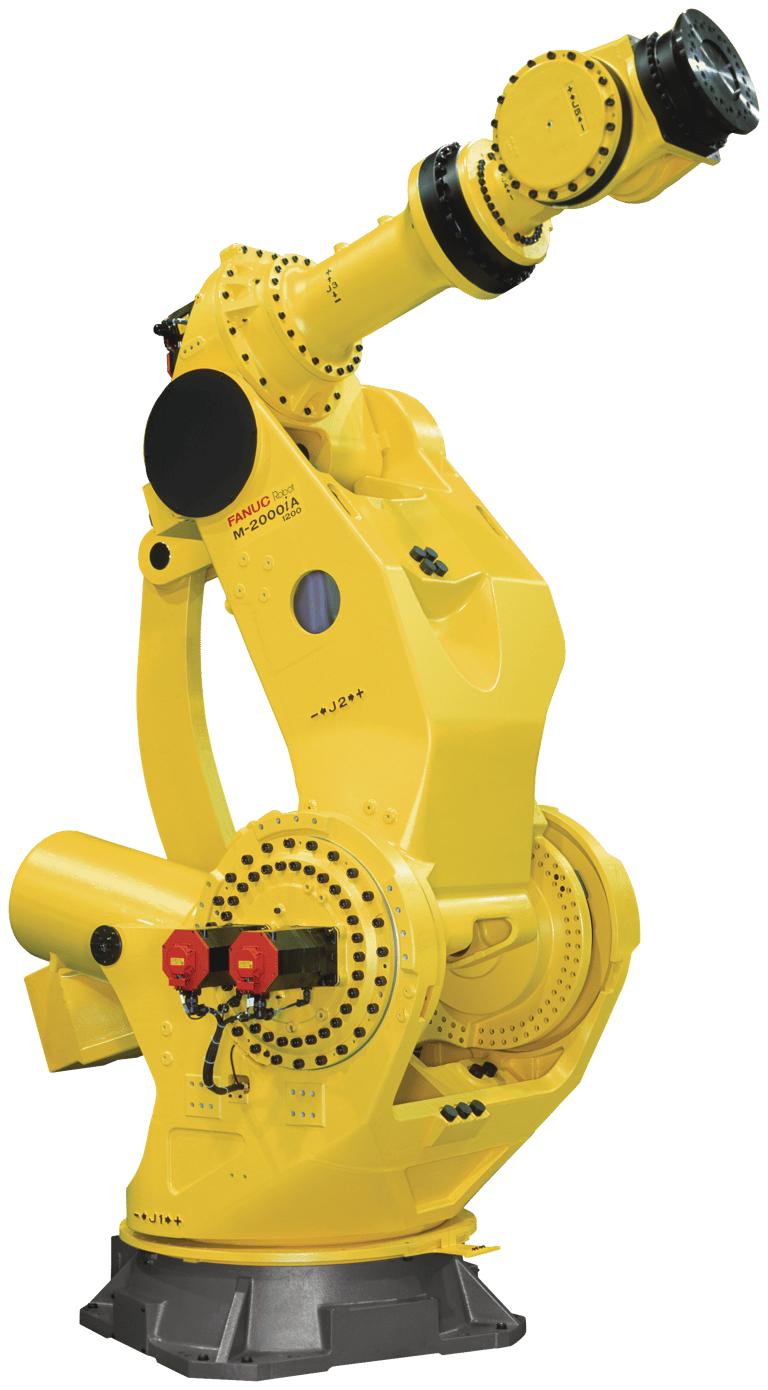

FANUC M-2000iA/1200 robot for automation integration

Image source

TECHNICAL OVERVIEW

Integration specifications.

Brand: FANUC
Model: M-2000iA/1200
Robot Type: Heavy Payload Robot
Payload: 1200 kg
Reach: 3734 mm
Axes: 6
Repeatability: ±0.18 mm
Mounting Method: Contact us for detailed specification
Controller: R-30iB Plus
Protection Rating: Contact us for detailed specification
Application: Handling

Additional Specification

Controller Series: R-30iB Plus
Axes: 6
Max Payload: 1200 kg
Repeatability: ±0.18 mm
Reach: 3734 mm
Mechanical Weight: 8600 kg
Average Power Consumption: 8 kW
J1 Motion Range: 330°
J2 Motion Range: 160°
J3 Motion Range: 165°
J4 Motion Range: 720°
J5 Motion Range: 240°
J6 Motion Range: 720°
J1 Speed: 45°/s
J2 Speed: 30°/s
J3 Speed: 30°/s
J4 Speed: 50°/s
J5 Speed: 50°/s
J6 Speed: 70°/s
J4 Moment / Inertia: 14700/2989
J5 Moment / Inertia: 14700/2989
J6 Moment / Inertia: 4900/2195
Body Standard / Optional: IP54 / IP56
Wrist & J3 Arm: IP67

BEST FOR

Recommended integration applications.

Handling

Selection note

Final robot selection depends on process, payload, reach, cycle time, environment, tooling and safety requirements. Product brands shown are selectable integration platforms.
