M-2000iA/900L

The FANUC M-2000iA/900L is a 6 axis robot boasting an outstanding vertical lifting stroke and a payload capacity of 900 kg.

Request Integration Quote Official Product Link

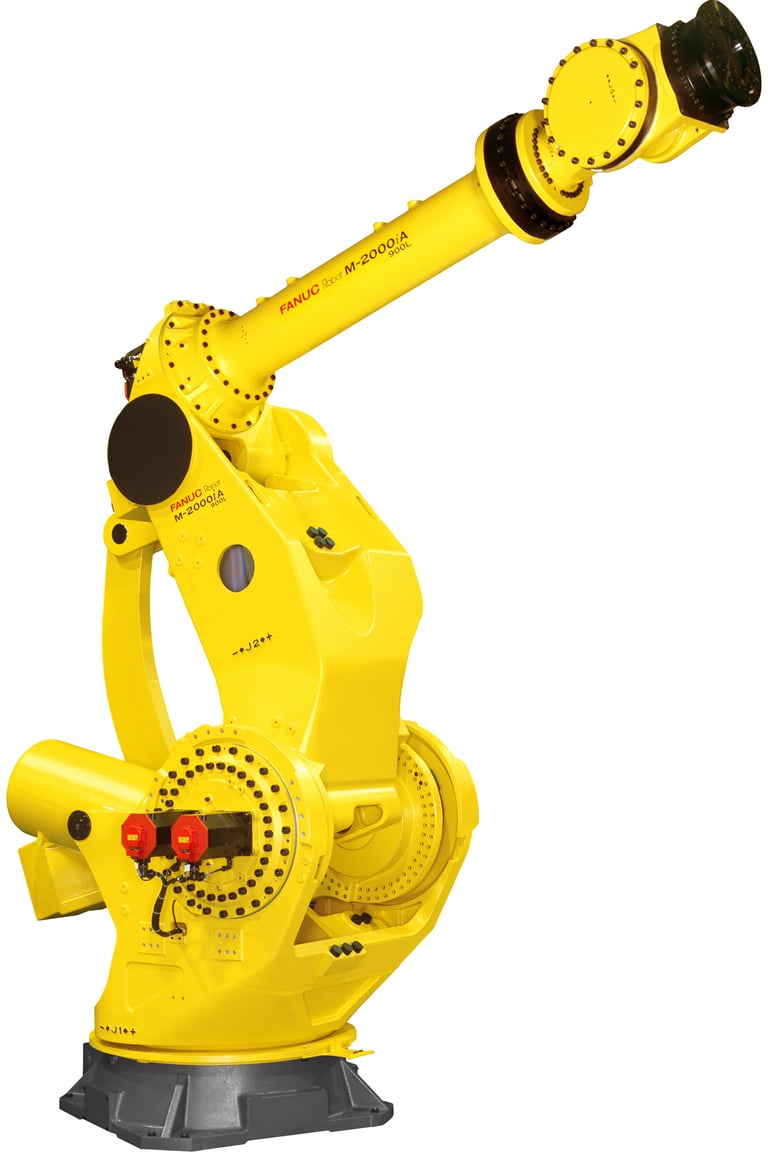

FANUC M-2000iA/900L robot for automation integration

Image source

TECHNICAL OVERVIEW

Integration specifications.

Brand: FANUC
Model: M-2000iA/900L
Robot Type: Heavy Payload Robot
Payload: 900 kg
Reach: 4683 mm
Axes: 6
Repeatability: ±0.18 mm
Mounting Method: Contact us for detailed specification
Controller: R-30iB Plus
Protection Rating: Contact us for detailed specification
Application: Handling

Additional Specification

Controller Series: R-30iB Plus
Axes: 6
Max Payload: 900 kg
Mounting Method: Floor
Repeatability: ±0.18 mm
Reach: 4683 mm
Mechanical Weight: 9600 kg
Average Power Consumption: 8 kW
J1 Motion Range: 330°
J2 Motion Range: 160°
J3 Motion Range: 165°
J4 Motion Range: 720°
J5 Motion Range: 240°
J6 Motion Range: 720°
J1 Speed: 45°/s
J2 Speed: 30°/s
J3 Speed: 30°/s
J4 Speed: 50°/s
J5 Speed: 50°/s
J6 Speed: 70°/s
J4 Moment / Inertia: 14700/2989
J5 Moment / Inertia: 14700/2989
J6 Moment / Inertia: 4900/2195
Body Standard / Optional: IP54 / IP56
Wrist & J3 Arm: IP67

BEST FOR

Recommended integration applications.

Handling

Selection note

Final robot selection depends on process, payload, reach, cycle time, environment, tooling and safety requirements. Product brands shown are selectable integration platforms.
