M-20iA/12L

The FANUC M‑20iA/12L delivers long reach, speed, and precision for medium payload handling, boosting productivity with fast cycles and flexible automation.

Request Integration Quote Official Product Link

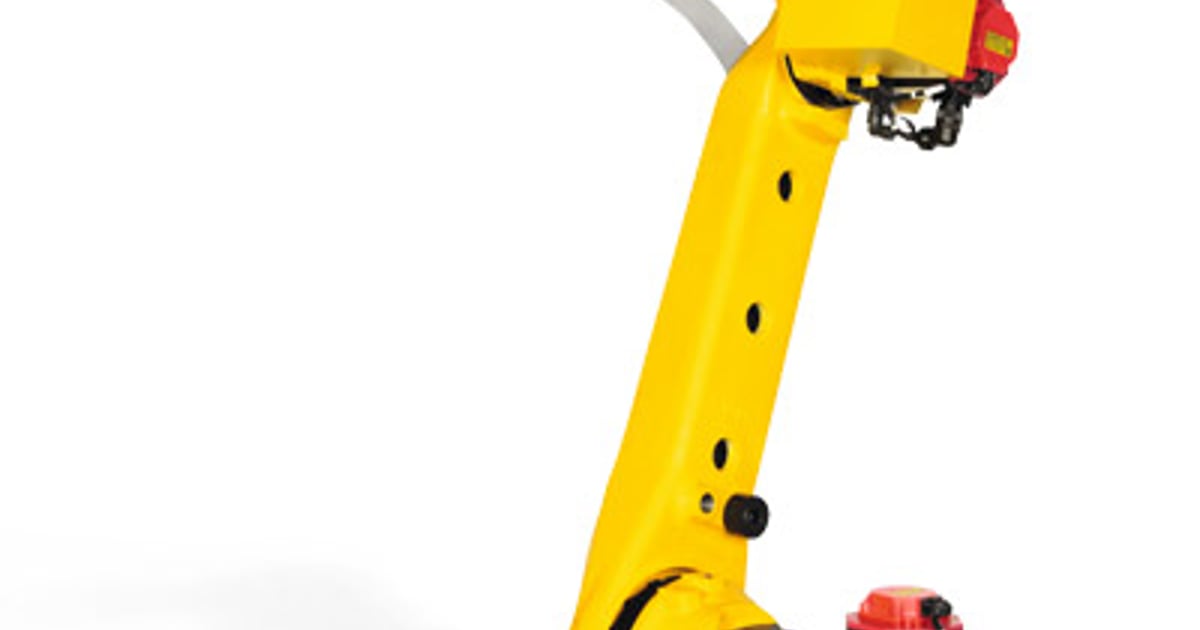

FANUC M-20iA/12L robot for automation integration

Image source

TECHNICAL OVERVIEW

Integration specifications.

Brand: FANUC
Model: M-20iA/12L
Robot Type: Articulated Robot
Payload: 12 kg
Reach: 2009 mm
Axes: 6
Repeatability: ±0.08 mm
Mounting Method: Contact us for detailed specification
Controller: R-30iB Plus
Protection Rating: Contact us for detailed specification
Application: Handling, Machine Tending

Additional Specification

Controller Series: R-30iB Plus
Axes: 6
Max Payload: 12 kg
Mounting Method: Floor / Ceiling / Angle
Repeatability: ±0.08 mm
Reach: 2009 mm
Mechanical Weight: 250 kg
J1 Motion Range: 340°
J2 Motion Range: 260°
J3 Motion Range: 460°
J4 Motion Range: 400°
J5 Motion Range: 360°
J6 Motion Range: 900°
J1 Speed: 200°/s
J2 Speed: 175°/s
J3 Speed: 190°/s
J4 Speed: 430°/s
J5 Speed: 430°/s
J6 Speed: 630°/s

BEST FOR

Recommended integration applications.

Handling, Machine Tending

Selection note

Final robot selection depends on process, payload, reach, cycle time, environment, tooling and safety requirements. Product brands shown are selectable integration platforms.
