M-20iA/20M

Solid wrist variation of the M-20iA robot with a 20KG payload, designed for machine load/unload.

Request Integration Quote Official Product Link

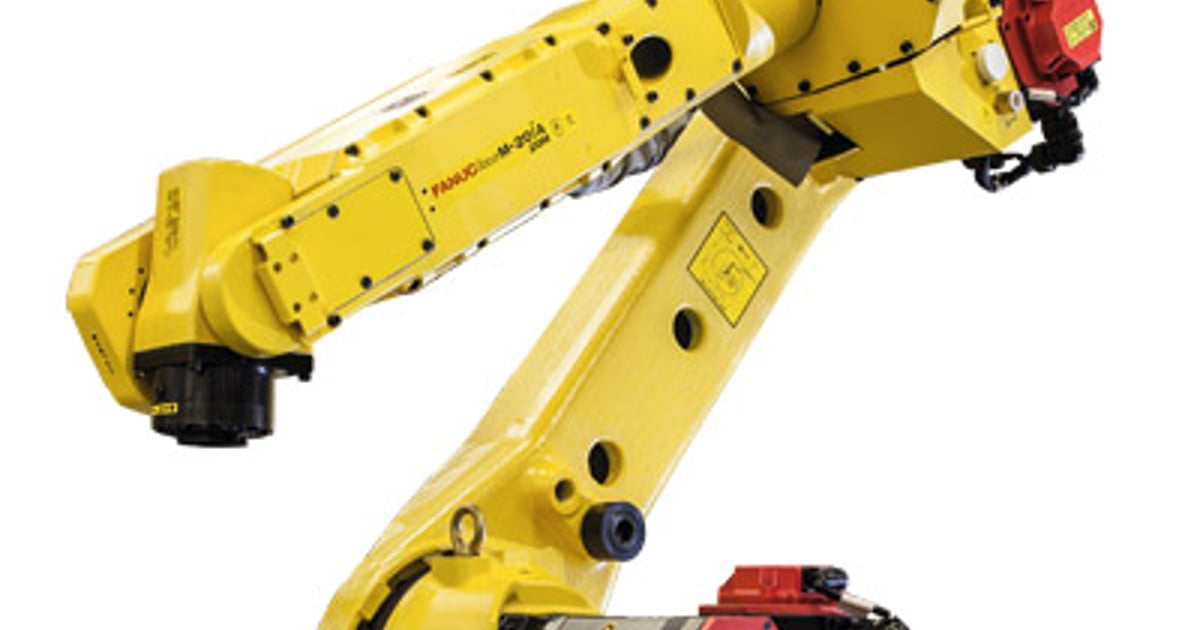

FANUC M-20iA/20M robot for automation integration

Image source

TECHNICAL OVERVIEW

Integration specifications.

Brand: FANUC
Model: M-20iA/20M
Robot Type: Articulated Robot
Payload: 20 kg
Reach: 1813 mm
Axes: 6
Repeatability: ±0.08 mm
Mounting Method: Contact us for detailed specification
Controller: R-30iB Plus
Protection Rating: Contact us for detailed specification
Application: Handling, Machine Tending

Additional Specification

Controller Series: R-30iB Plus
Axes: 6
Max Payload: 20 kg
Mounting Method: Floor / Ceiling / Angle
Repeatability: ±0.08 mm
Reach: 1813 mm
Mechanical Weight: 250 kg
J1 Motion Range: 340°
J2 Motion Range: 260°
J3 Motion Range: 458°
J4 Motion Range: 400°
J5 Motion Range: 280°
J6 Motion Range: 900°
J1 Speed: 195°/s
J2 Speed: 175°/s
J3 Speed: 180°/s
J4 Speed: 405°/s
J5 Speed: 405°/s
J6 Speed: 615°/s

BEST FOR

Recommended integration applications.

Handling, Machine Tending

Selection note

Final robot selection depends on process, payload, reach, cycle time, environment, tooling and safety requirements. Product brands shown are selectable integration platforms.
