M-20iB/25

The FANUC M-20iB/25 is a compact 6 axis robot that has been designed to achieve faster cycles and increased throughput on a range of applications.

Request Integration Quote Official Product Link

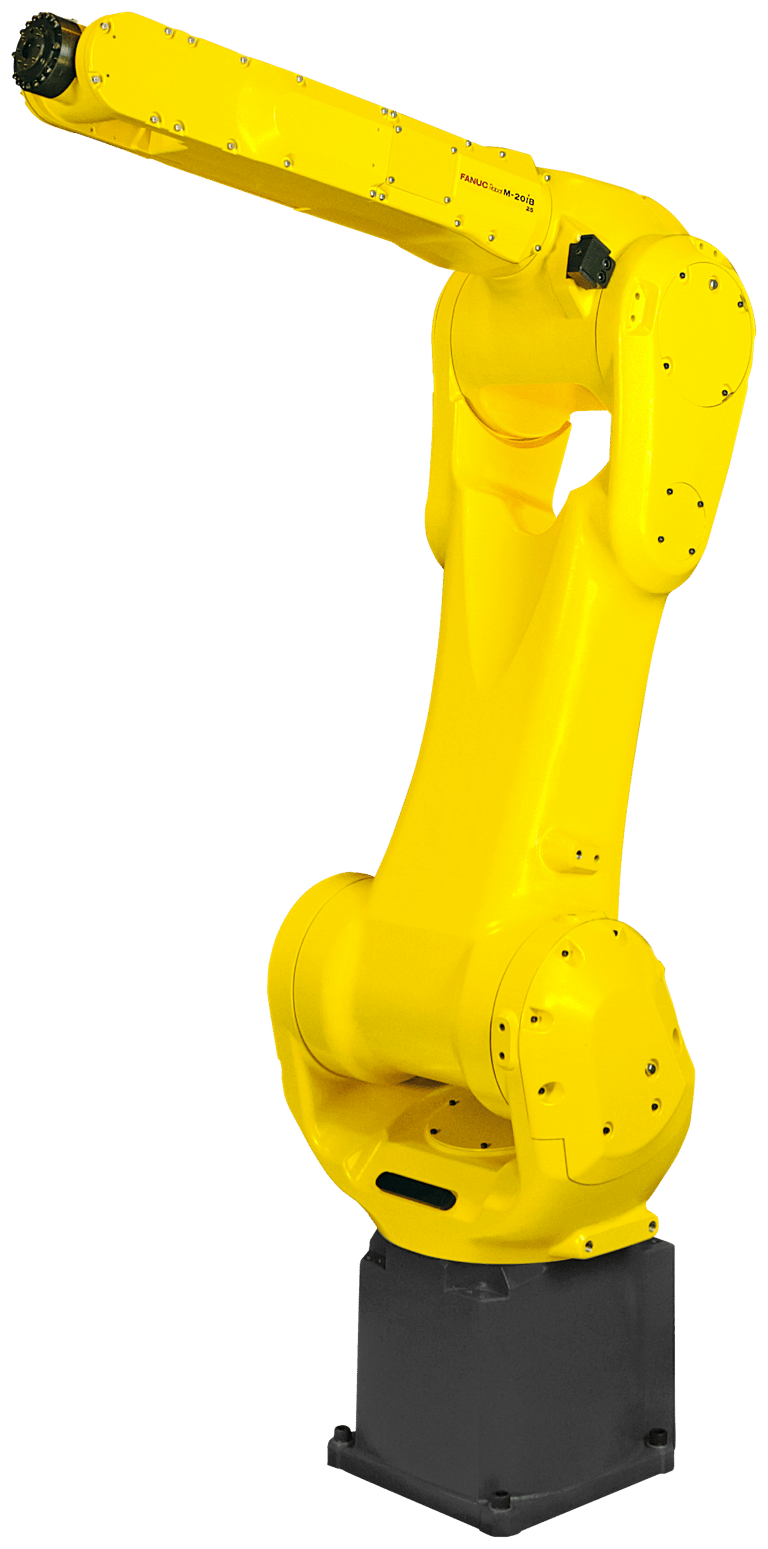

FANUC M-20iB/25 robot for automation integration

Image source

TECHNICAL OVERVIEW

Integration specifications.

Brand: FANUC
Model: M-20iB/25
Robot Type: Articulated Robot
Payload: 25 kg
Reach: 1853 mm
Axes: 6
Repeatability: ±0.02 mm
Mounting Method: Contact us for detailed specification
Controller: R-30iB Plus
Protection Rating: Contact us for detailed specification
Application: Handling, Machine Tending

Additional Specification

Controller Series: R-30iB Plus
Axes: 6
Max Payload: 25 kg
Mounting Method: Floor / Ceiling / Angle
Repeatability: ±0.02 mm
Reach: 1853 mm
Mechanical Weight: 210 kg
Average Power Consumption: 1 kW
J1 Motion Range: 340°
J2 Motion Range: 240°
J3 Motion Range: 303°
J4 Motion Range: 400°
J5 Motion Range: 290°
J6 Motion Range: 540°
J1 Speed: 205°/s
J2 Speed: 205°/s
J3 Speed: 260°/s
J4 Speed: 415°/s
J5 Speed: 415°/s
J6 Speed: 880°/s
J4 Moment / Inertia: 51/2.2
J5 Moment / Inertia: 51/2.2
J6 Moment / Inertia: 31/1.2
Body Standard / Optional: IP67
Wrist & J3 Arm: IP67

BEST FOR

Recommended integration applications.

Handling, Machine Tending

Selection note

Final robot selection depends on process, payload, reach, cycle time, environment, tooling and safety requirements. Product brands shown are selectable integration platforms.
