M-2iA/6HL

The FANUC M-2iA/6HL is a 3-axis long arm hollow wrist delta robot for most applications involving low payloads.

Request Integration Quote Official Product Link

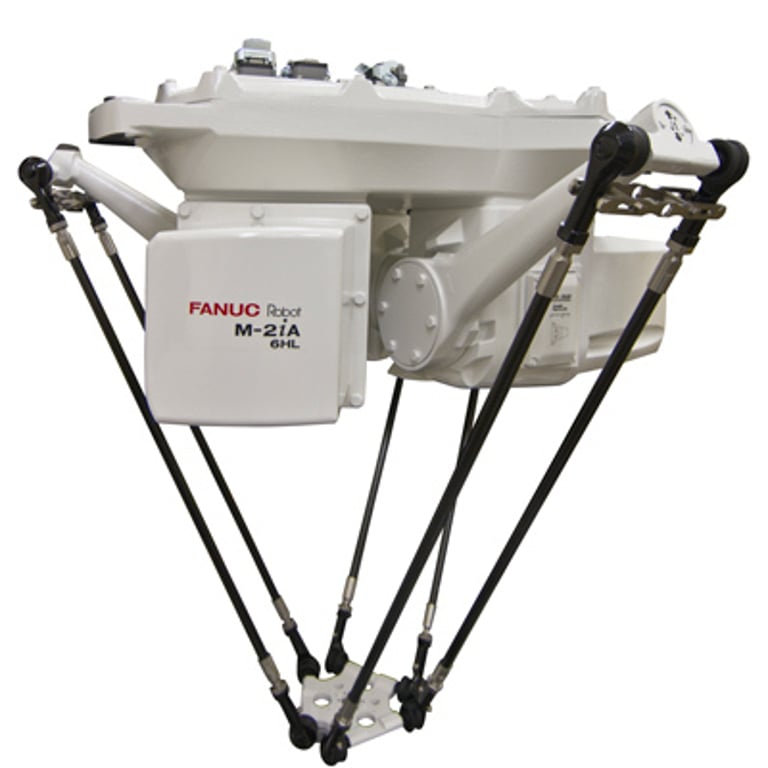

FANUC M-2iA/6HL robot for automation integration

Image source

TECHNICAL OVERVIEW

Integration specifications.

Brand: FANUC
Model: M-2iA/6HL
Robot Type: Delta Robot
Payload: 6 kg
Reach: 1130 mm
Axes: 3
Repeatability: ±0.03 mm
Mounting Method: Contact us for detailed specification
Controller: R-30iB Plus
Protection Rating: Contact us for detailed specification
Application: Assembly, Handling

Additional Specification

Controller Series: R-30iB Plus
Axes: 3
Max Payload: 6 kg
Mounting Method: Ceiling
Repeatability: ±0.03 mm
Reach: 1130 mm
Mechanical Weight: 125 kg
Average Power Consumption: 3 kW
Body Standard / Optional: STANDARD / OPTIONAL / IP67 / IP69K
Wrist & J3 Arm: STANDARD / OPTIONAL / IP67 / IP69K

BEST FOR

Recommended integration applications.

Assembly, Handling

Selection note

Final robot selection depends on process, payload, reach, cycle time, environment, tooling and safety requirements. Product brands shown are selectable integration platforms.
