M-3iA/12H

The FANUC M-3iA/12H is a compact 3-axis delta robot. This model comes with a high-speed wrist designed for low to medium payload applications.

Request Integration Quote Official Product Link

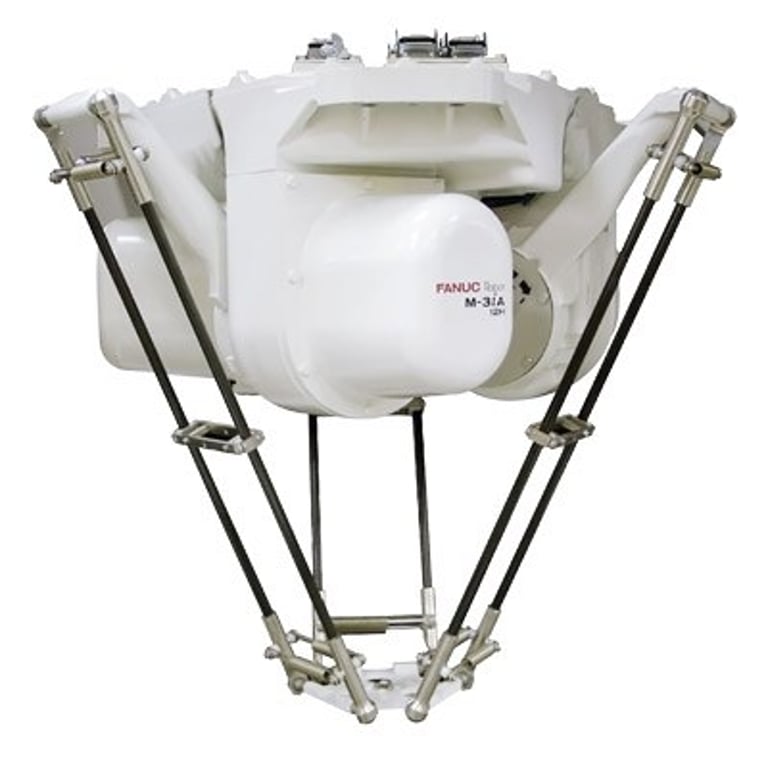

FANUC M-3iA/12H robot for automation integration

Image source

TECHNICAL OVERVIEW

Integration specifications.

Brand: FANUC
Model: M-3iA/12H
Robot Type: Delta Robot
Payload: 12 kg
Reach: 1350 mm
Axes: 3
Repeatability: ±0.1 mm
Mounting Method: Contact us for detailed specification
Controller: R-30iB Plus
Protection Rating: Contact us for detailed specification
Application: Assembly, Handling

Additional Specification

Controller Series: R-30iB Plus
Axes: 3
Max Payload: 12 kg
Mounting Method: Ceiling
Repeatability: ±0.1 mm
Reach: 1350 mm
Mechanical Weight: 155 kg
Average Power Consumption: 3 kW
Body Standard / Optional: IP67
Wrist & J3 Arm: IP67

BEST FOR

Recommended integration applications.

Assembly, Handling

Selection note

Final robot selection depends on process, payload, reach, cycle time, environment, tooling and safety requirements. Product brands shown are selectable integration platforms.
