M-410iB/140H

The FANUC M-410iB/140H is an extremely fast, 5-axis versatile palletizing robot offering the best repeatability in the range.

Request Integration Quote Official Product Link

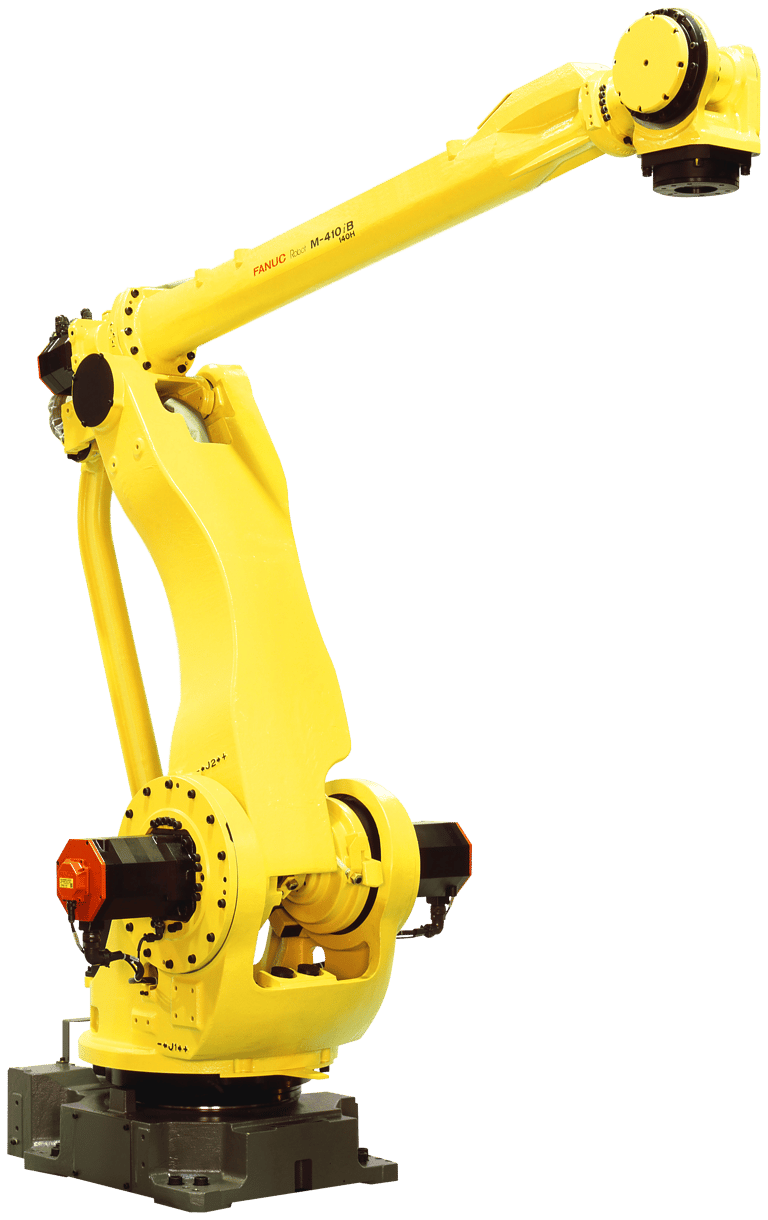

FANUC M-410iB/140H robot for automation integration

Image source

TECHNICAL OVERVIEW

Integration specifications.

Brand: FANUC
Model: M-410iB/140H
Robot Type: Palletizing Robot
Payload: 140 kg
Reach: 2850 mm
Axes: 5
Repeatability: ±0.2 mm
Mounting Method: Contact us for detailed specification
Controller: R-30iB Plus
Protection Rating: Contact us for detailed specification
Application: Handling, Palletizing

Additional Specification

Controller Series: R-30iB Plus
Axes: 5
Max Payload: 140 kg
Mounting Method: Floor
Repeatability: ±0.2 mm
Reach: 2850 mm
Mechanical Weight: 1200 kg
Average Power Consumption: 3 kW
J1 Motion Range: 360°
J2 Motion Range: 155°
J3 Motion Range: 112°
J4 Motion Range: 20°
J5 Motion Range: 720°
J6 Motion Range: 0°
J1 Speed: 140°/s
J2 Speed: 115°/s
J3 Speed: 135°/s
J4 Speed: 135°/s
J5 Speed: 420°/s
J6 Speed: 0°/s
J4 Moment / Inertia: 147
J5 Moment / Inertia: 53
Body Standard / Optional: IP54
Wrist & J3 Arm: IP54

BEST FOR

Recommended integration applications.

Handling, Palletizing

Selection note

Final robot selection depends on process, payload, reach, cycle time, environment, tooling and safety requirements. Product brands shown are selectable integration platforms.
