M-410iB/700

The FANUC M-410iB/700 is a 4-axis palletizing robot boasting the best payload capacity of the range, this robot will lift up to 700 kg.

Request Integration Quote Official Product Link

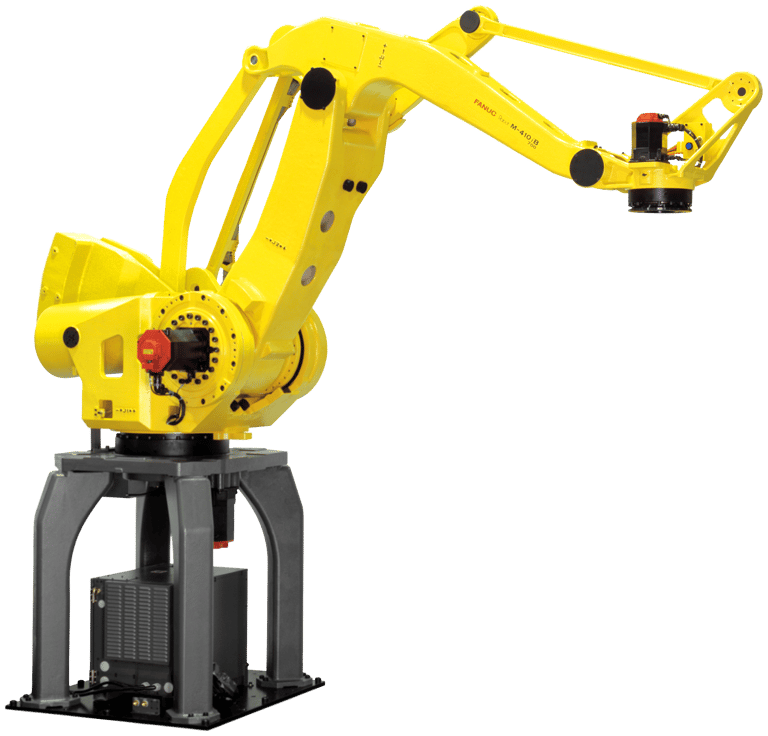

FANUC M-410iB/700 robot for automation integration

Image source

TECHNICAL OVERVIEW

Integration specifications.

Brand: FANUC
Model: M-410iB/700
Robot Type: Palletizing Robot
Payload: 700 kg
Reach: 3143 mm
Axes: 4
Repeatability: ±0.50 mm
Mounting Method: Contact us for detailed specification
Controller: R-30iB Plus
Protection Rating: Contact us for detailed specification
Application: Handling, Palletizing

Additional Specification

Controller Series: R-30iB Plus
Axes: 4
Max Payload: 700 kg
Mounting Method: Floor
Repeatability: ±0.50 mm
Reach: 3143 mm
Mechanical Weight: 2700 kg
Average Power Consumption: 3 kW
J1 Motion Range: 360°
J2 Motion Range: 144°
J3 Motion Range: 136°
J4 Motion Range: 540°
J5 Motion Range: 0°
J6 Motion Range: 0°
J1 Speed: 60°/s
J2 Speed: 60°/s
J3 Speed: 60°/s
J4 Speed: 120°/s
J5 Speed: 0°/s
J6 Speed: 0°/s
J4 Moment / Inertia: 490
Body Standard / Optional: IP54
Wrist & J3 Arm: IP54

BEST FOR

Recommended integration applications.

Handling, Palletizing

Selection note

Final robot selection depends on process, payload, reach, cycle time, environment, tooling and safety requirements. Product brands shown are selectable integration platforms.
