M-410iC/110

Compared to the larger models of this series, the FANUC M-410iC/110 is the fastest palletizing robot in its class with a working range of 2,400 mm.

Request Integration Quote Official Product Link

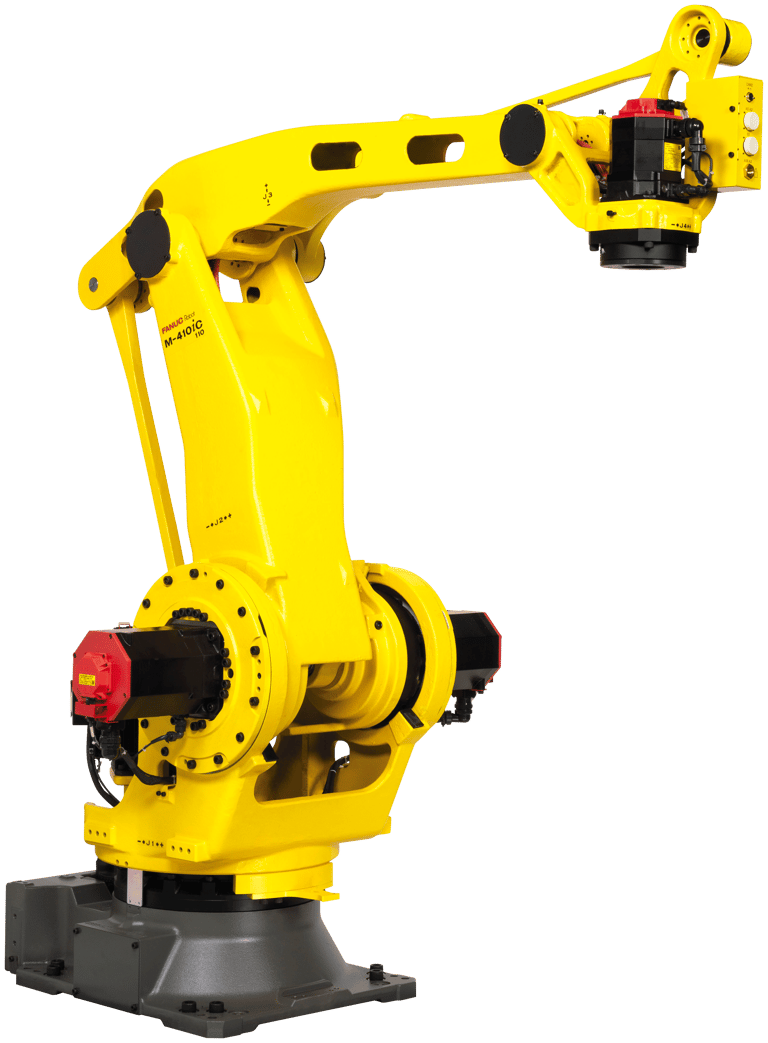

FANUC M-410iC/110 robot for automation integration

Image source

TECHNICAL OVERVIEW

Integration specifications.

Brand: FANUC
Model: M-410iC/110
Robot Type: Palletizing Robot
Payload: 110 kg
Reach: 2403 mm
Axes: 4
Repeatability: ±0.05 mm
Mounting Method: Contact us for detailed specification
Controller: R-30iB Plus
Protection Rating: Contact us for detailed specification
Application: Handling, Palletizing

Additional Specification

Controller Series: R-30iB Plus
Axes: 4
Max Payload: 110 kg
Mounting Method: Floor
Repeatability: ±0.05 mm
Reach: 2403 mm
Mechanical Weight: 1030 kg
Average Power Consumption: 3 kW
J1 Motion Range: 370°
J2 Motion Range: 125°
J3 Motion Range: 140°
J4 Motion Range: 720°
J5 Motion Range: 0°
J6 Motion Range: 0°
J1 Speed: 145°/s
J2 Speed: 130°/s
J3 Speed: 140°/s
J4 Speed: 420°/s
J5 Speed: 0°/s
J6 Speed: 0°/s
J4 Moment / Inertia: 53
Body Standard / Optional: IP54
Wrist & J3 Arm: IP54

BEST FOR

Recommended integration applications.

Handling, Palletizing

Selection note

Final robot selection depends on process, payload, reach, cycle time, environment, tooling and safety requirements. Product brands shown are selectable integration platforms.
