M-410iC/185

The FANUC M-410iC/185 is a compact 4-axis palletizing robot for high speed palletizing, assembly, machining and parts transfer applications.

Request Integration Quote Official Product Link

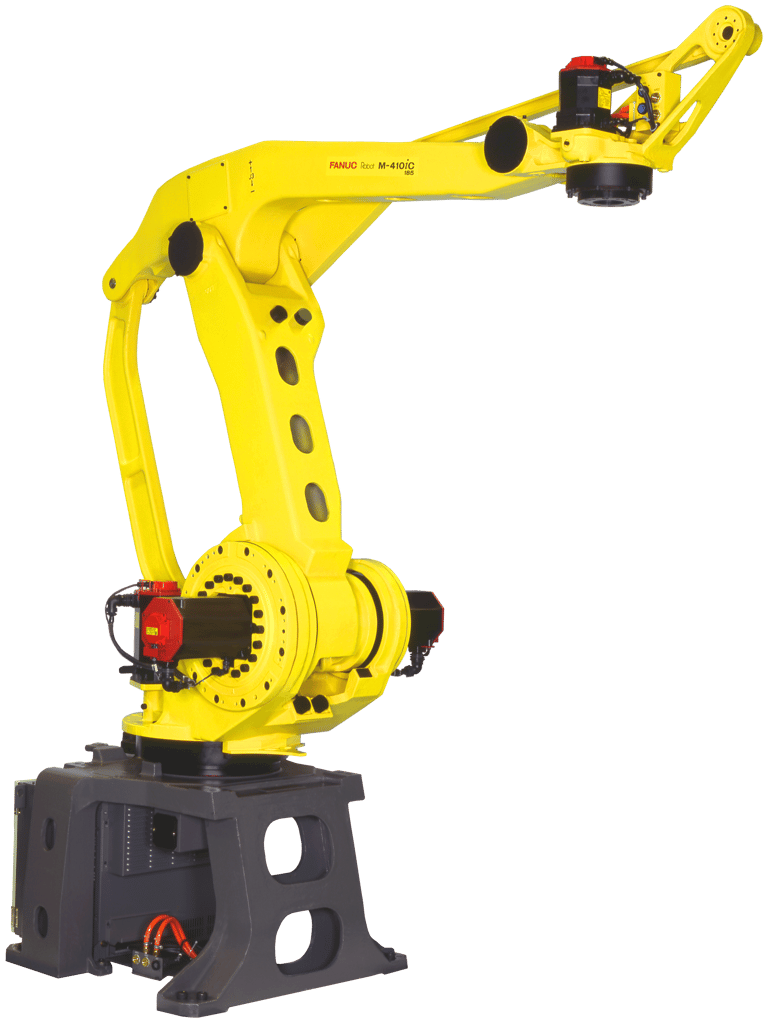

FANUC M-410iC/185 robot for automation integration

Image source

TECHNICAL OVERVIEW

Integration specifications.

Brand: FANUC
Model: M-410iC/185
Robot Type: Palletizing Robot
Payload: 185 kg
Reach: 3143 mm
Axes: 4
Repeatability: ±0.05 mm
Mounting Method: Contact us for detailed specification
Controller: R-30iB Plus
Protection Rating: Contact us for detailed specification
Application: Handling, Palletizing

Additional Specification

Controller Series: R-30iB Plus
Axes: 4
Max Payload: 185 kg
Mounting Method: Floor
Repeatability: ±0.05 mm
Reach: 3143 mm
Mechanical Weight: 1330 kg
Average Power Consumption: 3 kW
J1 Motion Range: 360°
J2 Motion Range: 144°
J3 Motion Range: 136°
J4 Motion Range: 720°
J1 Speed: 140°/s
J2 Speed: 140°/s
J3 Speed: 140°/s
J4 Speed: 305°/s
J4 Moment / Inertia: 88
Body Standard / Optional: IP54
Wrist & J3 Arm: IP54

BEST FOR

Recommended integration applications.

Handling, Palletizing

Selection note

Final robot selection depends on process, payload, reach, cycle time, environment, tooling and safety requirements. Product brands shown are selectable integration platforms.
