M-410iC/315

The FANUC M-410iC/315 is a 4-axis compact palletizing robot specifically engineered for precision and high-speed handling of payloads up to 315 kg.

Request Integration Quote Official Product Link

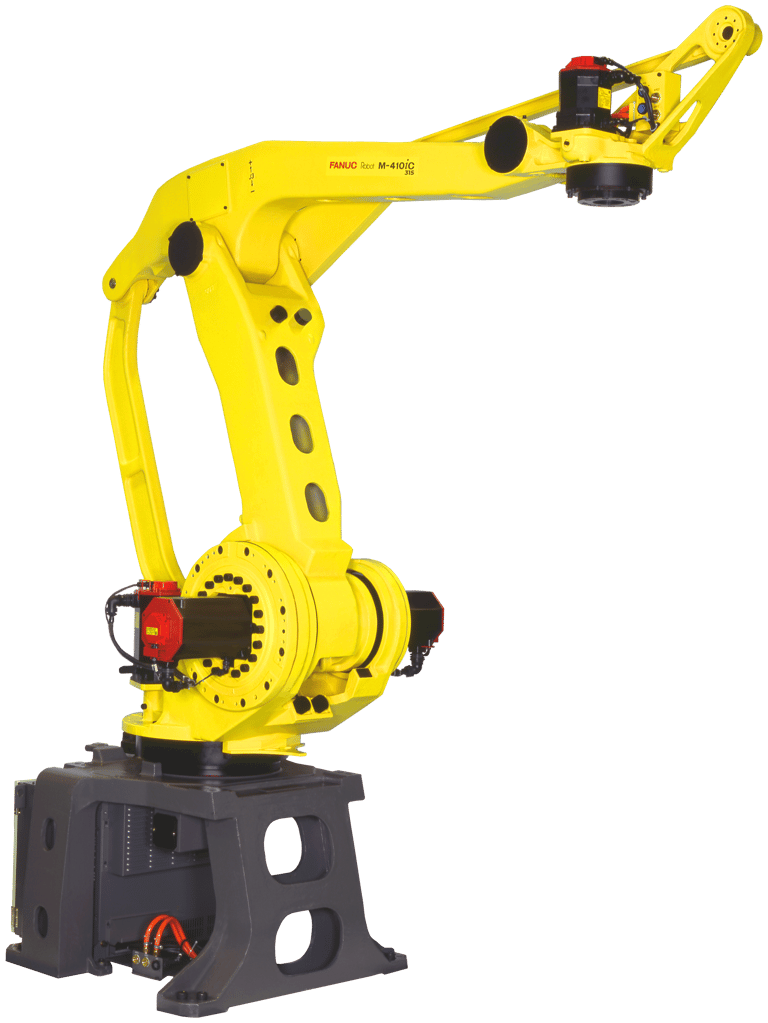

FANUC M-410iC/315 robot for automation integration

Image source

TECHNICAL OVERVIEW

Integration specifications.

Brand: FANUC
Model: M-410iC/315
Robot Type: Palletizing Robot
Payload: 315 kg
Reach: 3143 mm
Axes: 4
Repeatability: ±0.05 mm
Mounting Method: Contact us for detailed specification
Controller: R-30iB Plus
Protection Rating: Contact us for detailed specification
Application: Handling, Palletizing

Additional Specification

Controller Series: R-30iB Plus
Axes: 4
Max Payload: 315 kg
Mounting Method: Floor
Repeatability: ±0.05 mm
Reach: 3143 mm
Mechanical Weight: 1330 kg
Average Power Consumption: 3 kW
J1 Motion Range: 360°
J2 Motion Range: 144°
J3 Motion Range: 136°
J4 Motion Range: 720°
J1 Speed: 90°/s
J2 Speed: 100°/s
J3 Speed: 110°/s
J4 Speed: 195°/s
J4 Moment / Inertia: 155
Body Standard / Optional: IP54
Wrist & J3 Arm: IP54

BEST FOR

Recommended integration applications.

Handling, Palletizing

Selection note

Final robot selection depends on process, payload, reach, cycle time, environment, tooling and safety requirements. Product brands shown are selectable integration platforms.
