M-710iC/50

The FANUC M-710iC/50 is a compact 6 axis robot popular for machine tending, grinding, polishing, deburring, water jet cutting and washing applications.

Request Integration Quote Official Product Link

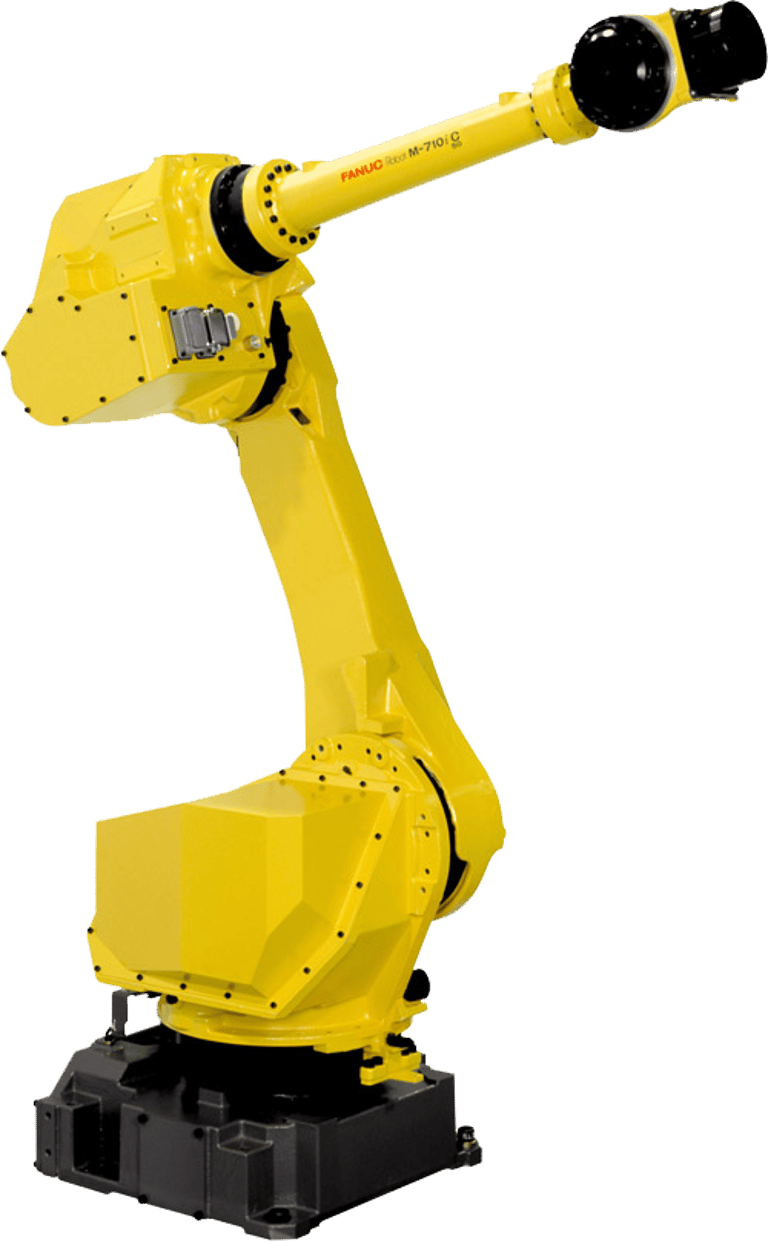

FANUC M-710iC/50 robot for automation integration

Image source

TECHNICAL OVERVIEW

Integration specifications.

Brand: FANUC
Model: M-710iC/50
Robot Type: Articulated Robot
Payload: 50 kg
Reach: 2050 mm
Axes: 6
Repeatability: ±0.03 mm
Mounting Method: Contact us for detailed specification
Controller: R-30iB Plus
Protection Rating: Contact us for detailed specification
Application: Handling, Machine Tending

Additional Specification

Controller Series: R-30iB Plus
Axes: 6
Max Payload: 50 kg
Mounting Method: Floor / Angle / Inverted
Repeatability: ±0.03 mm
Reach: 2050 mm
Mechanical Weight: 560 kg
Average Power Consumption: 3 kW
J1 Motion Range: 360°
J2 Motion Range: 225°
J3 Motion Range: 440°
J4 Motion Range: 720°
J5 Motion Range: 250°
J6 Motion Range: 720°
J1 Speed: 175°/s
J2 Speed: 175°/s
J3 Speed: 175°/s
J4 Speed: 250°/s
J5 Speed: 250°/s
J6 Speed: 355°/s
J4 Moment / Inertia: 206/21
J5 Moment / Inertia: 206/21
J6 Moment / Inertia: 127/13
Body Standard / Optional: IP54 / IP67
Wrist & J3 Arm: IP67

BEST FOR

Recommended integration applications.

Handling, Machine Tending

Selection note

Final robot selection depends on process, payload, reach, cycle time, environment, tooling and safety requirements. Product brands shown are selectable integration platforms.
