M-710iC/50H

The FANUC M-710iC/50H is a compact 6 axis robot. High axis speeds make it extremely fast, while the 5-axis design makes it ideal for packing and…

Request Integration Quote Official Product Link

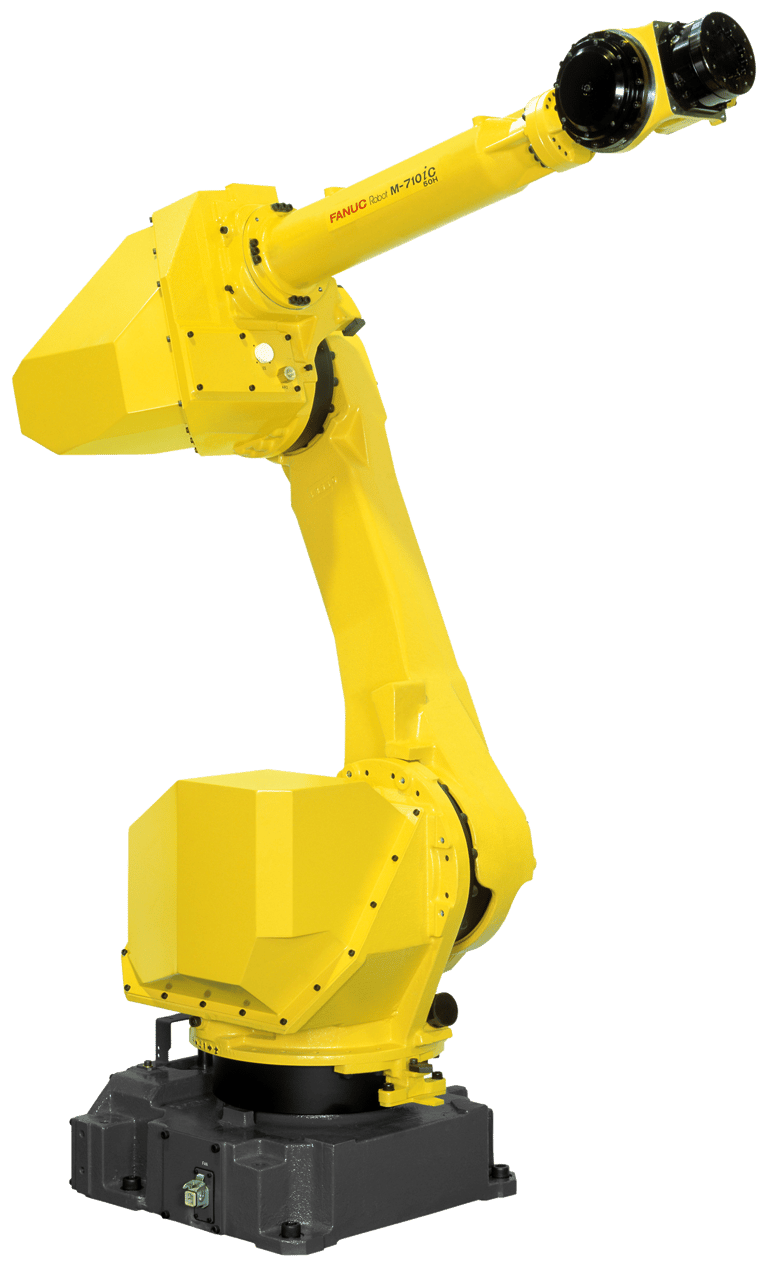

FANUC M-710iC/50H robot for automation integration

Image source

TECHNICAL OVERVIEW

Integration specifications.

Brand: FANUC
Model: M-710iC/50H
Robot Type: Articulated Robot
Payload: 50 kg
Reach: 2003 mm
Axes: 5
Repeatability: ±0.15 mm
Mounting Method: Contact us for detailed specification
Controller: R-30iB Plus
Protection Rating: Contact us for detailed specification
Application: Handling, Machine Tending

Additional Specification

Controller Series: R-30iB Plus
Axes: 5
Max Payload: 50 kg
Mounting Method: Floor / Inverted
Repeatability: ±0.15 mm
Reach: 2003 mm
Mechanical Weight: 540 kg
Average Power Consumption: 3 kW
J1 Motion Range: 360°
J2 Motion Range: 225°
J3 Motion Range: 440°
J4 Motion Range: 234°
J5 Motion Range: 720°
J1 Speed: 175°/s
J2 Speed: 175°/s
J3 Speed: 175°/s
J4 Speed: 175°/s
J5 Speed: 720°/s
J4 Moment / Inertia: 150/6.3
J5 Moment / Inertia: 68/2.5
Body Standard / Optional: IP54 / IP67
Wrist & J3 Arm: IP67

BEST FOR

Recommended integration applications.

Handling, Machine Tending

Selection note

Final robot selection depends on process, payload, reach, cycle time, environment, tooling and safety requirements. Product brands shown are selectable integration platforms.
