M-710iC/50S

The FANUC M-710iC/50S is a compact 6 axis robot. This compact short arm version has been designed specifically to access narrow machines and workspaces.

Request Integration Quote Official Product Link

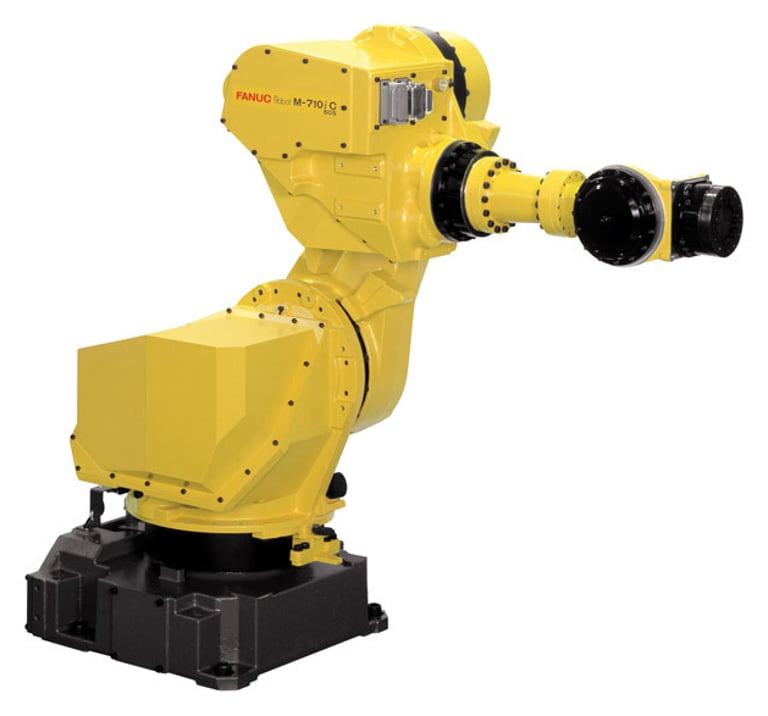

FANUC M-710iC/50S robot for automation integration

Image source

TECHNICAL OVERVIEW

Integration specifications.

Brand: FANUC
Model: M-710iC/50S
Robot Type: Articulated Robot
Payload: 50 kg
Reach: 1359 mm
Axes: 6
Repeatability: ±0.04 mm
Mounting Method: Contact us for detailed specification
Controller: R-30iB Plus
Protection Rating: Contact us for detailed specification
Application: Handling, Machine Tending

Additional Specification

Controller Series: R-30iB Plus
Axes: 6
Max Payload: 50 kg
Mounting Method: Floor / Angle / Inverted
Repeatability: ±0.04 mm
Reach: 1359 mm
Mechanical Weight: 545 kg
Average Power Consumption: 3 kW
J1 Motion Range: 370°
J2 Motion Range: 169°
J3 Motion Range: 376°
J4 Motion Range: 720°
J5 Motion Range: 250°
J6 Motion Range: 720°
J1 Speed: 175°/s
J2 Speed: 175°/s
J3 Speed: 175°/s
J4 Speed: 250°/s
J5 Speed: 250°/s
J6 Speed: 355°/s
J4 Moment / Inertia: 206/28
J5 Moment / Inertia: 206/28
J6 Moment / Inertia: 127/11
Body Standard / Optional: IP54 / IP67
Wrist & J3 Arm: IP67

BEST FOR

Recommended integration applications.

Handling, Machine Tending

Selection note

Final robot selection depends on process, payload, reach, cycle time, environment, tooling and safety requirements. Product brands shown are selectable integration platforms.
