M-800-60-20B

The FANUC M‑800/60‑20B is a high‑rigidity, high‑accuracy robot arm ideal for laser processing applications where exceptional precision is required.

Request Integration Quote Official Product Link

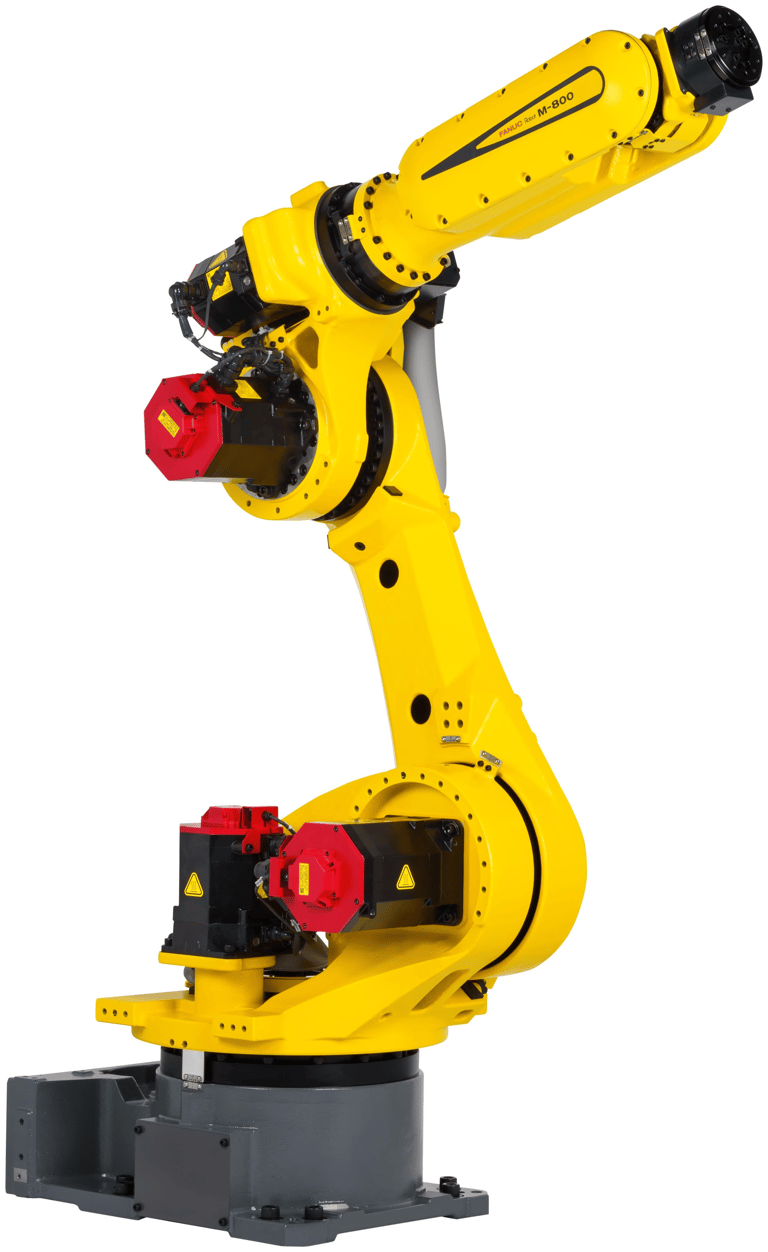

FANUC M-800-60-20B robot for automation integration

Image source

TECHNICAL OVERVIEW

Integration specifications.

Brand: FANUC
Model: M-800-60-20B
Robot Type: Articulated Robot
Payload: 60 kg
Reach: 2040 mm
Axes: 6
Repeatability: ±0.015 mm
Mounting Method: Contact us for detailed specification
Controller: R-50iA
Protection Rating: Contact us for detailed specification
Application: Handling, Machine Tending

Additional Specification

Controller Series: R-50iA
Axes: 6
Max Payload: 60 kg
Mounting Method: Floor
Repeatability: ±0.015 mm
Reach: 2040 mm
Footprint: 500mm x 680mm
Mechanical Weight: 820 kg
Average Power Consumption: 3 kW
J1 Motion Range: 370°
J2 Motion Range: 225°
J3 Motion Range: 340°
J4 Motion Range: 720°
J5 Motion Range: 250°
J6 Motion Range: 720°
J1 Speed: 150°/s
J2 Speed: 150°/s
J3 Speed: 150°/s
J4 Speed: 260°/s
J5 Speed: 260°/s
J6 Speed: 400°/s
J4 Moment / Inertia: 210/30
J5 Moment / Inertia: 210/30
J6 Moment / Inertia: 130/20
Body Standard / Optional: IP54
Wrist & J3 Arm: IP67

BEST FOR

Recommended integration applications.

Handling, Machine Tending

Selection note

Final robot selection depends on process, payload, reach, cycle time, environment, tooling and safety requirements. Product brands shown are selectable integration platforms.
