M-810-190-20B

The FANUC M‑810/190‑20B is a high‑force 6‑axis robot with a 190 kg payload, built for precise heavy machining and laser applications.

Request Integration Quote Official Product Link

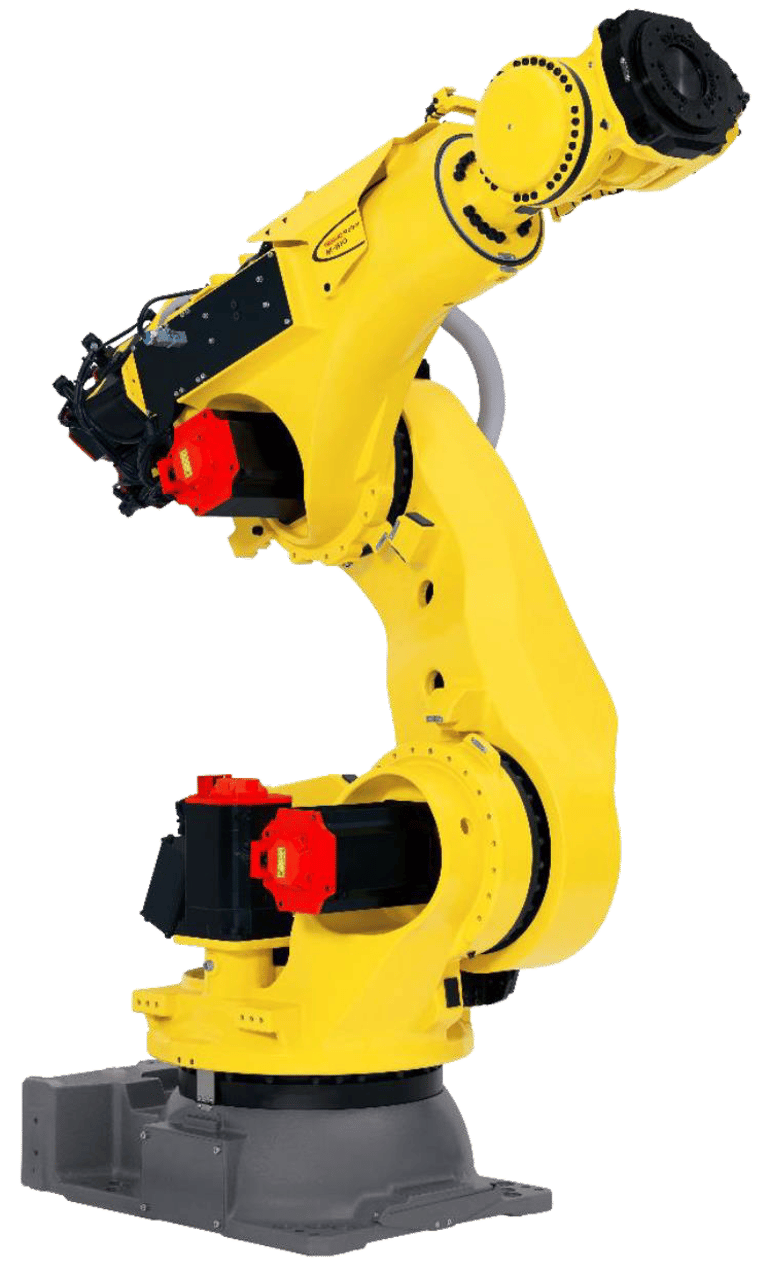

FANUC M-810-190-20B robot for automation integration

Image source

TECHNICAL OVERVIEW

Integration specifications.

Brand: FANUC
Model: M-810-190-20B
Robot Type: Articulated Robot
Payload: 190 kg
Reach: 2040 mm
Axes: 6
Repeatability: ±0.02 mm
Mounting Method: Contact us for detailed specification
Controller: R-50iA
Protection Rating: Contact us for detailed specification
Application: Handling, Machine Tending

Additional Specification

Controller Series: R-50iA
Axes: 6
Max Payload: 190 kg
Mounting Method: Floor
Repeatability: ±0.02 mm
Reach: 2040 mm
Mechanical Weight: 1360 kg
Average Power Consumption: 3 kW
J1 Motion Range: 330°
J2 Motion Range: 171°
J3 Motion Range: 297°
J4 Motion Range: 306°
J5 Motion Range: 240°
J6 Motion Range: 720°
J1 Speed: 100°/s
J2 Speed: 80°/s
J3 Speed: 80°/s
J4 Speed: 120°/s
J5 Speed: 115°/s
J6 Speed: 200°/s
J4 Moment / Inertia: 1200/200
J5 Moment / Inertia: 1200/200
J6 Moment / Inertia: 630/180
Body Standard / Optional: IP54 / IP56
Wrist & J3 Arm: IP67

BEST FOR

Recommended integration applications.

Handling, Machine Tending

Selection note

Final robot selection depends on process, payload, reach, cycle time, environment, tooling and safety requirements. Product brands shown are selectable integration platforms.
