M-810-270-27B

FANUC M‑810/270‑27B delivers high payload strength, precision, and reach for advanced machining and heavy-duty industrial automation applications.

Request Integration Quote Official Product Link

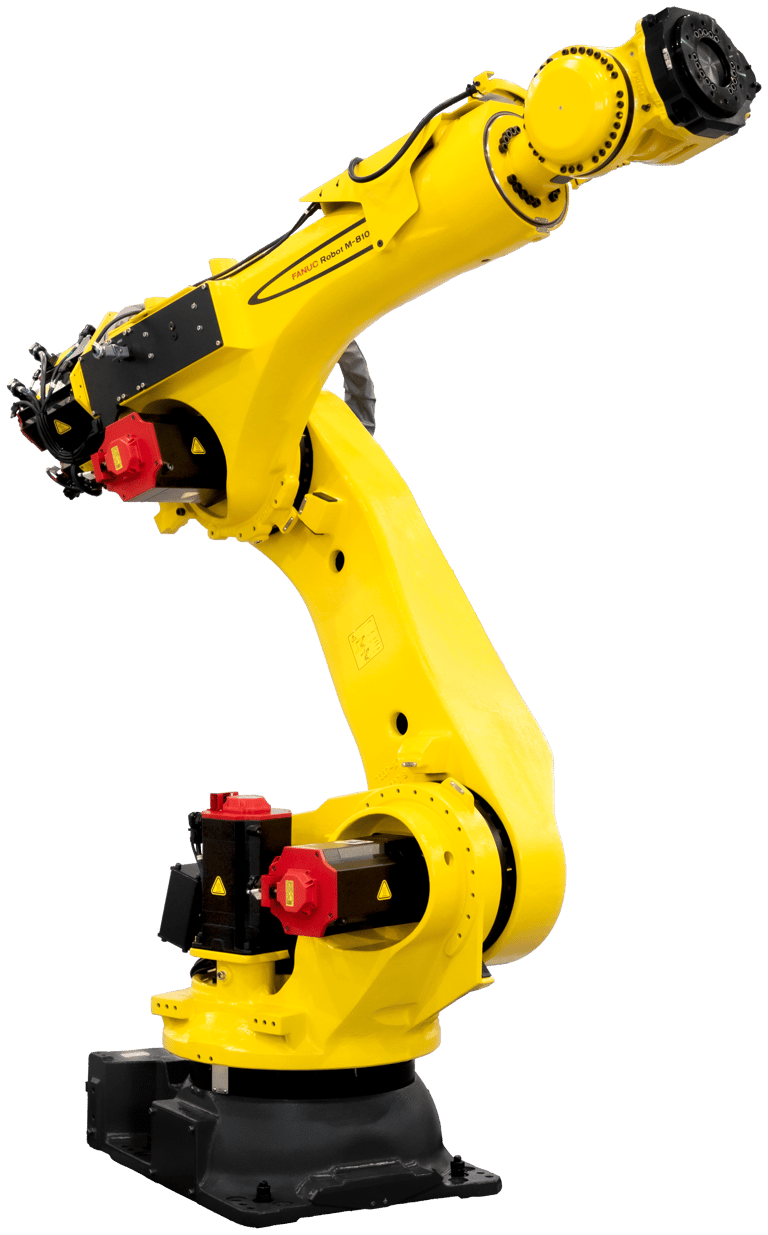

FANUC M-810-270-27B robot for automation integration

Image source

TECHNICAL OVERVIEW

Integration specifications.

Brand: FANUC
Model: M-810-270-27B
Robot Type: Articulated Robot
Payload: 270 kg
Reach: 2687 mm
Axes: 6
Repeatability: ±0.03 mm
Mounting Method: Contact us for detailed specification
Controller: R-50iA
Protection Rating: Contact us for detailed specification
Application: Handling, Machine Tending

Additional Specification

Controller Series: R-50iA
Axes: 6
Max Payload: 270 kg
Mounting Method: Floor
Repeatability: ±0.03 mm
Reach: 2687 mm
Mechanical Weight: 1430 kg
Average Power Consumption: 3 kW
J1 Motion Range: 330°
J2 Motion Range: 171°
J3 Motion Range: 312°
J4 Motion Range: 306°
J5 Motion Range: 240°
J6 Motion Range: 720°
J1 Speed: 100°/s
J2 Speed: 80°/s
J3 Speed: 80°/s
J4 Speed: 120°/s
J5 Speed: 115°/s
J6 Speed: 200°/s
J4 Moment / Inertia: 1730/320
J5 Moment / Inertia: 1730/320
J6 Moment / Inertia: 900/230
Body Standard / Optional: IP54 / IP56
Wrist & J3 Arm: IP67

BEST FOR

Recommended integration applications.

Handling, Machine Tending

Selection note

Final robot selection depends on process, payload, reach, cycle time, environment, tooling and safety requirements. Product brands shown are selectable integration platforms.
