M-900-330F-32B

The FANUC M-900/330F-32B is a long arm heavy payload 6 axis robot with 330 kg payload ideal for heavy spot welding and material handling application like…

Request Integration Quote Official Product Link

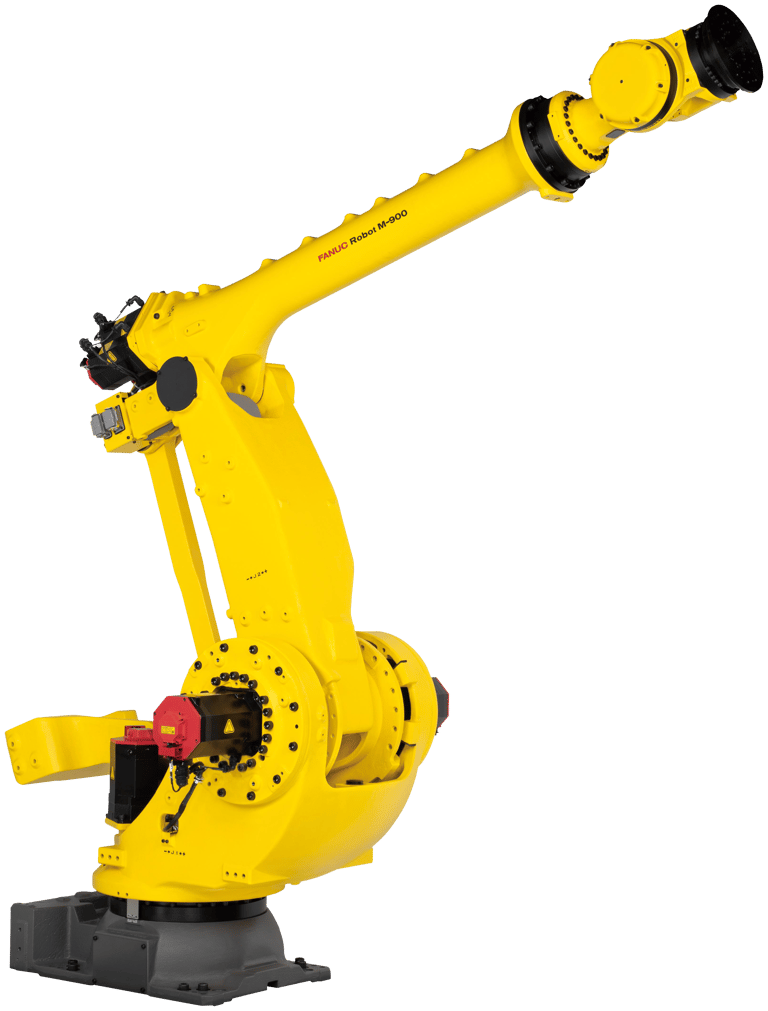

FANUC M-900-330F-32B robot for automation integration

Image source

TECHNICAL OVERVIEW

Integration specifications.

Brand: FANUC
Model: M-900-330F-32B
Robot Type: Articulated Robot
Payload: 330 kg
Reach: 3203 mm
Axes: 6
Repeatability: ±0.1 mm
Mounting Method: Contact us for detailed specification
Controller: R-50iA
Protection Rating: Contact us for detailed specification
Application: Handling, Machine Tending

Additional Specification

Controller Series: R-50iA
Axes: 6
Max Payload: 330 kg
Mounting Method: Floor
Repeatability: ±0.1 mm
Reach: 3203 mm
Mechanical Weight: 1780 kg
Average Power Consumption: 3 kW
J1 Motion Range: 370°
J2 Motion Range: 136°
J3 Motion Range: 164°
J4 Motion Range: 720°
J5 Motion Range: 250°
J6 Motion Range: 720°
J1 Speed: 100°/s
J2 Speed: 85°/s
J3 Speed: 85°/s
J4 Speed: 90°/s
J5 Speed: 85°/s
J6 Speed: 165°/s
J4 Moment / Inertia: 2205/340
J5 Moment / Inertia: 2205/340
J6 Moment / Inertia: 1200/220
Body Standard / Optional: IP54 / IP56
Wrist & J3 Arm: IP67

BEST FOR

Recommended integration applications.

Handling, Machine Tending

Selection note

Final robot selection depends on process, payload, reach, cycle time, environment, tooling and safety requirements. Product brands shown are selectable integration platforms.
