M-900iB/280

The FANUC M-900iB/280 is a 6 axis heavy payload robot with 280 kg payload ideally suited to operations where pressure is applied to the tool and accuracy…

Request Integration Quote Official Product Link

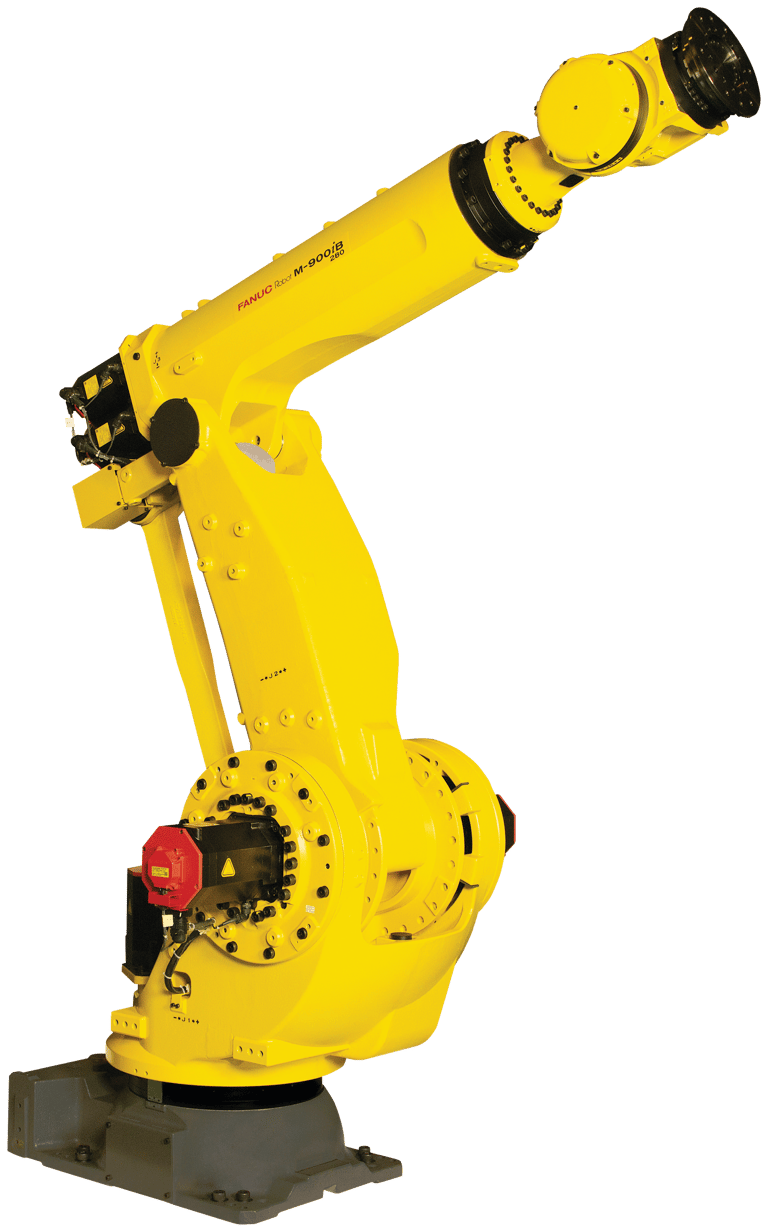

FANUC M-900iB/280 robot for automation integration

Image source

TECHNICAL OVERVIEW

Integration specifications.

Brand: FANUC
Model: M-900iB/280
Robot Type: Articulated Robot
Payload: 280 kg
Reach: 2655 mm
Axes: 6
Repeatability: ±0.1 mm
Mounting Method: Contact us for detailed specification
Controller: R-30iB Plus
Protection Rating: Contact us for detailed specification
Application: Handling, Machine Tending

Additional Specification

Controller Series: R-30iB Plus
Axes: 6
Max Payload: 280 kg
Mounting Method: Floor / Angle / Inverted
Repeatability: ±0.1 mm
Reach: 2655 mm
Mechanical Weight: 1700 kg
Average Power Consumption: 3 kW
J1 Motion Range: 370°
J2 Motion Range: 151°
J3 Motion Range: 224°
J4 Motion Range: 720°
J5 Motion Range: 250°
J6 Motion Range: 720°
J1 Speed: 110°/s
J2 Speed: 105°/s
J3 Speed: 100°/s
J4 Speed: 110°/s
J5 Speed: 110°/s
J6 Speed: 180°/s
J4 Moment / Inertia: 1960/460
J5 Moment / Inertia: 1960/460
J6 Moment / Inertia: 1050/360
Body Standard / Optional: IP54 / IP56
Wrist & J3 Arm: IP67

BEST FOR

Recommended integration applications.

Handling, Machine Tending

Selection note

Final robot selection depends on process, payload, reach, cycle time, environment, tooling and safety requirements. Product brands shown are selectable integration platforms.
