M-900iB/280L

FANUC M‑900iB/280L is a long‑arm 6‑axis robot with a 280 kg payload, ideal for precise handling of heavy parts, layer palletizing and heavy‑duty spot…

Request Integration Quote Official Product Link

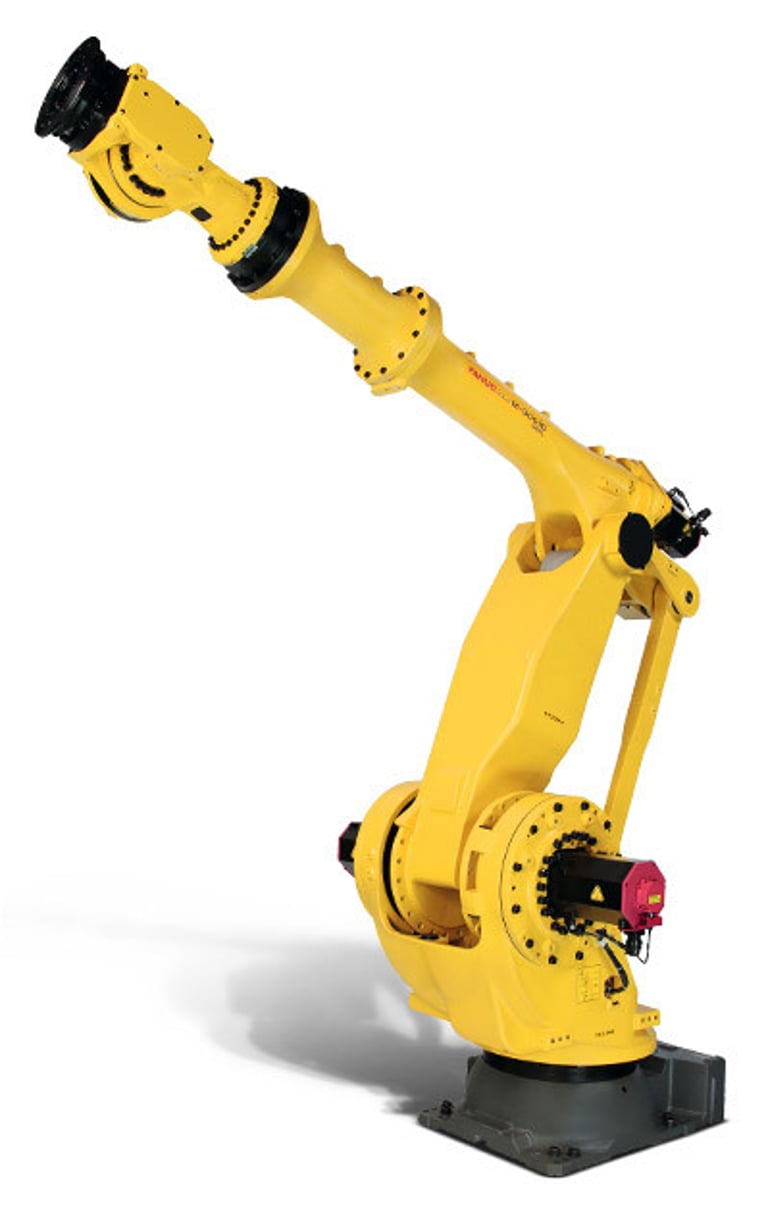

FANUC M-900iB/280L robot for automation integration

Image source

TECHNICAL OVERVIEW

Integration specifications.

Brand: FANUC
Model: M-900iB/280L
Robot Type: Articulated Robot
Payload: 280 kg
Reach: 3103 mm
Axes: 6
Repeatability: ±0.10 mm
Mounting Method: Contact us for detailed specification
Controller: R-30iB Plus
Protection Rating: Contact us for detailed specification
Application: Handling, Machine Tending

Additional Specification

Controller Series: R-30iB Plus
Axes: 6
Max Payload: 280 kg
Mounting Method: Floor / Angle / Inverted
Repeatability: ±0.10 mm
Reach: 3103 mm
Mechanical Weight: 1600 kg
Average Power Consumption: 3 kW
J1 Motion Range: 370°
J2 Motion Range: 151°
J3 Motion Range: 224°
J4 Motion Range: 720°
J5 Motion Range: 250°
J6 Motion Range: 720°
J1 Speed: 110°/s
J2 Speed: 105°/s
J3 Speed: 100°/s
J4 Speed: 125°/s
J5 Speed: 125°/s
J6 Speed: 205°/s
J4 Moment / Inertia: 1700/340
J5 Moment / Inertia: 1700/340
J6 Moment / Inertia: 950/260
Body Standard / Optional: IP54 / IP56
Wrist & J3 Arm: IP67

BEST FOR

Recommended integration applications.

Handling, Machine Tending

Selection note

Final robot selection depends on process, payload, reach, cycle time, environment, tooling and safety requirements. Product brands shown are selectable integration platforms.
