M-900iB/400L

The FANUC M-900iB/400L is a long arm 6 axis heavy payload robot with 400 kg payload for processes requiring heavy-weight handling within a wider work…

Request Integration Quote Official Product Link

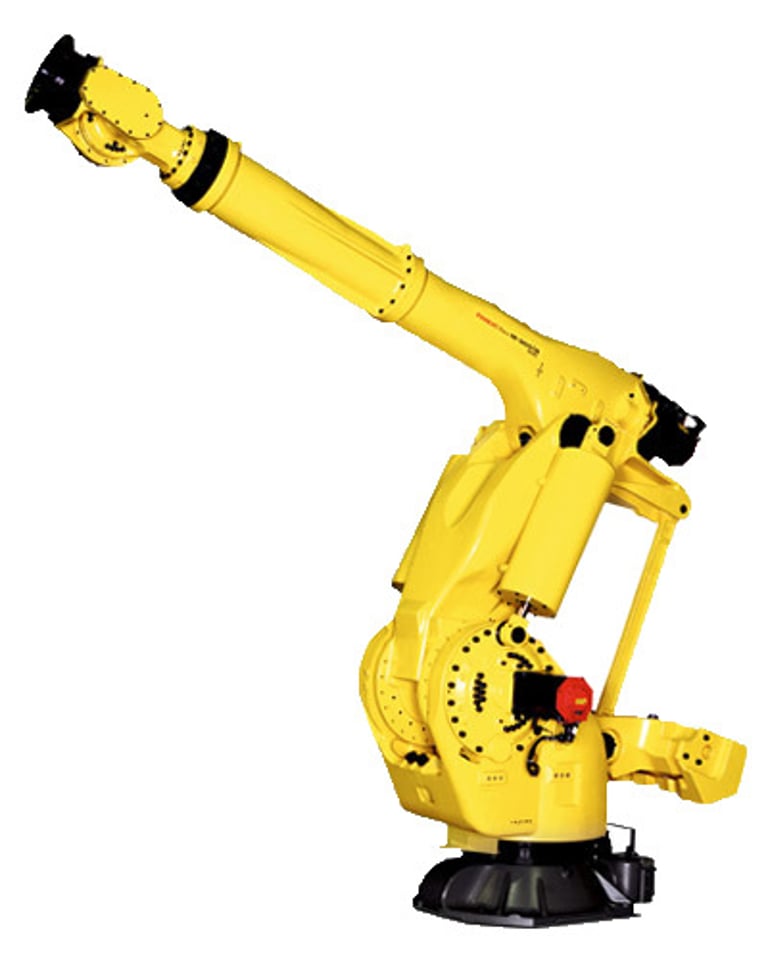

FANUC M-900iB/400L robot for automation integration

Image source

TECHNICAL OVERVIEW

Integration specifications.

Brand: FANUC
Model: M-900iB/400L
Robot Type: Articulated Robot
Payload: 400 kg
Reach: 3704 mm
Axes: 6
Repeatability: ±0.10 mm
Mounting Method: Contact us for detailed specification
Controller: R-30iB Plus
Protection Rating: Contact us for detailed specification
Application: Handling, Machine Tending

Additional Specification

Controller Series: R-30iB Plus
Axes: 6
Max Payload: 400 kg
Mounting Method: Floor
Repeatability: ±0.10 mm
Reach: 3704 mm
Mechanical Weight: 3150 kg
Average Power Consumption: 5 kW
J1 Motion Range: 360°
J2 Motion Range: 154°
J3 Motion Range: 160°
J4 Motion Range: 720°
J5 Motion Range: 244°
J6 Motion Range: 720°
J1 Speed: 80°/s
J2 Speed: 80°/s
J3 Speed: 80°/s
J4 Speed: 100°/s
J5 Speed: 100°/s
J6 Speed: 160°/s
J4 Moment / Inertia: 2744/1098
J5 Moment / Inertia: 2744/1098
J6 Moment / Inertia: 1725/444
Body Standard / Optional: IP54 / IP56
Wrist & J3 Arm: IP67

BEST FOR

Recommended integration applications.

Handling, Machine Tending

Selection note

Final robot selection depends on process, payload, reach, cycle time, environment, tooling and safety requirements. Product brands shown are selectable integration platforms.
