M-900iB/700

The FANUC M-900iB/700 is a heavy payload 6 axis robot with 700 kg payload perfectly cut out for the kind of heavy loading, unloading and tending…

Request Integration Quote Official Product Link

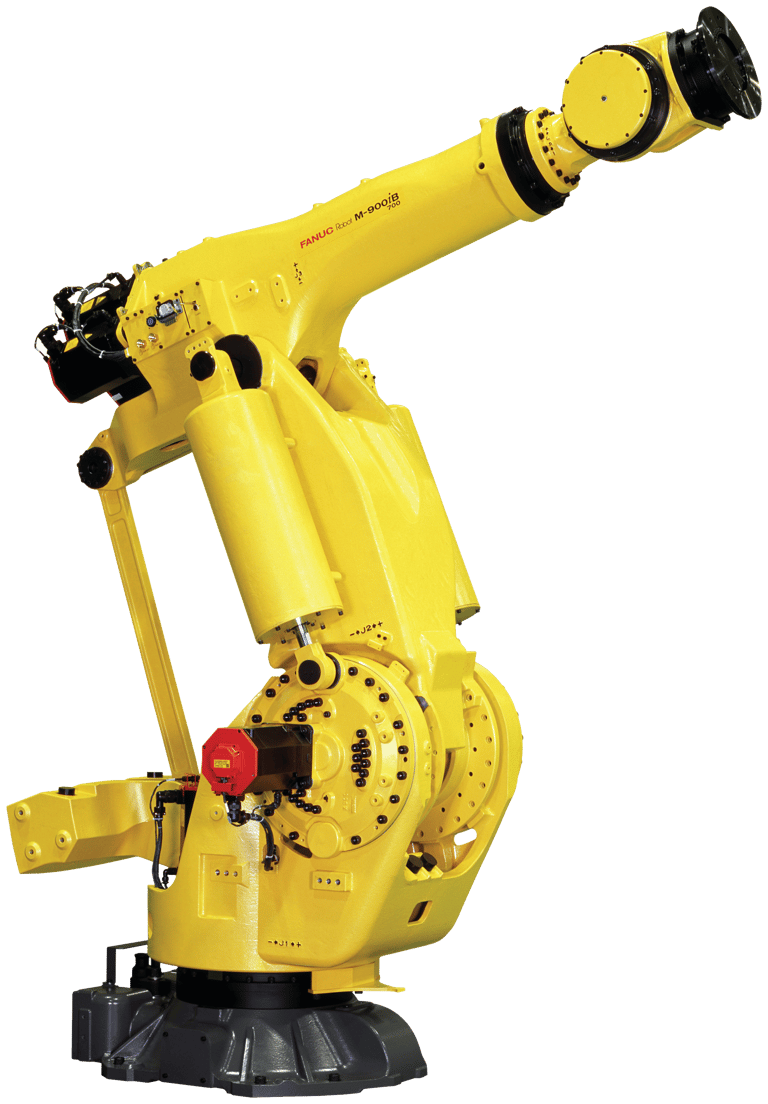

FANUC M-900iB/700 robot for automation integration

Image source

TECHNICAL OVERVIEW

Integration specifications.

Brand: FANUC
Model: M-900iB/700
Robot Type: Articulated Robot
Payload: 700 kg
Reach: 2832 mm
Axes: 6
Repeatability: ±0.10 mm
Mounting Method: Contact us for detailed specification
Controller: R-30iB Plus
Protection Rating: Contact us for detailed specification
Application: Handling, Machine Tending

Additional Specification

Controller Series: R-30iB Plus
Axes: 6
Max Payload: 700 kg
Mounting Method: Floor
Repeatability: ±0.10 mm
Reach: 2832 mm
Mechanical Weight: 2800 kg
Average Power Consumption: 5 kW
J1 Motion Range: 360°
J2 Motion Range: 154°
J3 Motion Range: 160°
J4 Motion Range: 720°
J5 Motion Range: 244°
J6 Motion Range: 720°
J1 Speed: 80°/s
J2 Speed: 80°/s
J3 Speed: 80°/s
J4 Speed: 100°/s
J5 Speed: 100°/s
J6 Speed: 160°/s
J4 Moment / Inertia: 3400/1098
J5 Moment / Inertia: 3400/1098
J6 Moment / Inertia: 1725/444
Body Standard / Optional: IP54 / IP56
Wrist & J3 Arm: IP67

BEST FOR

Recommended integration applications.

Handling, Machine Tending

Selection note

Final robot selection depends on process, payload, reach, cycle time, environment, tooling and safety requirements. Product brands shown are selectable integration platforms.
