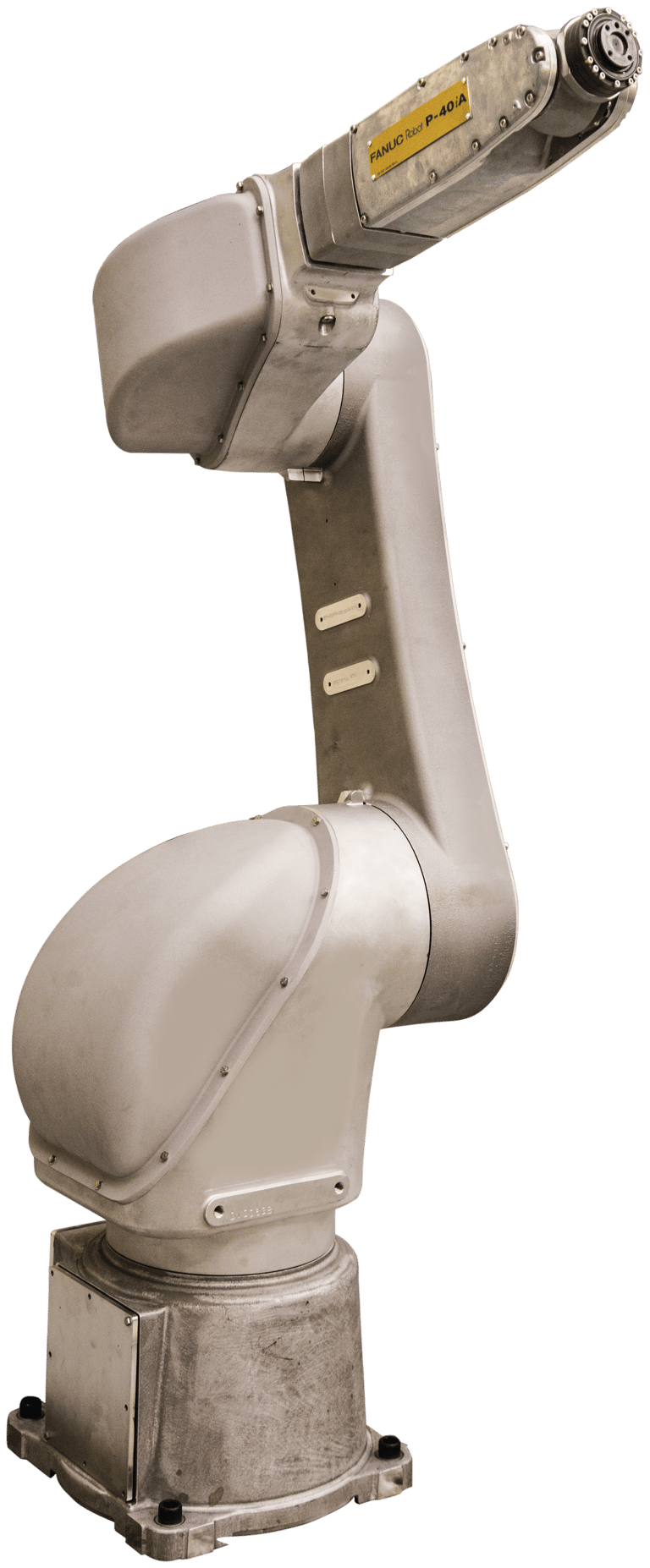

FANUCP-40iA
The FANUC P-40iA is an extremely flexible paint robot that easily adapts to small lot sizes, new styles and modifications.
TECHNICAL OVERVIEW
Integration specifications.
- Brand
- FANUC
- Model
- P-40iA
- Robot Type
- Painting Robot
- Payload
- 5 kg
- Reach
- 1300 mm
- Axes
- 6
- Repeatability
- ±0.03 mm
- Mounting Method
- Contact us for detailed specification
- Controller
- R-30iB Plus
- Protection Rating
- Contact us for detailed specification
- Application
- Painting, Spraying
Additional Specification
Controller Series: R-30iB Plus Axes: 6 Max Payload: 5 kg Mounting Method: Floor / Angle / Inverted Repeatability: ±0.03 mm Reach: 1300 mm Mechanical Weight: 110 kg J1 Motion Range: 180° J2 Motion Range: 140° J3 Motion Range: 283° J4 Motion Range: 190° J5 Motion Range: 120° J6 Motion Range: 360° J1 Speed: 220°/s J2 Speed: 190°/s J3 Speed: 240°/s J4 Speed: 450°/s J5 Speed: 450°/s J6 Speed: 720°/s J4 Moment / Inertia: 11.9/.3 J5 Moment / Inertia: 11.9/.3 J6 Moment / Inertia: 6.7/.1 Body Standard / Optional: IP67 Wrist & J3 Arm: IP67
BEST FOR
Recommended integration applications.
Painting, Spraying
Selection note
Final robot selection depends on process, payload, reach, cycle time, environment, tooling and safety requirements. Product brands shown are selectable integration platforms.
