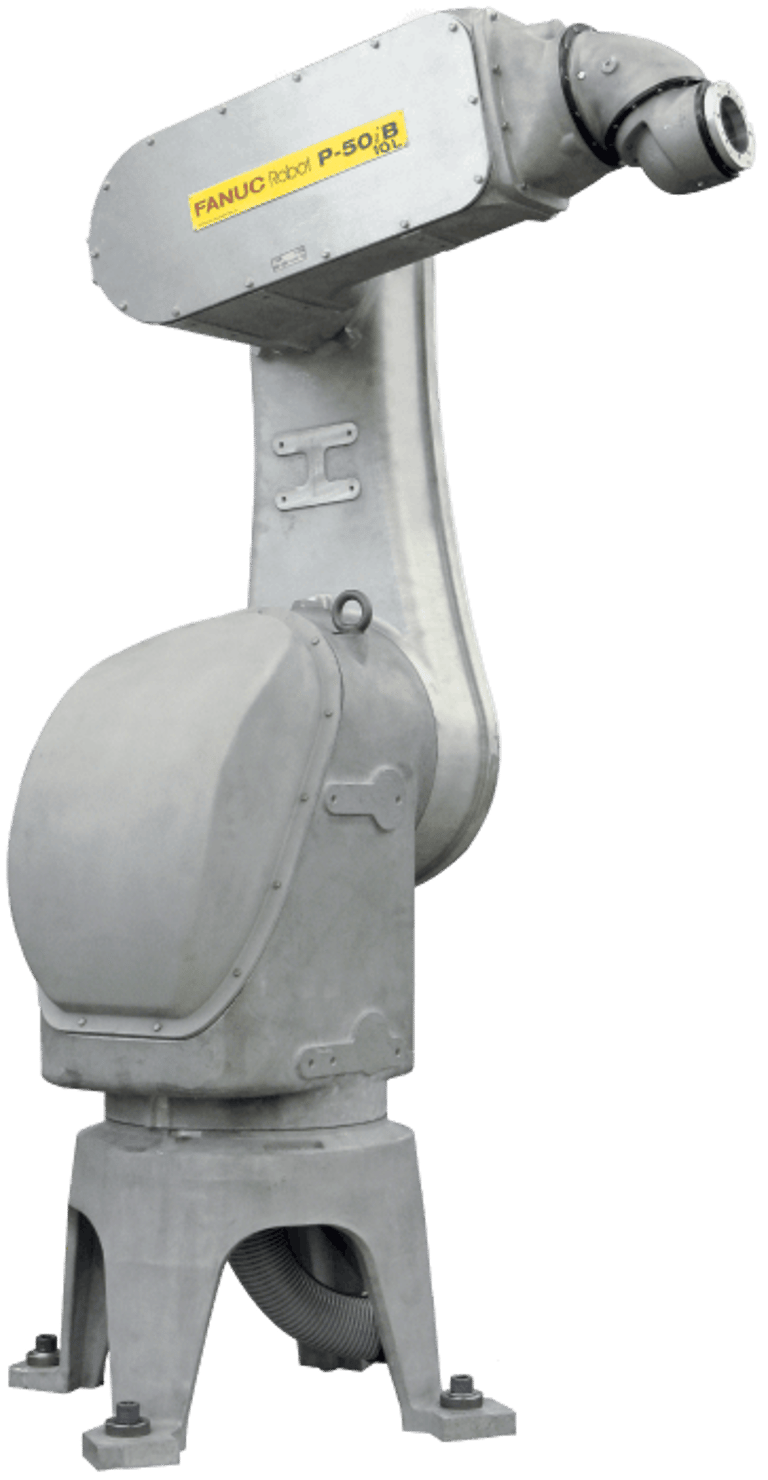

FANUCP-50iB/10L
The FANUC P-50iB is an ultra compact, high reach paint robot that provides a reliable and precise painting and coating solution for a huge range of…
TECHNICAL OVERVIEW
Integration specifications.
- Brand
- FANUC
- Model
- P-50iB/10L
- Robot Type
- Painting Robot
- Payload
- 15 kg
- Reach
- 1800 mm
- Axes
- 6
- Repeatability
- ±0.2 mm
- Mounting Method
- Contact us for detailed specification
- Controller
- R-30iB Plus
- Protection Rating
- Contact us for detailed specification
- Application
- Painting, Spraying
Additional Specification
Controller Series: R-30iB Plus Axes: 6 Max Payload: 15 kg Mounting Method: Floor / Angle / Inverted Repeatability: ±0.2 mm Reach: 1800 mm Mechanical Weight: 364 kg J1 Motion Range: 320° J2 Motion Range: 240° J3 Motion Range: 404° J4 Motion Range: 1080° J5 Motion Range: 1080° J6 Motion Range: 1080° J1 Speed: 140°/s J2 Speed: 140°/s J3 Speed: 160°/s J4 Speed: 375°/s J5 Speed: 430°/s J6 Speed: 545°/s J4 Moment / Inertia: 43.45/1.954 J5 Moment / Inertia: 36.86/1.413 J6 Moment / Inertia: 7.67/.233
BEST FOR
Recommended integration applications.
Painting, Spraying
Selection note
Final robot selection depends on process, payload, reach, cycle time, environment, tooling and safety requirements. Product brands shown are selectable integration platforms.
