FANUCP-700iB/15

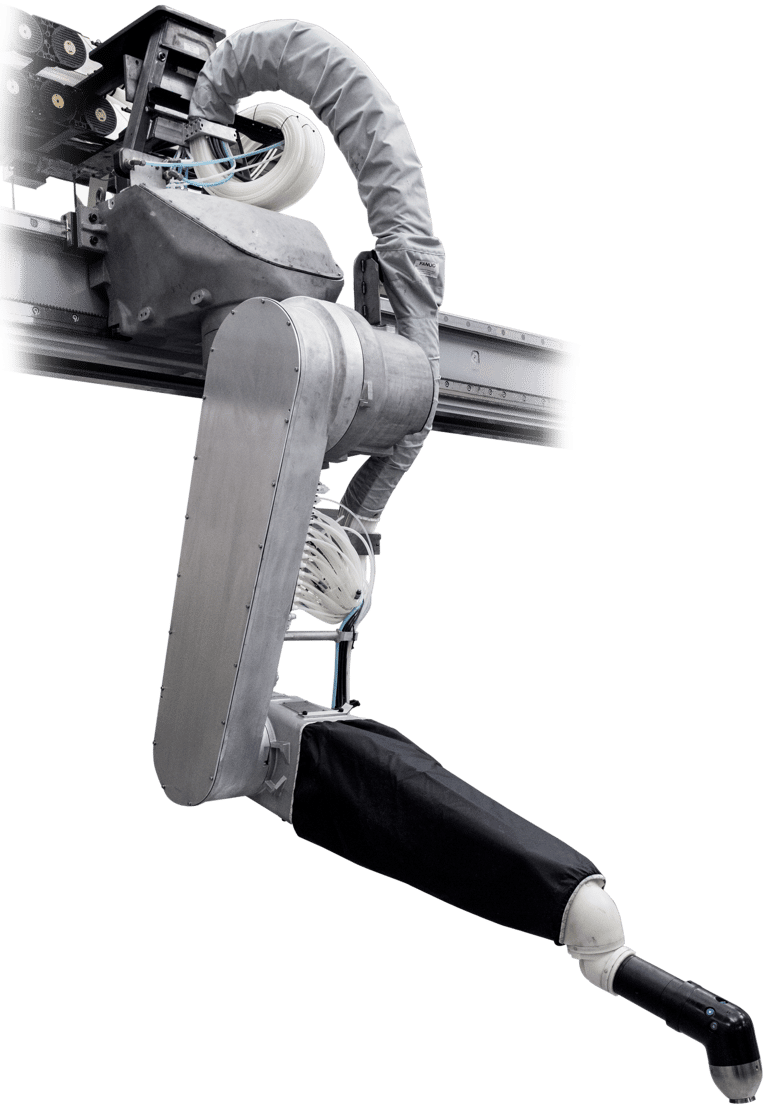

The FANUC P-700iB paint robot is an overhead rail based 7 axes industrial Paint robot. When configured properly, this robot can maximize cycle time.
TECHNICAL OVERVIEW
Integration specifications.
- Brand
- FANUC
- Model
- P-700iB/15
- Robot Type
- Painting Robot
- Payload
- 15 kg
- Reach
- 3150 mm
- Axes
- 7
- Repeatability
- ±0.10 mm
- Mounting Method
- Contact us for detailed specification
- Controller
- R-30iB Plus
- Protection Rating
- Contact us for detailed specification
- Application
- Painting, Spraying
Additional Specification
Controller Series: R-30iB Plus Axes: 7 Max Payload: 15 kg Mounting Method: Rail Repeatability: ±0.10 mm Reach: 3150 mm Mechanical Weight: 658 kg J4 Motion Range: 400° J5 Motion Range: 400° J6 Motion Range: 400° J1 Speed: 100°/s J2 Speed: 125°/s J3 Speed: 120°/s J4 Speed: 200°/s J5 Speed: 200°/s J6 Speed: 200°/s J4 Moment / Inertia: 65/3.0 J5 Moment / Inertia: 55/2.1 J6 Moment / Inertia: 11.5/.35
BEST FOR
Recommended integration applications.
Painting, Spraying
Selection note
Final robot selection depends on process, payload, reach, cycle time, environment, tooling and safety requirements. Product brands shown are selectable integration platforms.
