R-1000iA/130F

The FANUC R-1000iA/130F robot is suitable for a diversity of industries and applications. This top model of the R-1000iA series comes with a payload of…

Request Integration Quote Official Product Link

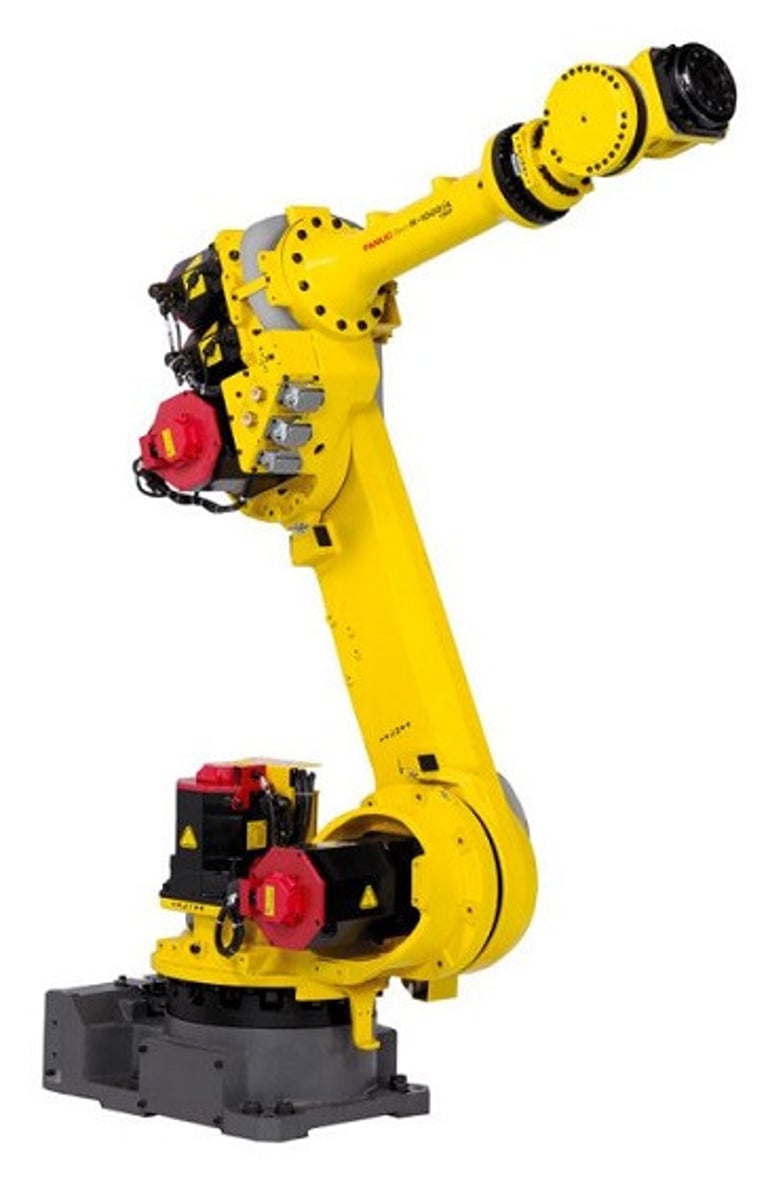

FANUC R-1000iA/130F robot for automation integration

Image source

TECHNICAL OVERVIEW

Integration specifications.

Brand: FANUC
Model: R-1000iA/130F
Robot Type: Articulated Robot
Payload: 130 kg
Reach: 2230 mm
Axes: 6
Repeatability: ±0.03 mm
Mounting Method: Contact us for detailed specification
Controller: R-30iB Plus
Protection Rating: Contact us for detailed specification
Application: Handling, Machine Tending

Additional Specification

Controller Series: R-30iB Plus
Axes: 6
Max Payload: 130 kg
Mounting Method: Floor / Inverted
Repeatability: ±0.03 mm
Reach: 2230 mm
Mechanical Weight: 675 kg
Average Power Consumption: 3 kW
J1 Motion Range: 360°
J2 Motion Range: 245°
J3 Motion Range: 360°
J4 Motion Range: 720°
J5 Motion Range: 250°
J6 Motion Range: 720°
J1 Speed: 130°/s
J2 Speed: 110°/s
J3 Speed: 120°/s
J4 Speed: 170°/s
J5 Speed: 170°/s
J6 Speed: 250°/s
J4 Moment / Inertia: 800/71
J5 Moment / Inertia: 800/71
J6 Moment / Inertia: 360/38
Body Standard / Optional: IP54 / IP56
Wrist & J3 Arm: IP67

BEST FOR

Recommended integration applications.

Handling, Machine Tending

Selection note

Final robot selection depends on process, payload, reach, cycle time, environment, tooling and safety requirements. Product brands shown are selectable integration platforms.
