R-2000-180F-27E

Compact heavy-payload robot with 180 kg capacity and 2655 mm reach, powered by the FANUC R-50iA controller for high-speed industrial automation.

Request Integration Quote Official Product Link

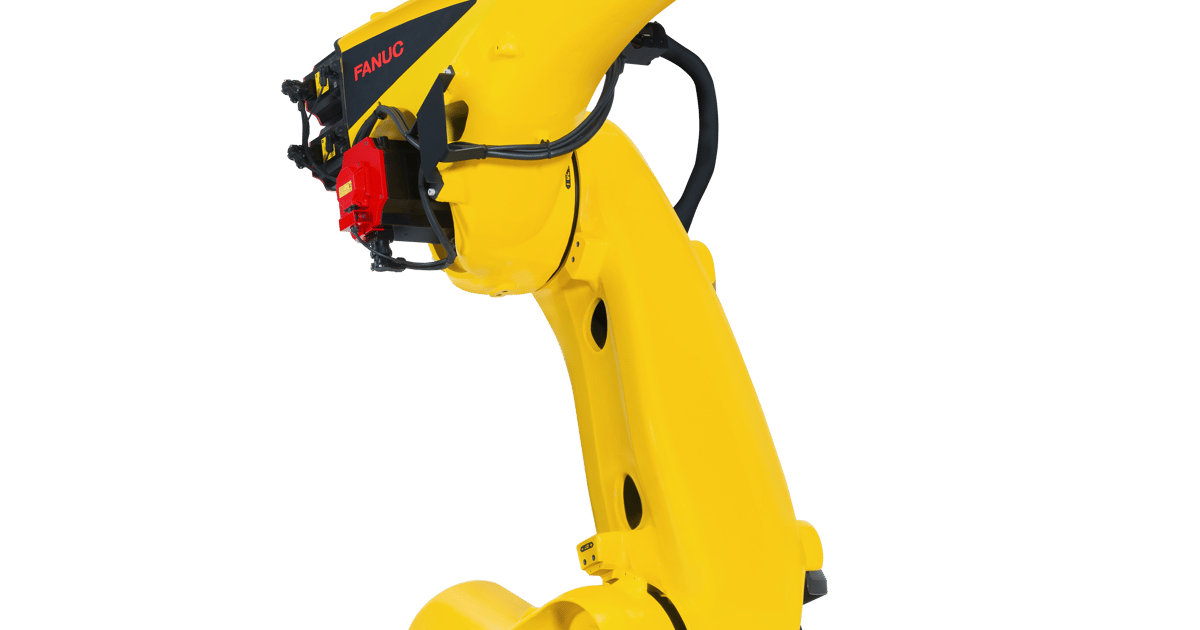

FANUC R-2000-180F-27E robot for automation integration

Image source

TECHNICAL OVERVIEW

Integration specifications.

Brand: FANUC
Model: R-2000-180F-27E
Robot Type: Articulated Robot
Payload: 180 kg
Reach: 2655 mm
Axes: 6
Repeatability: ±0.05 mm
Mounting Method: Contact us for detailed specification
Controller: R-50iA
Protection Rating: Contact us for detailed specification
Application: Handling, Machine Tending

Additional Specification

Controller Series: R-50iA
Axes: 6
Max Payload: 180 kg
Mounting Method: Floor
Repeatability: ±0.05 mm
Reach: 2655 mm
Average Power Consumption: 2.5 kW
J1 Motion Range: 370°
J2 Motion Range: 136°
J3 Motion Range: 357°
J4 Motion Range: 720°
J5 Motion Range: 250°
J6 Motion Range: 720°
J1 Speed: 130°/s
J2 Speed: 120°/s
J3 Speed: 130°/s
J4 Speed: 180°/s
J5 Speed: 180°/s
J6 Speed: 290°/s
J4 Moment / Inertia: 1160/170
J5 Moment / Inertia: 1160/170
J6 Moment / Inertia: 570/140
Body Standard / Optional: STANDARD
Wrist & J3 Arm: STANDARD

BEST FOR

Recommended integration applications.

Handling, Machine Tending

Selection note

Final robot selection depends on process, payload, reach, cycle time, environment, tooling and safety requirements. Product brands shown are selectable integration platforms.
