R-2000-225F-27E

High-capacity floor robot offering up to 240 kg payload and 2655 mm reach powered by the R-50iA controlled for heavy handling and welding tasks.

Request Integration Quote Official Product Link

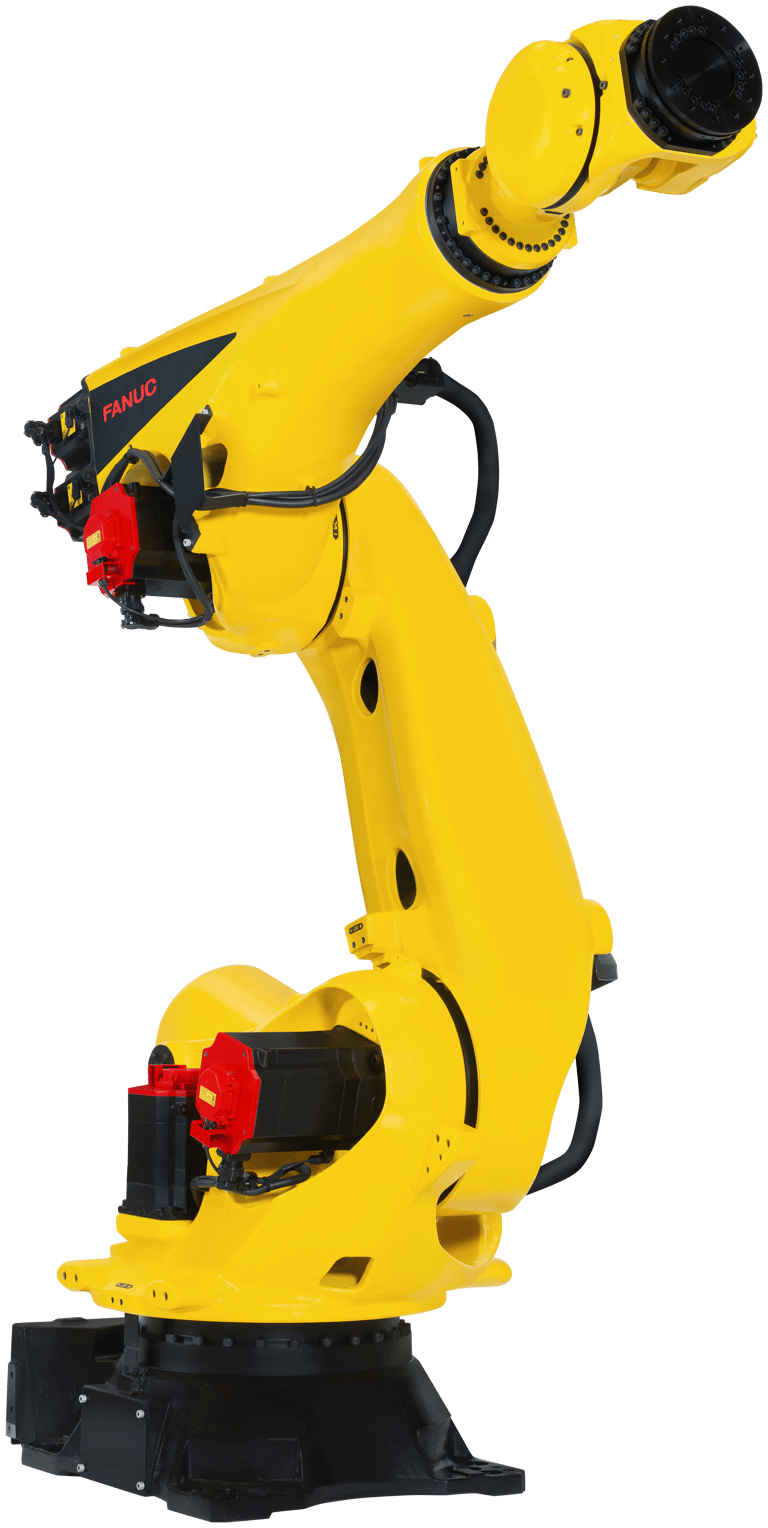

FANUC R-2000-225F-27E robot for automation integration

Image source

TECHNICAL OVERVIEW

Integration specifications.

Brand: FANUC
Model: R-2000-225F-27E
Robot Type: Articulated Robot
Payload: 225 kg
Reach: 2655 mm
Axes: 6
Repeatability: ±0.05 mm
Mounting Method: Contact us for detailed specification
Controller: R-50iA
Protection Rating: Contact us for detailed specification
Application: Handling, Machine Tending

Additional Specification

Controller Series: R-50iA
Axes: 6
Max Payload: 225 kg
Mounting Method: Floor
Repeatability: ±0.05 mm
Reach: 2655 mm
Mechanical Weight: 1105 kg
Average Power Consumption: 2.5 kW
J1 Motion Range: 370°
J2 Motion Range: 136°
J3 Motion Range: 357°
J4 Motion Range: 720°
J5 Motion Range: 250°
J6 Motion Range: 720°
J1 Speed: 120°/s
J2 Speed: 110°/s
J3 Speed: 115°/s
J4 Speed: 145°/s
J5 Speed: 145°/s
J6 Speed: 240°/s
J4 Moment / Inertia: 1590(1400)/ 250
J5 Moment / Inertia: 1590(1400)/ 250
J6 Moment / Inertia: 800/200
Wrist & J3 Arm: IP67

BEST FOR

Recommended integration applications.

Handling, Machine Tending

Selection note

Final robot selection depends on process, payload, reach, cycle time, environment, tooling and safety requirements. Product brands shown are selectable integration platforms.
